Wedge type tension Clamp, PA-3001

Wedge type tension Clamp, PA-3001(10-14)

PA-3001(10-14)

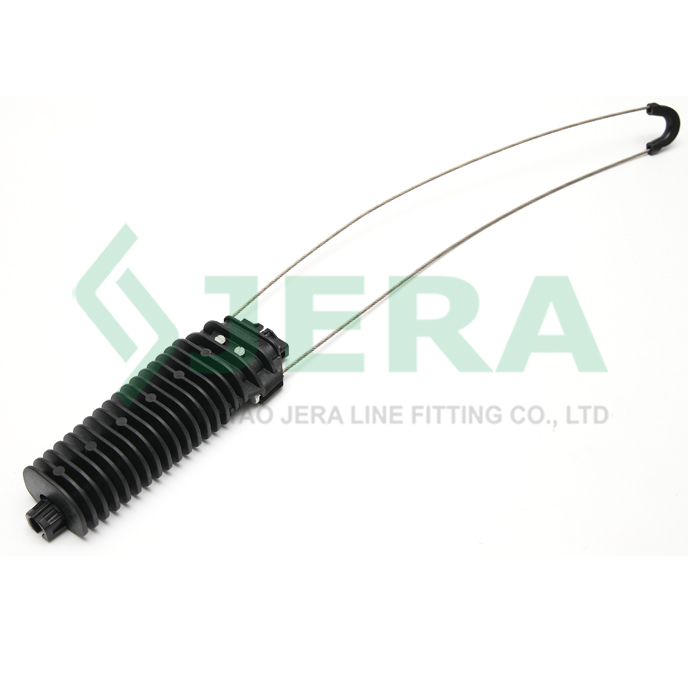

Wedge type tension Clamp, PA-3001 also called overhead tension clamp , is designed to anchor and tension adss cable in intermediate routes or dead end during outdoor overhead ftth line constructions.

Features

Cable type: Round
Cable size:10-14 mm
Span:70-200 m
MBL: 8 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Easy installation, no require additional tools
Self-adjusting wedge, no damage to cable jacket
Material: UV resistant thermoplastic and stainless steel, durable

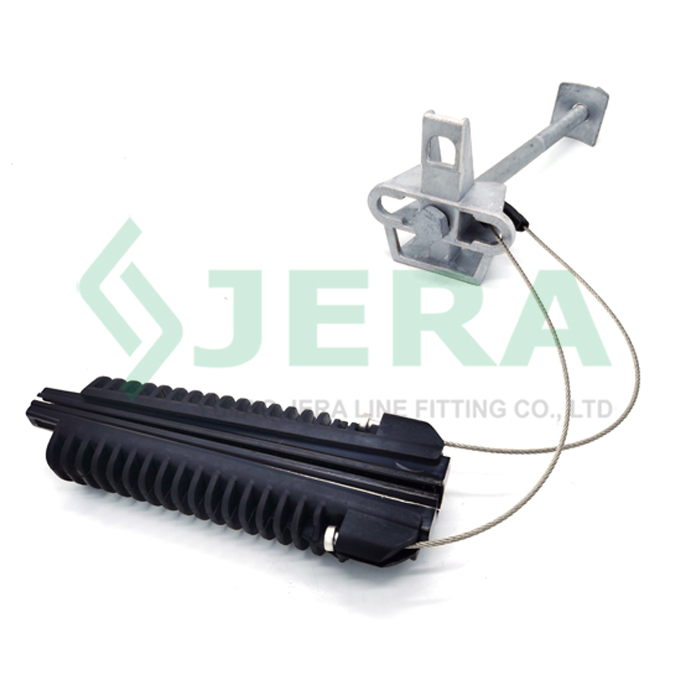

Open wire bail allow easy installation with pole brackets and hooks
Good environmental stability
Fair price

The clamp applied in:

Cable diameter: 10-14 mm

MBL, kN: 8.0

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The wire rope of the wire clamp is made of stainless steel 304. The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

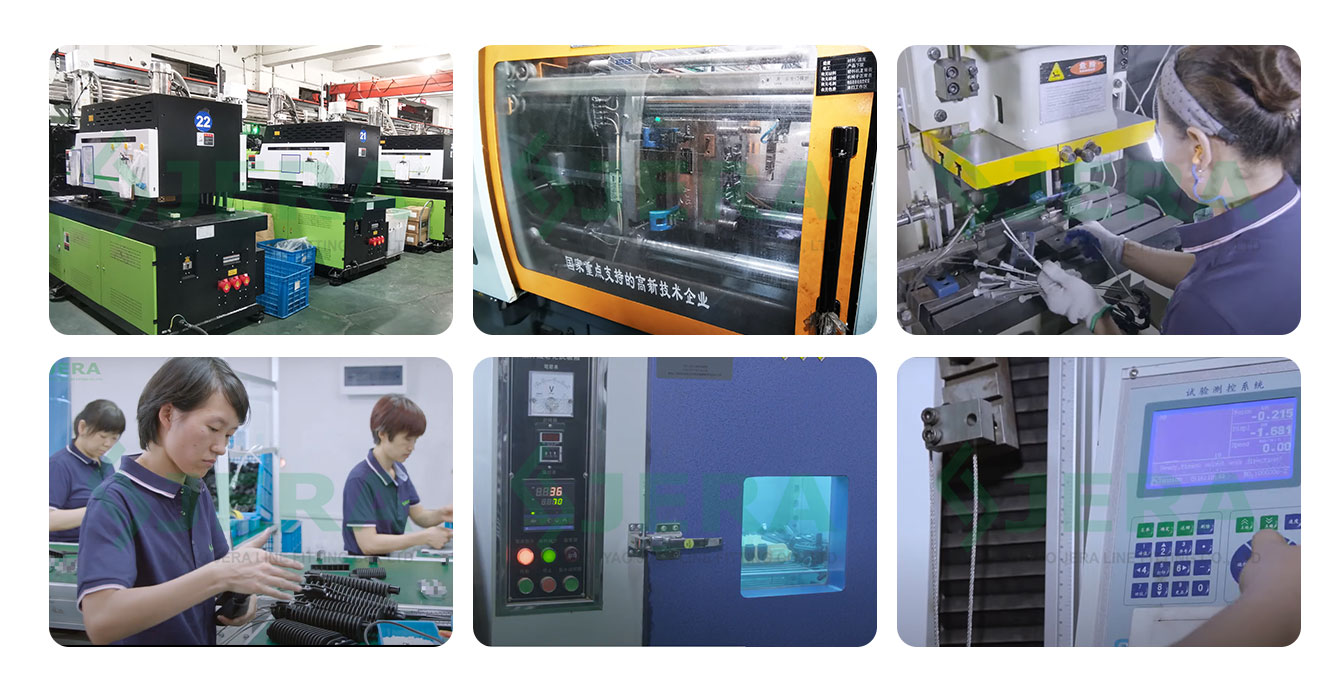

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Cable size,mm	Material	MBL,KN	Bail length,mm
PA-3001 (10-14)	Φ10-14	UV resistant plastic, stainless steel,aluminum	8.0	350
