Aluminum anchor clamp, PA-800

Aluminum anchor clamp, PA-800 (7-11mm)

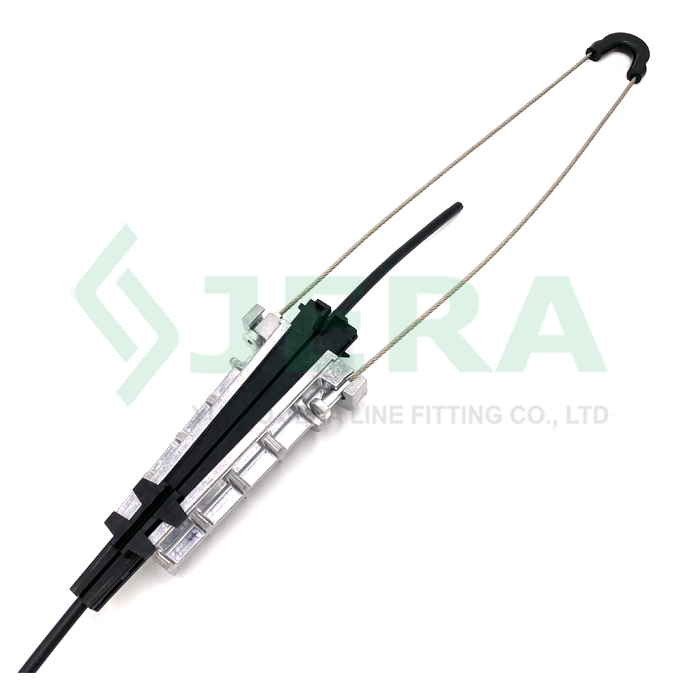

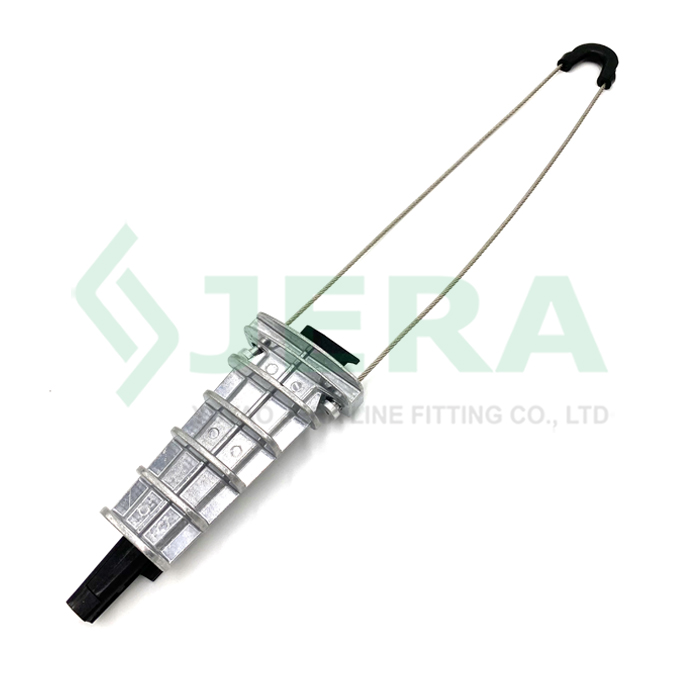

Aluminum anchor clamp PA-800 is designed to anchor or tension ADSS fiber optic cable during FTTX line constructions.

Features

Anti-drop wire bail design
Self-adjustable wedge, doesn’t cut cable jacket
Aluminum alloy cast body, stainless steel bail and UV resistant wedge,durable
High mechanical strength, up to 8KN
Excellent Environmental Stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

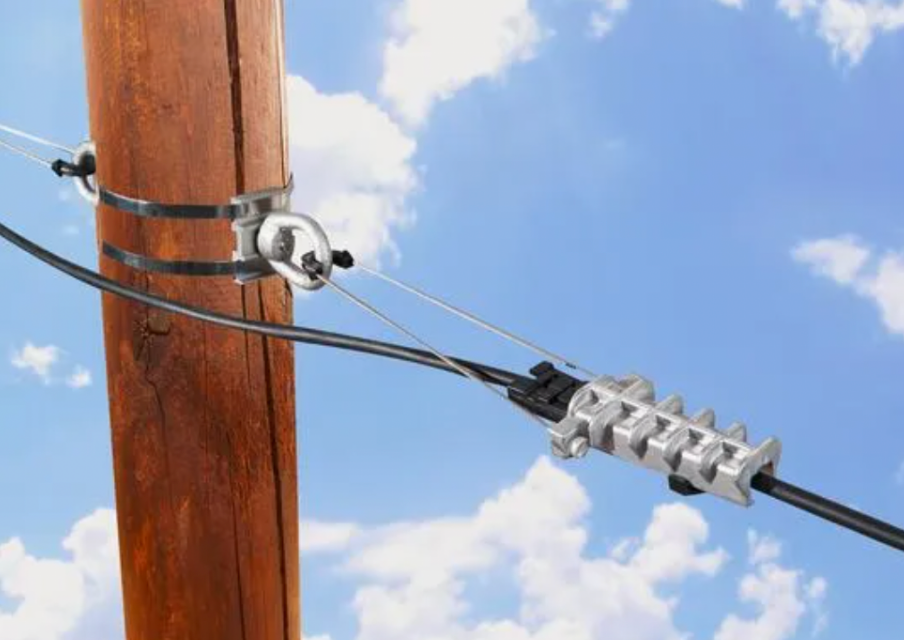

The clamp can be installed on utility poles, pole brackets, wall-mounted hooks, and other telecommunication supports in FTTH, FTTx, GPON, CATV, and broadband access network deployments. It is suitable for various application environments, including residential communities, industrial facilities, campus networks, rural broadband projects, and inter-building fiber optic connections.

Featuring a self-adjusting wedge mechanism, the PA-800 firmly grips the cable without damaging the outer sheath, helping to preserve the cable's optical performance and extend its service life. The clamp effectively reduces cable sagging and withstands environmental stresses caused by wind, vibration, ice loading, and temperature fluctuations, ensuring stable network operation over time.

Manufactured from high-strength aluminum alloy combined with UV-resistant polymer inserts and a stainless steel bail, the PA-800 offers excellent resistance to corrosion and harsh weather conditions. Its simple, tool-free installation minimizes labor time and installation costs, making it an ideal solution for telecommunication contractors and network operators seeking a reliable, durable, and cost-effective aerial ADSS cable anchoring system.

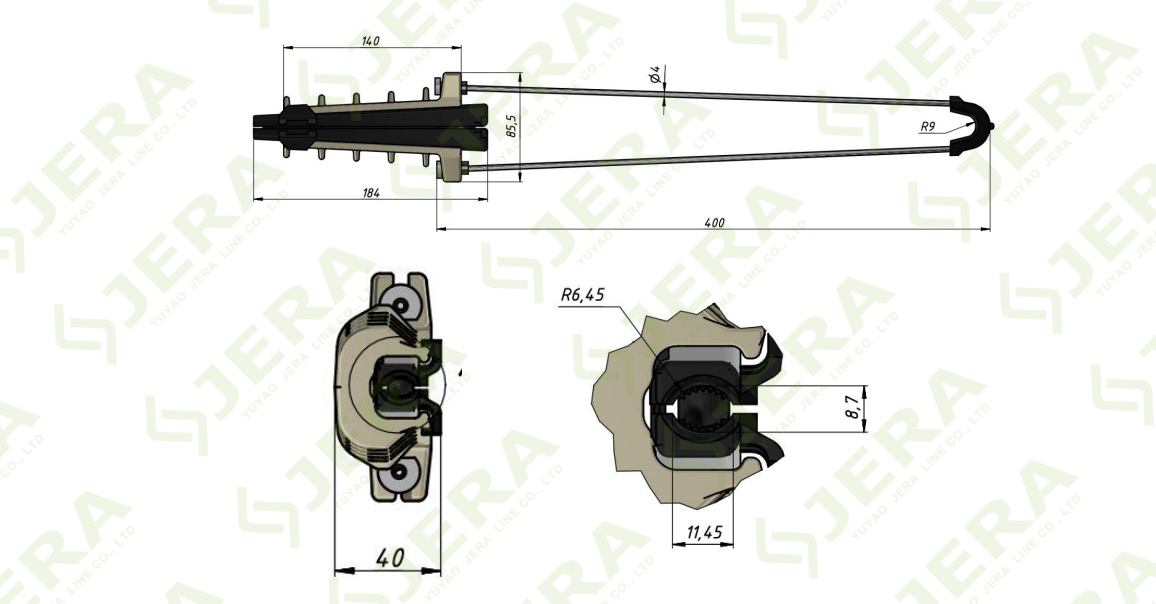

Technical specification

Product code	Electrical cable,mm ²	Fiber optic cable,mm	Material	MBL,KN
PA-800	16-35	7-11	Aluminum alloy，UV resistant plastic, stainless steel	8

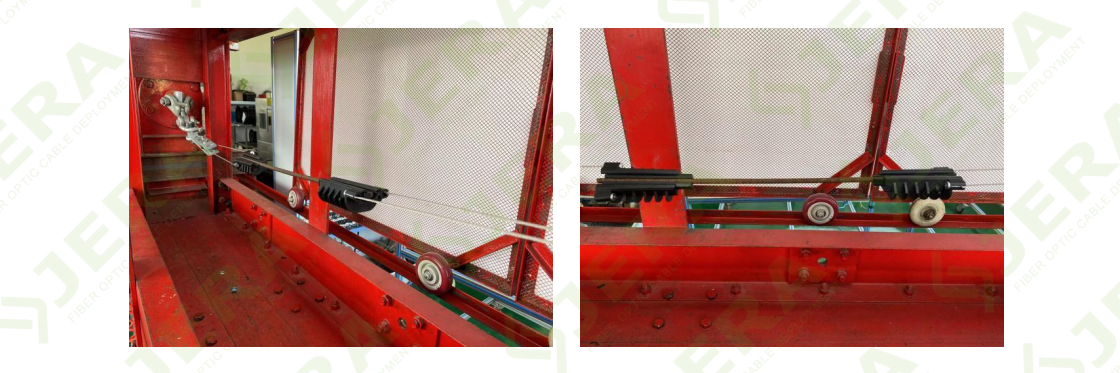

TEST

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
