Model No. :

CS

Description:

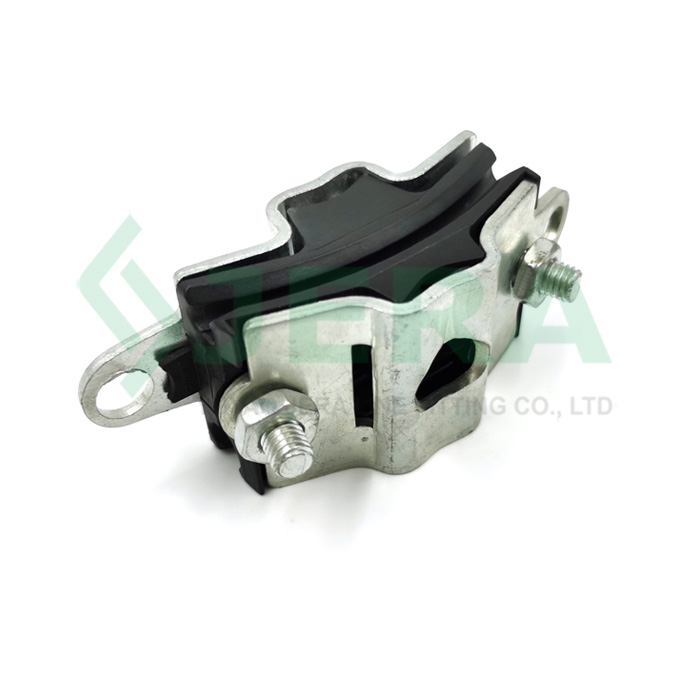

Suspension clamp CS other called figure 8 cable suspension clamp is developed to suspend or support figure-8 fiber optic cable on short spans during outdoor FTTX transmission line constructions.

    • Bracket type: Tension
    • Application: Pole
    • Span: 70-200 meters
    • MBL: 8 KN
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Double side clamp design
  • Applied in turning routes of FTTH line up to 25
  • No damage to cable jacket or insulating messenger

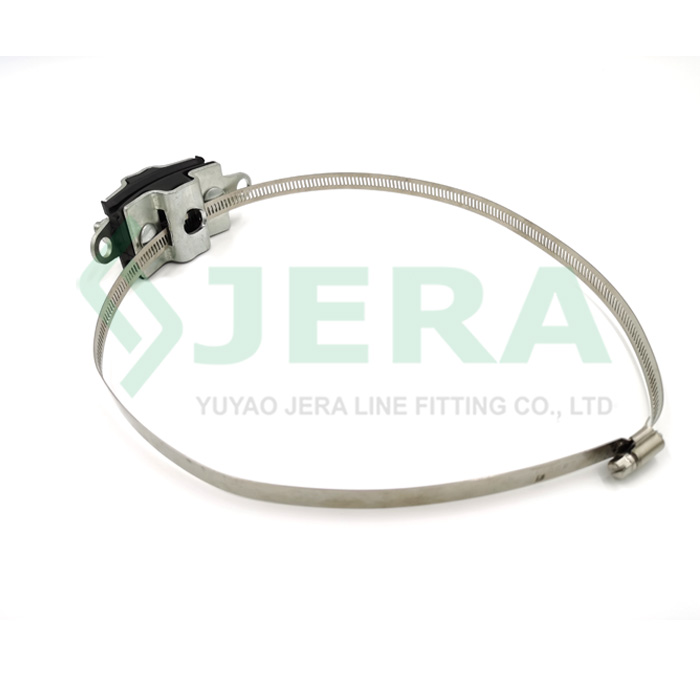

  • Can be installed with stainless steel bands, pole bolt and hooks.
  • UV resistant thermoplastic, galvanized steel material, durable
  • Excellent environmental stability
  • Competitive price
Suspension Clamp CS Suspension Clamp CS

SPECIFICATION

Suspension clamp CS other called figure 8 cable suspension clamp is developed to suspend or support figure-8 fiber optic cable on short spans during outdoor FTTX transmission line constructions.

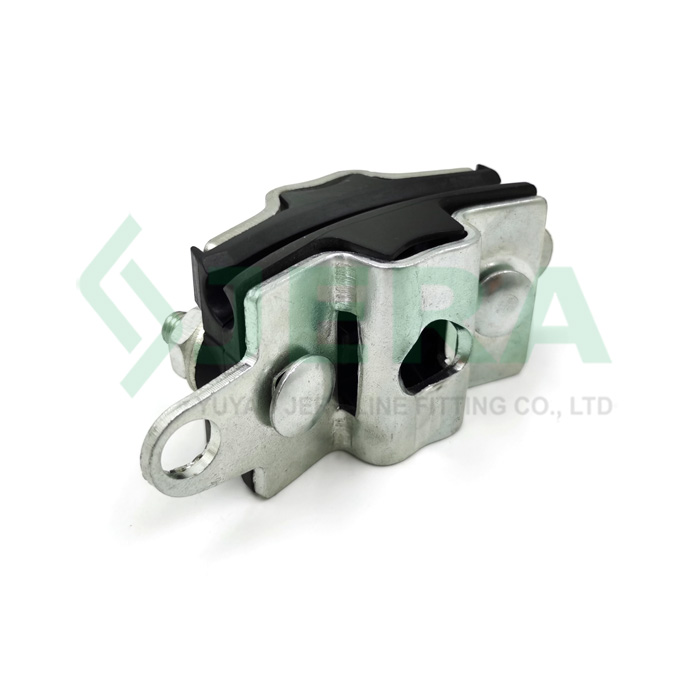

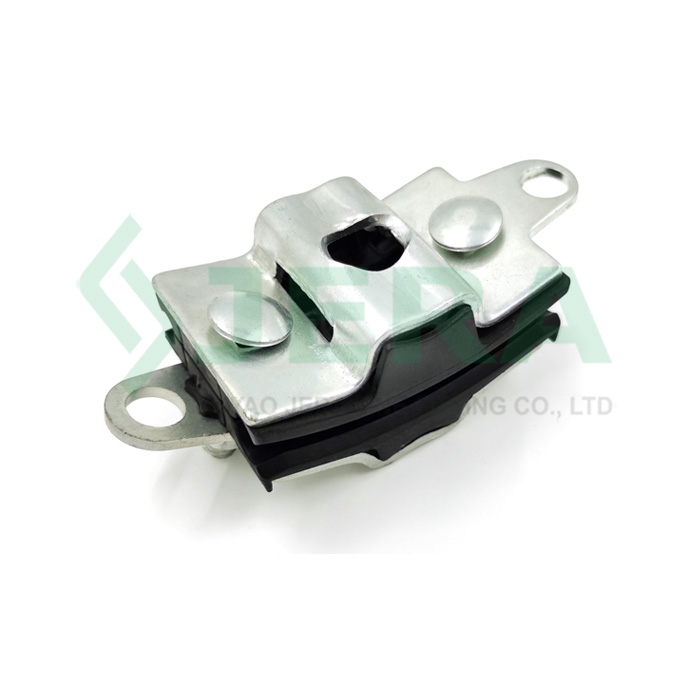

This Figure 8 Cable Clamp consists of plastic insert, metal plates and stainless steel hardware. Plastic insert is made of UV resistant thermoplastic by plastic injection technology, which is available at Jera line factory. The metal plates was processed by hot dip galvanized finish which is corrosion resistant and with high mechanical strength. It can be installed on wooden, concrete and metal poles by stainless steel straps, pole bolt which are available in jera line product range.

All of our assemblies passed a series of standard related type tests which are available in our internal laboratory, such as +70℃~-40℃Temperature and humidity cycling test, Tensile strength test, Aging test,Corrosion resistance test etc.

read more

APPLICATION

The package of this optical cable suspension clamp is simple carton box. The pallet packing method is available as well, check more details with our sales.

Jera line is a direct suspension clamp factory, operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

We offer all the fiber optical cable accessories for aerial transmission network and provide the whole kit of accessories to our customers, such as ADSS cable clamps, cable bracket, stainless steel straps, buckle, hooks, turnbuckles, spiral vibration damper, cable slack storage etc.

Welcome to contact us for further details of suspension clamp price.

read more

Manufacturing

    drop cable clamp brackets manufacture

Watch Our Factory Video

Technical specification

Product codes

Round cable diameter, mm

Messenger diameter,mm

MBL,KN

Weight,KG

Material

CS

4-5

5-9

8

0.22

UV resistant plastic & galvanized steel

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test

FAQ

  • 1. What area are you in?

    We are the factory, located in China busy in production of aerial FTTH solution consist of:

    • fiber cable,
    • pre-terminated patch cords,
    • cable clamps and brackets,
    • outdoor and indoor termination boxes, access terminals

    We produce a solution for optical distribution network ODN.



  • 2. Are you the direct manufacturer?

    Yes, we are direct factory with years of experience.

  • 3. Where is your factory located?

    Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.

  • 4. Why I should choose Jera Line?

    - We offer very competitive price.
    - We produce a solution, with suitable product recommendations.
    - We have the stable quality control system.
    - After sales product guarantee and support.
    - Our products were adjusted to work with each other to operate in a system.
    - You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
    - We are committed to long term refashions based on trust.

  • 5. Why you can offer competitive prices?

    Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/

  • 6. Why can you offer stable quality?

    Because we have quality system, find more details  https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/

  • 7. Do you offer a guarantee on your products?

    Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.

  • 8. How can I save logistics cost working with you?

    You can decrease up to 5% of your logistics cost working with us.
    Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com)

  • 9. What are the main products that you produce?

    We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.

  • 10. What's your trade term and payment terms?

    We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.

  • 11. Can you produce OEM orders?

    Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.

  • 12. Can you offer me product’s Customization and R & D?

    Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.

  • 13. What's your MOQ of new customers?

    Absence of MOQ criteria for first order.

  • 14. Can you provide free samples?

    Yes, we provide samples, which will same to the order.

  • 15. Will the quality of ordered products be the same to the sample what I have confirmed?

    Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.

  • 16. Where can I see yours’s products application?

    Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t

  • 17. How to get in touch with you?

  • 18. Where can I download your latest catalog

  • 19. Do you have global experience?

    Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
