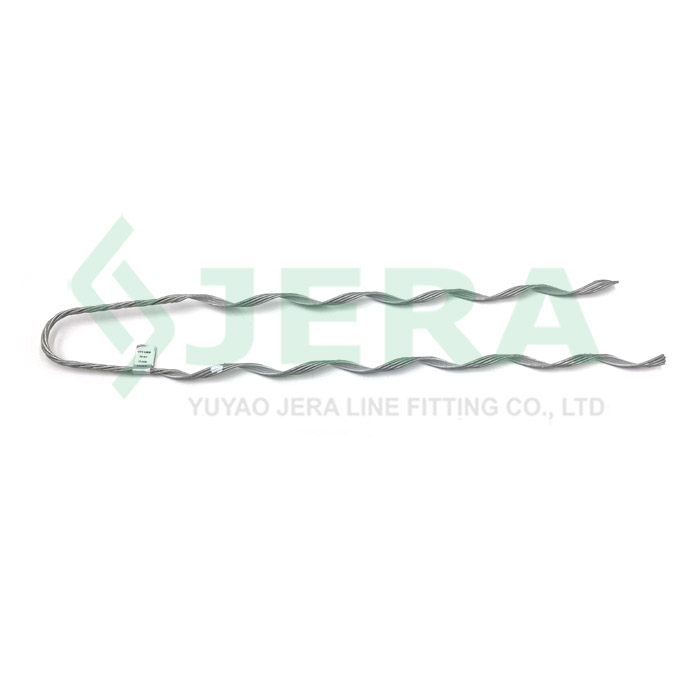

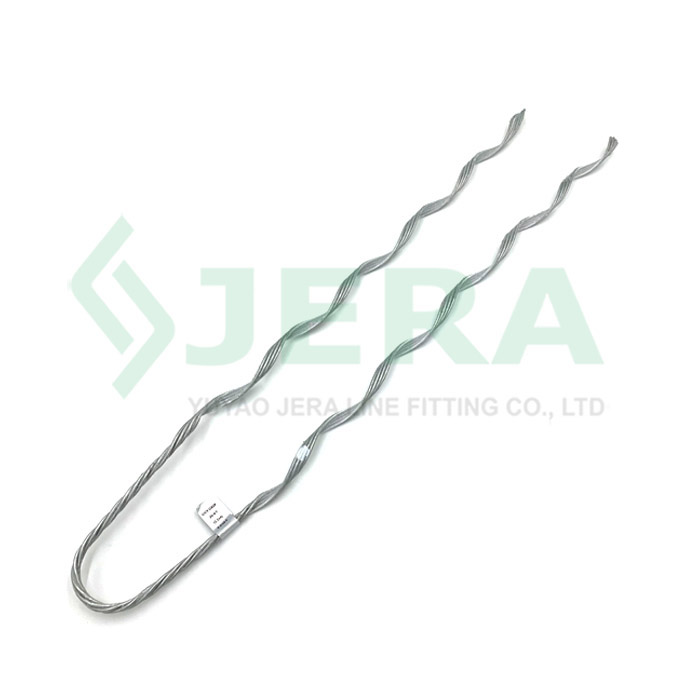

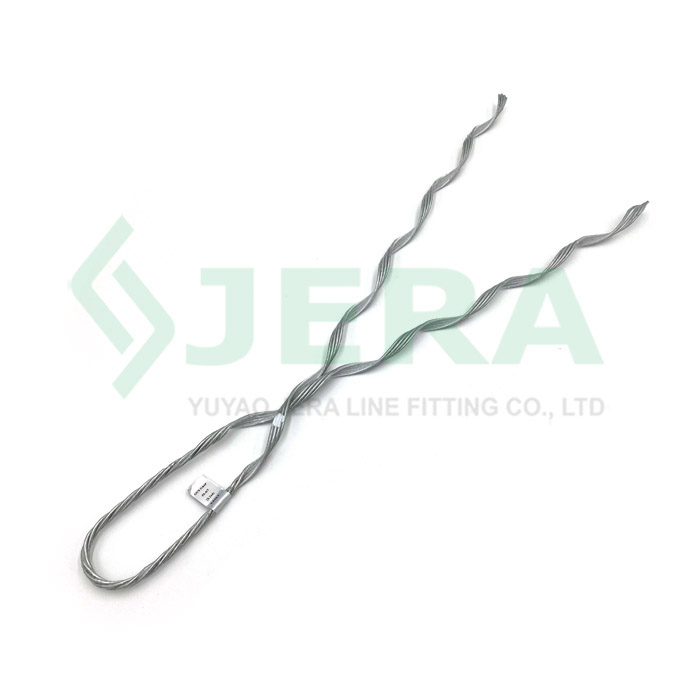

Preformed dead end cable grip 9.5-10.5mm

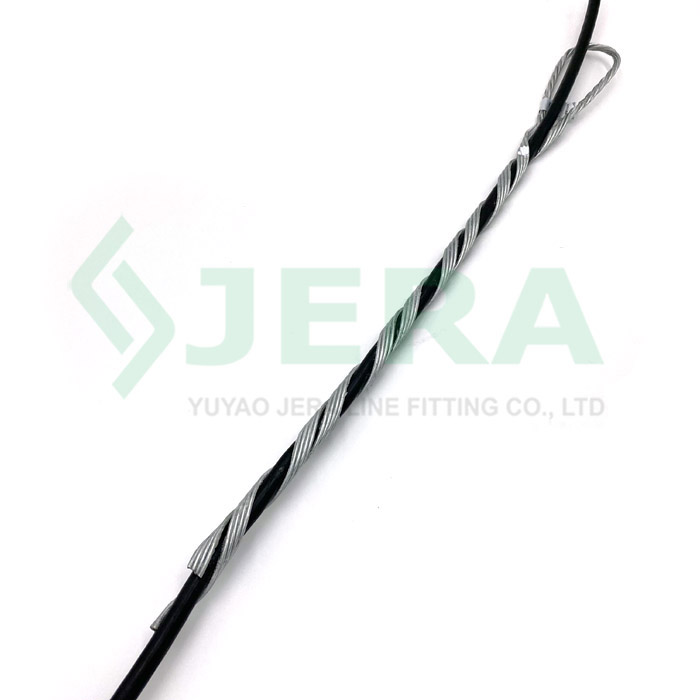

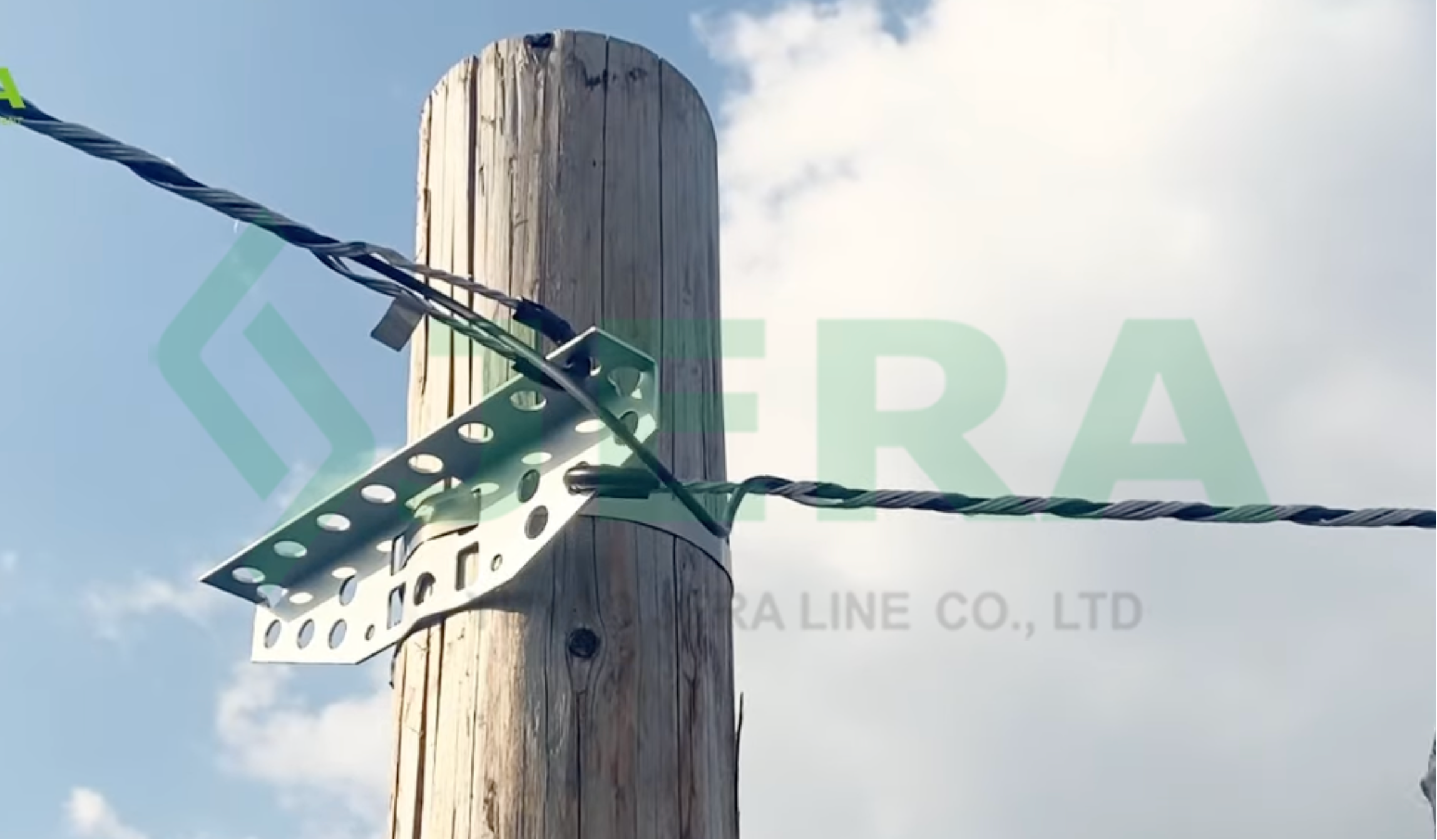

preformed dead end cable grip, also call ADSS cable guy grip, used to tension fiber optic ADSS cable during aerial FTTx line constructions.

Features

Hand installation, no need other tool or accessories
Material: hot dip galvanized steel, weather resistant
With sand and glue to improve friction between ADSS cable
Quick speed installation, saves time and costs
High environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

Designs available for high-adherence jacketed messenger or bare messenger applications

designed to secure and support overhead cables, specifically optimized for FTTH and ADSS installations

Offered in galvanized steel or stainless steel to match the messenger strand

Technical specification

Product code	ADSS cable size,mm	Wires’ configuration	MBL,kn	Color
JS-4/7-9.5-10.5	9.5-10.5	2.2*4	4-7	White

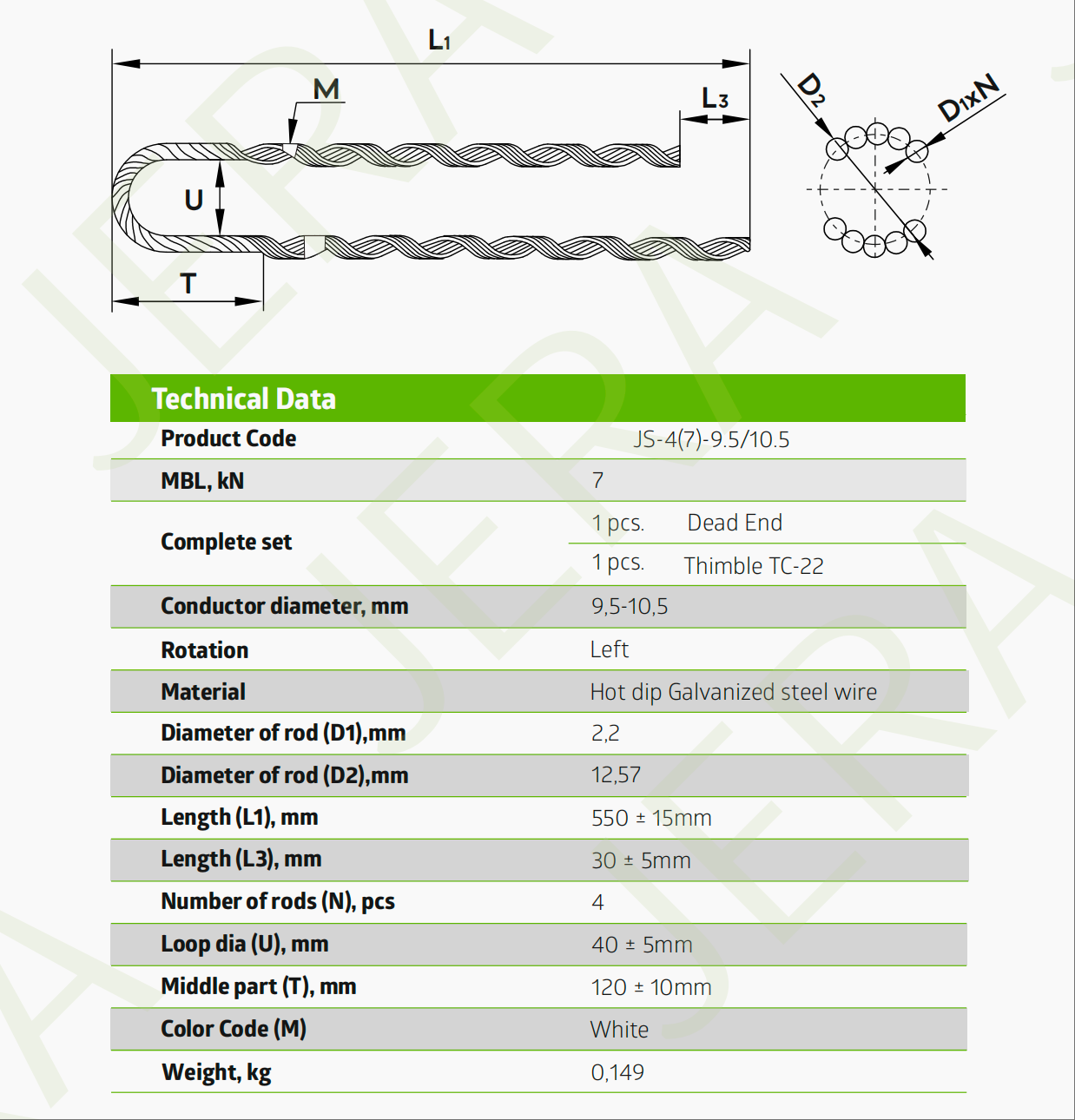

Drawing

Test

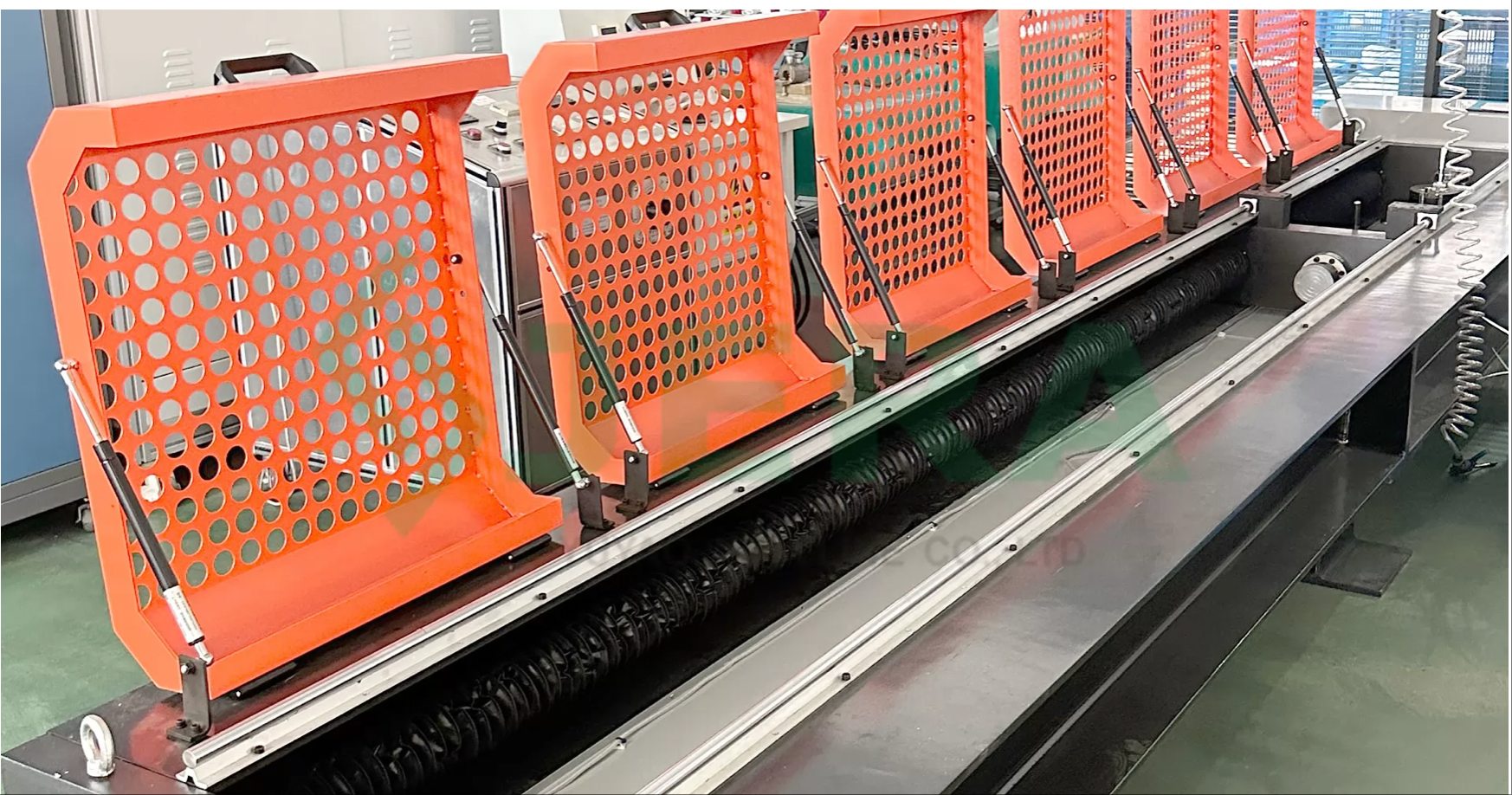

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

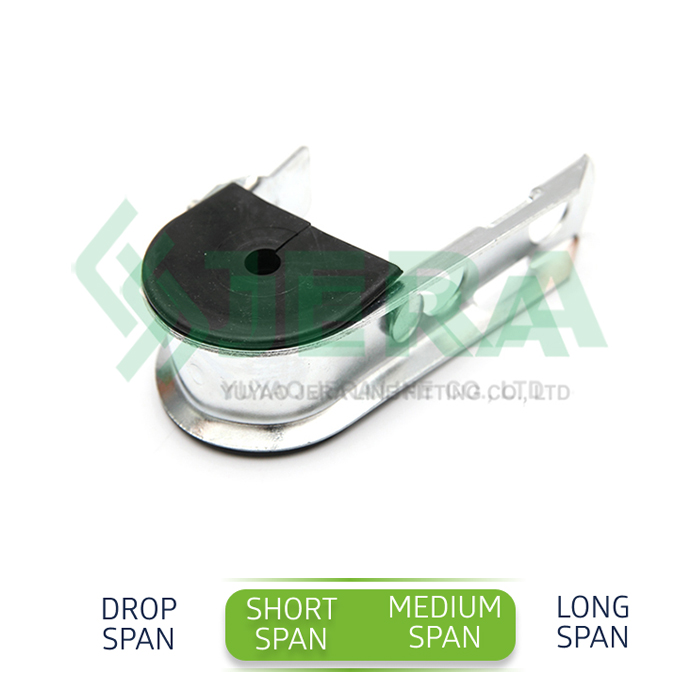

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps
