Indoor FTTH drop cable 2 fibers

Indoor FTTH drop cable 2 fibers either called GJXDH drop cable is a indoor optical cable designed to be applied during indoor on last mile installation routes to connect final users to telecommunication network line.

Features

Application: Indoor
Fiber quantity: 2 fiber
Dimensions: 3.0*2.0 mm
Reinforcement: Steel

DESCRIPTION Specification Test

REVIEW

Specification

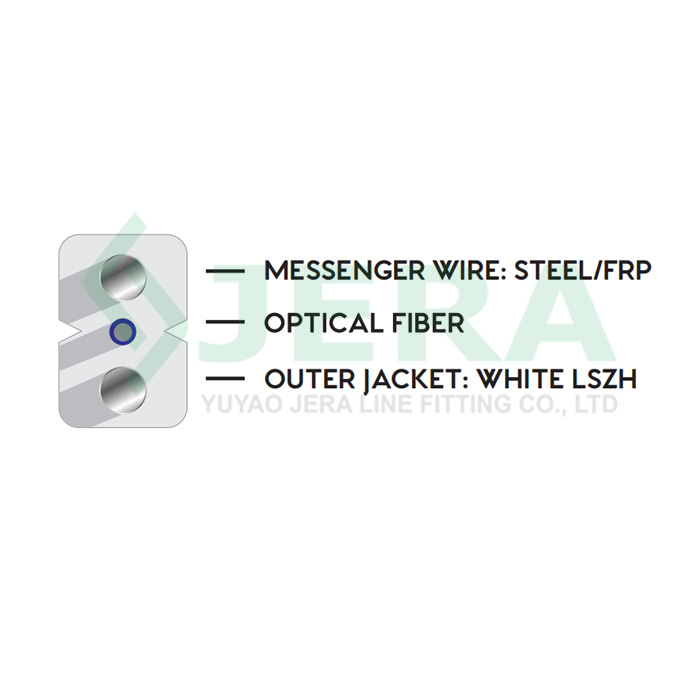

The cable consists of:

The cable dimensions:

- Width: 3.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 2 fiber.
Two of 0.5 mm diameter steel strength member/rod.
LSZH jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

Strength members maybe extra protected by galvanization treatment.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Technical specification

Item	Technology Parameters
Applications	Indoor
Product code	FOC-F-LSZH(BC)+2×0,4-steel-2x657A1-2,0*0.3-1000
Cable specification	3.0*2.0
Fiber color	Natural
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	White(Black color upon request)
Sheath material	LSZH
Cable dimension,mm	3.0(±0.2)*2.0 (±0.2）
Strength member	FRP rod, d=0.5mm
Attenuation, dB/km	≤0.4 at 1310nm, ≤0.3 at 1550nm
Tensile strengh, N	200
Operation temperature, ℃	-60~+70

Test

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.

We do this test on every cables we produce.
Our internal laboratory is capable to proceed such a series of standard related type tests.
