Fiber drop cable patch cord SC/APC 20M

Fiber drop cable patch cord SC/APC 20M
Fiber drop cable patch cord SC/APC 20M
Fiber drop cable patch cord SC/APC 20M
Fiber drop cable patch cord SC/APC 20M
Fiber drop cable patch cord SC/APC 20M
Fiber drop cable patch cord SC/APC 20M
Model No. :

Fiber drop cable patch cord SC/APC 20M

Description:

Fiber drop cable patch cord SC/APC 20M is a FTTH drop cable each end pre-terminated with SC/APC connector use to connect CATV, optical switch or telecommunication equipment. It help end user save time and cost during FTTH line deployment.

    • Application: Outdoor/Indoor

    • Fiber quantity: 1 fiber
    • Cable dimensions: 2.0*3.0 mm
    • Length:20 m
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Plug and play, easy to use
  • Pre-terminated with SC/APC connectors
  • Cable reinforced with 0.4mm steel rods
  • LSZH cable outer jacket, white and black are available
  • Quality guarantee, all passed inspection before shipment
  • Low insertion loss, high return loss
  • High stability during application
  • Competitive price
Fiber drop cable patch cord SC/APC 20M Fiber drop cable patch cord SC/APC 20M

SPECIFICATION

The cable patch cords consists of:

  • The cable dimensions:

- Width : 3.0 ± 0.2mm

- Height: 2.0±0.2mm

  • Fiber quantity is 1 fiber.
  • LSZH jacket sheath, UV protected.

Optical fiber of Single mode G652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

APPLICATION

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

Manufacturing

    patch cord manufacture

Watch Our Factory Video



Item

Value

Polish types

 SC/APC

Fiber cores

G652D, G657A1, G657A2

Fiber counts

Simplex

Fiber modes

Single-mode 9/125

Cable color

White

Size,mm

2.0*3.0

Tensile strength

200

Length,m

20

Insertion losses(IL),dB

≤0.3

Material

LSZH

Working temperature

-40~+85℃

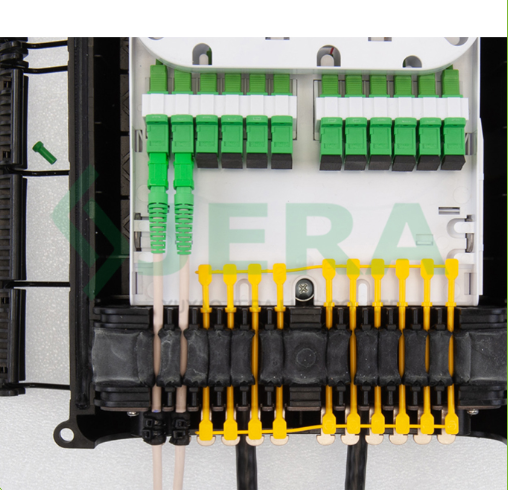

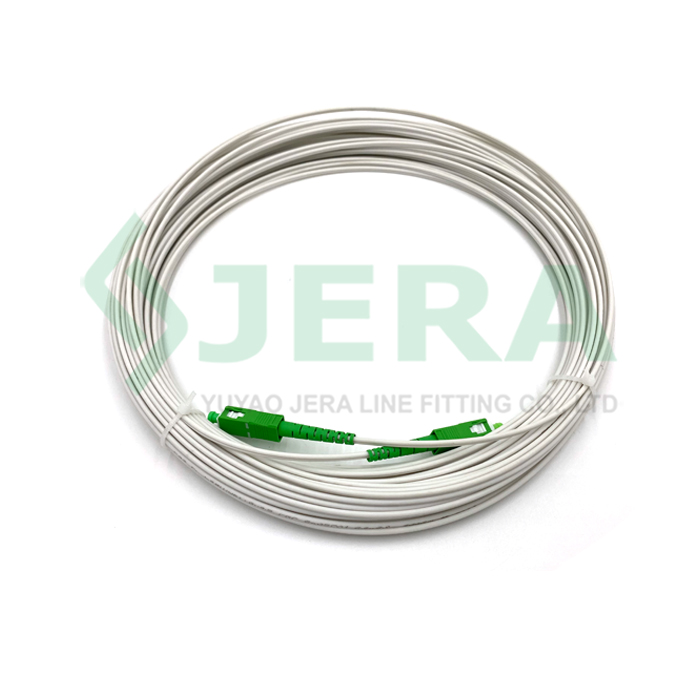

This optical drop cable patchcords was pre-terminated with 2 SC/APC connectors, which can be applied with adapter or cassette PLC splitter directly. Cable body was reinfored with two Φ0.4mm steel rods which provide proper tensile load and flexibility during application. Fiber type can be chose with G652D, G657A1 or G657A2 upon requests. Cable sheath is made of LSZH(Low smoke zero halogen) material.

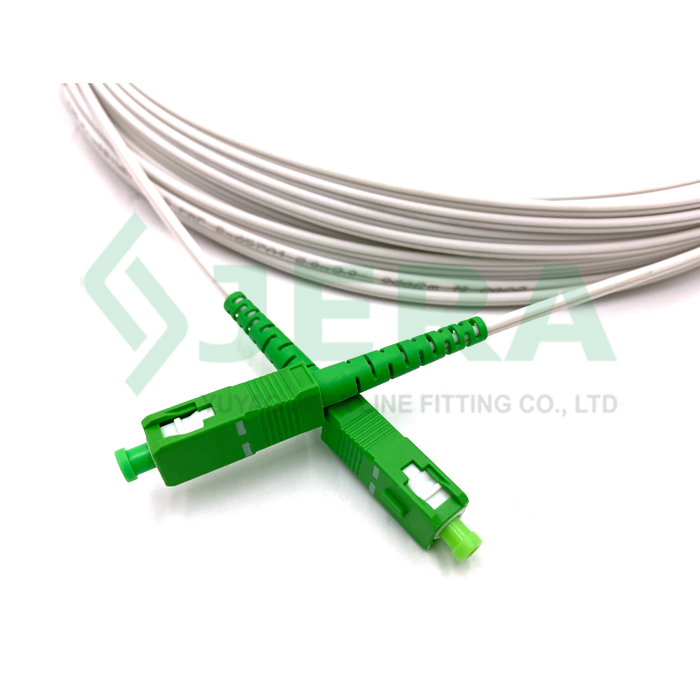

Indoor FTTH drop cable patch cord allow rapidly and conveniently plug the cable to optical transmitter, receiver, PON boxes and other telecommunication equipment which save installation cost and time.

Jera line is operating according to ISO9001:2015 standard, Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards.

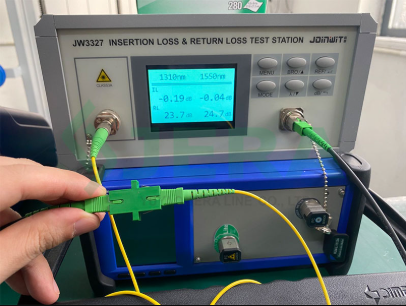

Testing includes UV & temperature aging test, tensile strength test, insertion and return losses test, fiber optic core reflection test, etc.

Jera line is a direct factory who produces optical drop cables and related accessories such as ftth wire clamps, ADSS clamps, suspension clamps, fiber optic distribution box, adapter,fiber optic splice closure dead end guy grips and etc.

Feel free to contact us for more details about this Fiber drop cable patch cord SC/APC 20M price.

Technical specification

Item

Value

Polish types

 SC/APC

Fiber cores

G652D, G657A1, G657A2

Fiber counts

Simplex

Fiber modes

Single-mode 9/125

Cable color

White

Size,mm

2.0*3.0

Tensile strength

200

Length,m

20

Insertion losses(IL),dB

≤0.3

Material

LSZH

Working temperature

-40~+85℃

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test

FAQ

  • 1. What area are you in?

    We are the factory, located in China busy in production of aerial FTTH solution consist of:

    • fiber cable,
    • pre-terminated patch cords,
    • cable clamps and brackets,
    • outdoor and indoor termination boxes, access terminals

    We produce a solution for optical distribution network ODN.



  • 2. Are you the direct manufacturer?

    Yes, we are direct factory with years of experience.

  • 3. Where is your factory located?

    Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.

  • 4. Why I should choose Jera Line?

    - We offer very competitive price.
    - We produce a solution, with suitable product recommendations.
    - We have the stable quality control system.
    - After sales product guarantee and support.
    - Our products were adjusted to work with each other to operate in a system.
    - You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
    - We are committed to long term refashions based on trust.

  • 5. Why you can offer competitive prices?

    Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/

  • 6. Why can you offer stable quality?

    Because we have quality system, find more details  https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/

  • 7. Do you offer a guarantee on your products?

    Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.

  • 8. How can I save logistics cost working with you?

    You can decrease up to 5% of your logistics cost working with us.
    Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com)

  • 9. What are the main products that you produce?

    We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.

  • 10. What's your trade term and payment terms?

    We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.

  • 11. Can you produce OEM orders?

    Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.

  • 12. Can you offer me product’s Customization and R & D?

    Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.

  • 13. What's your MOQ of new customers?

    Absence of MOQ criteria for first order.

  • 14. Can you provide free samples?

    Yes, we provide samples, which will same to the order.

  • 15. Will the quality of ordered products be the same to the sample what I have confirmed?

    Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.

  • 16. Where can I see yours’s products application?

    Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t

  • 17. How to get in touch with you?

  • 18. Where can I download your latest catalog

  • 19. Do you have global experience?

    Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
