Indoor FTTH cable 1 fiber

Indoor FTTH cable 1 fiber is a flat type optical cable designed to used indoor, on last mile installation routes to connect final users to telecommunication network line.

Features

Perfect for indoor distribution networks of fiber optics
High connecting usability, easy access to the fiber core
Full dielectric and high flexibility design
Minimum dimension and weight of drop cable
Direct factory offer, competitive price

DESCRIPTION Specification Test

REVIEW

Application

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Technical Specification

Item	Technology Parameters
Application	Indoor
Product Code	FOC-F-LSZH(WC)+2×0.5-FRP-1x657A1-2.0×0.3-1000
Cable Specification	3.0 × 2.0 mm (±0.2 mm tolerance)
Cable Dimension (mm)	Width: 3.0 ± 0.2 mm Height: 2.0 ± 0.2 mm
Fiber Quantity	1 fiber
Fiber Type	Single Mode, 9/125 μm (G.652.D, G.657A1, G.657A2)
Fiber Color	Natural
Fiber Coating Standard	TIA/EIA 598 or IEC 60304
Strength Member	2 x 0.5 mm FRP rod (galvanization optional)
Sheath Material	LSZH (Low Smoke Zero Halogen), halogen-free, UV protected
Sheath Color	White (Black upon request)
Fire Rating	CPR classification optional, tested per IEC / EN 60332-1-1
Attenuation (dB/km)	≤0.4 at 1310 nm, ≤0.3 at 1550 nm
Tensile Strength (N)	80
Operating Temperature (℃)	-60 ~ +70

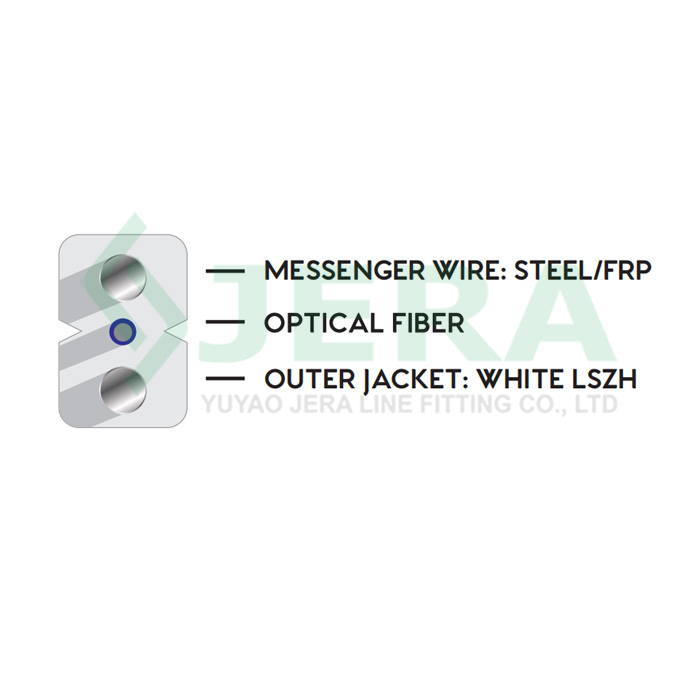

Drawing

Test

We inspect the incoming raw materials according to the standard of ISO 9001 : 2015 and CE. Our fiber optic cables are made of G657A1, A2 or G.652.D fiber core, FRP and steel wire materials for strength member, weather and UV resistant LSZH or TPU for cable jacket.

All our produced cable meet the criteria of key regional standards, SGS , IEC & CPR. We have our own inner laboratory to do related tests by ourselves, such as Temperature and humidity cycling test, Fire ristance test, Fiber optic core reflection test etc.
