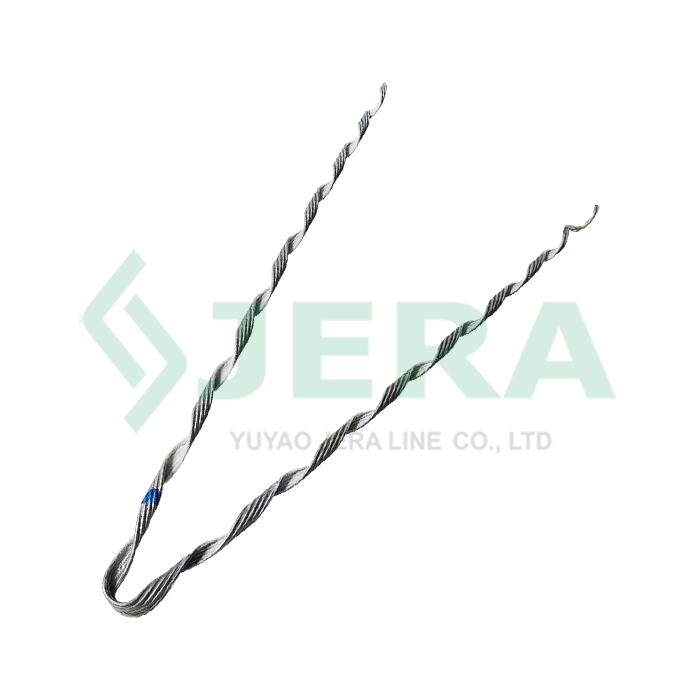

Guy grip dead end JS-90B

JS-90B

Guy grip dead end JS-90B also called Performed dead end guy grip, it is a twisted rope made of galvanized steel through a stranding process. Galvanized steel performed line has good electrical conductivity and low resistivity, which can effectively transmit electric energy, and has high strength, which can withstand the tension and load of the line. Therefore, it is widely used in the field of cables and power transmission.

Features

Cable type: Strand wire
Cable size: 12.7 mm-0.5″
Span: <50 m
MBL: 119.7 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Excellent structural support and weight distribution
Lighter than other metal materials, easy to carry
Simple operation and less installation time
Increase the contact area of the fiber optic cable to distribute the force evenly
Composed of multiple metal wires intertwined, more wear-resistant
Competitive price

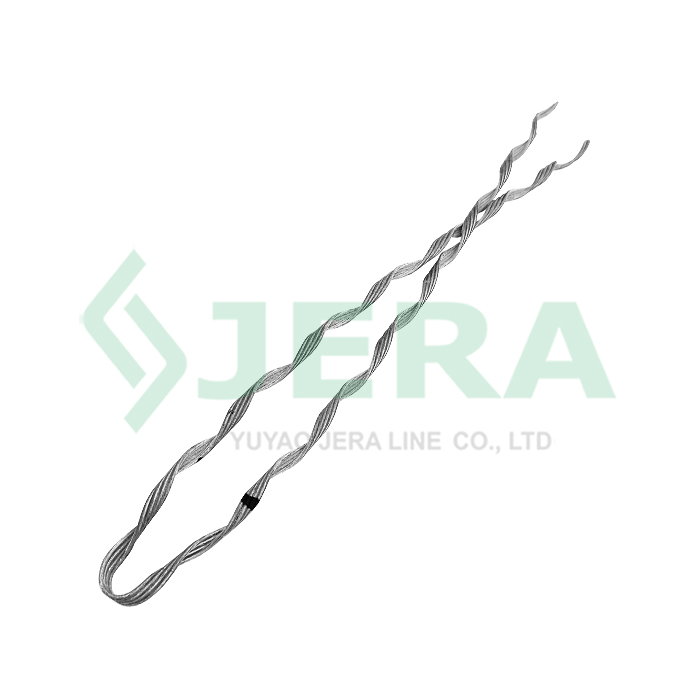

Guy wire dead grip is a product made of several single-strand helical wires pre-twisted.

The dead end grip consists of:

Four of 4.1 mm diameter rods.

Material: Galvanized steel

Preformed dead end for strand is made of the same basic material as the strand to which it is applied. Common materials are galvanized steel wire and aluminum-clad steel wire. Galvanized steel is a process in which steel is coated with a layer of zinc to improve its corrosion resistance.

read more

Applied outdoor, for construction of construction to tension or hang optical cables on utility poles.

read more

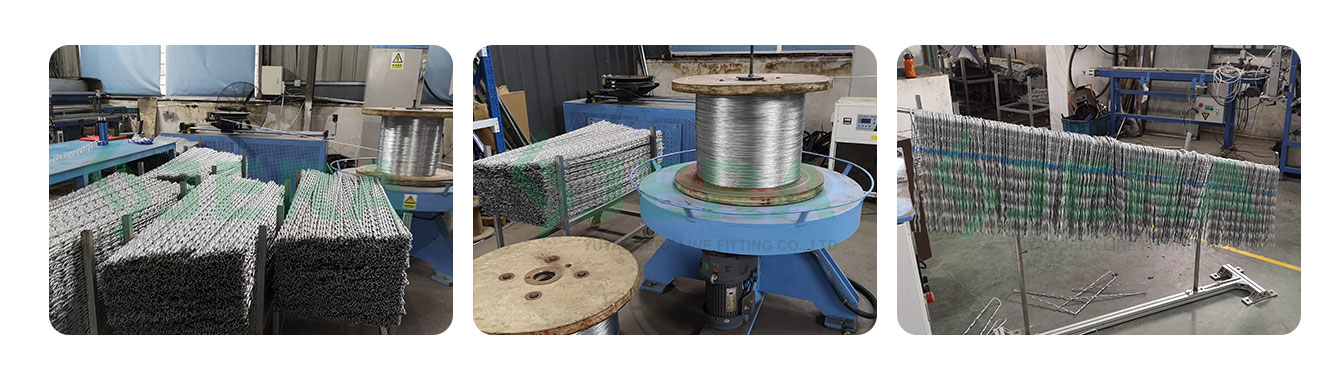

Manufacturing

Watch Our Factory Video

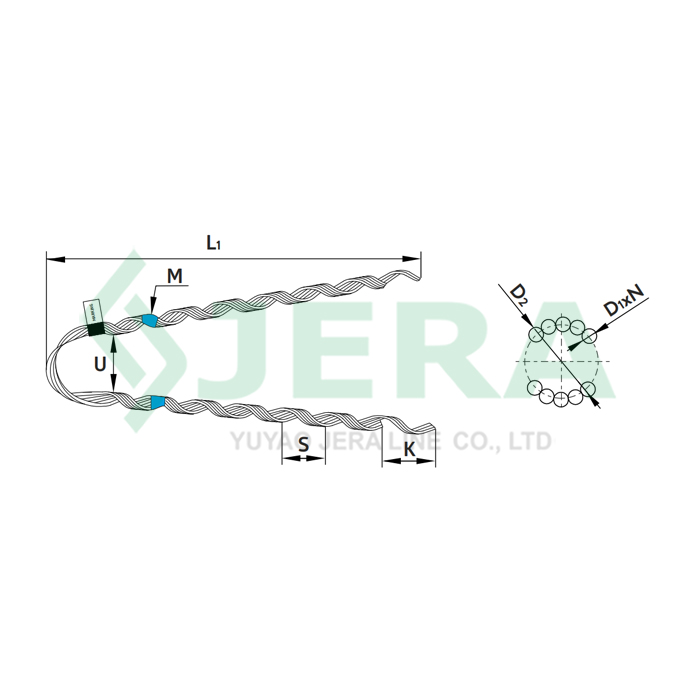

Technical specification

Product Code	JS-38B
MBL, kN	119.7
Complete set	1 pcs
Conductor diameter, mm	12.7
Rotation	Left
Material	Extra High Strength (EHS) 1680N/mm ²
Diameter of rod (D1),mm	4.1
Diameter of rod (D2),mm	18.3
Length (A), mm	990 ± 5mm
Length (K), mm	120
Number of rods (N), pcs	5
Loop dia (U), mm	22 ± 5mm
Step Length (S), mm	120
Color Code (M)	Blue
Weight, kg	1.05
