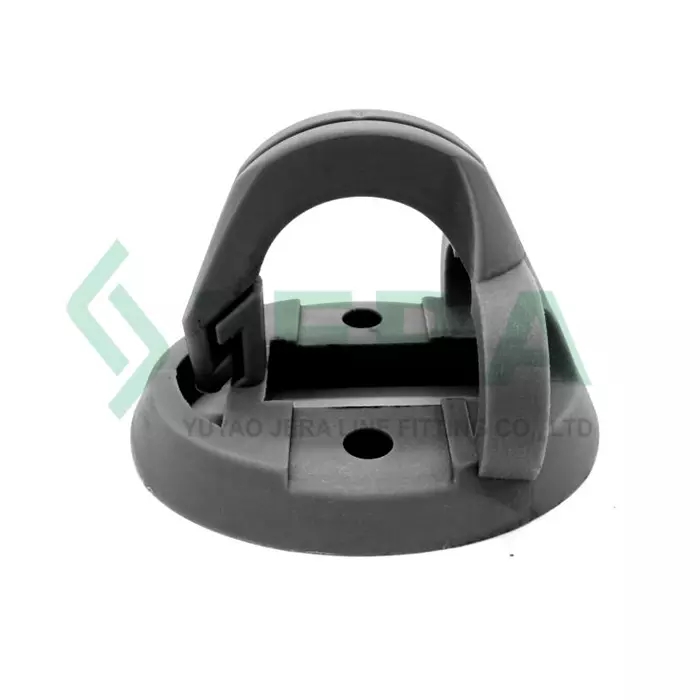

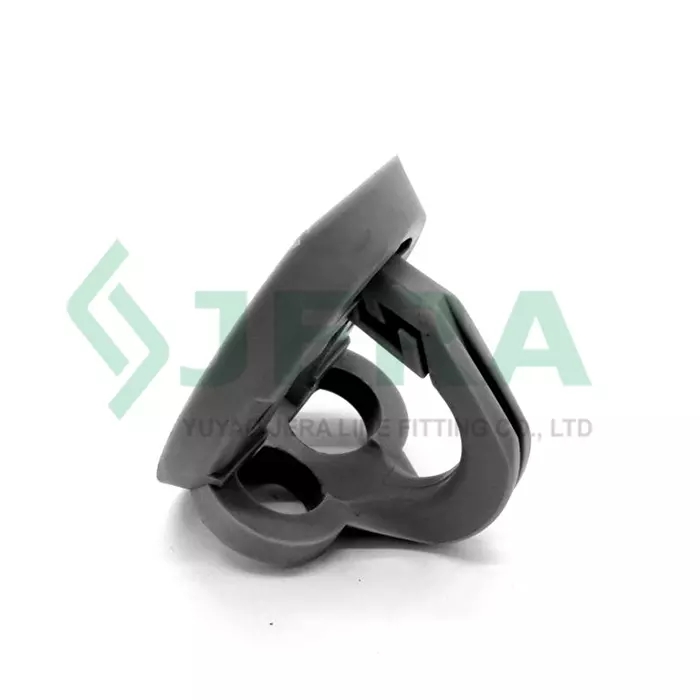

Ftth fiber optic cable hook, YK-07

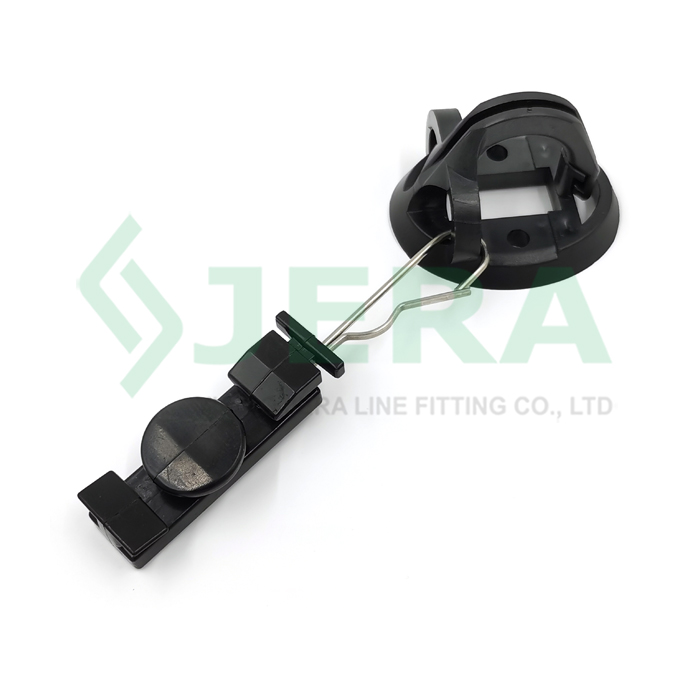

Ftth cable hook YK-07 also called drop cable hook developed to tension and suspension the ftth drop cable clamps or adss cable clamps during outdoor aerial ftth network deployment.

Features

Cable clamp fixation hangers
Suitable for close wire bail, and open wire bail application
Made of Solar radiation resistant plastic, guarantee for long time usage
Wall and pole installation by screws and stainless steel straps
Light mass with high tensile performance
Excellent environmental stability
Unique design and extra functional application compared to analogs.
Fair price

DESCRIPTION Specification Test

REVIEW

The installation of this dielectric pole hook is very simple. The YK-07 hook has universal mount application for wooden walls or concrete poles. Use the stainless steel band or stainless steel ties and wooden screws for this need.

FTTH pole bracket YK-07 inspected by variety of test which available in Jera factory laboratory. Such as mechanical tensile test, temperature rising and corrosion and UV resistance tests which are critical for overhead cable fittings.

Jera line is a factory that produces the ftth fiber optic cable and allied products for network deployment. We offer the set of products for Ftth deployment: fiber optic cable clamps , cable clamp brackets, fiber optic splice closures and distribution boxes.

Technical specification

Product code	Material	MBL Perpendicular/Horizontal, KN
YK-07	UV resistant nylon	1.0/1.5

Test

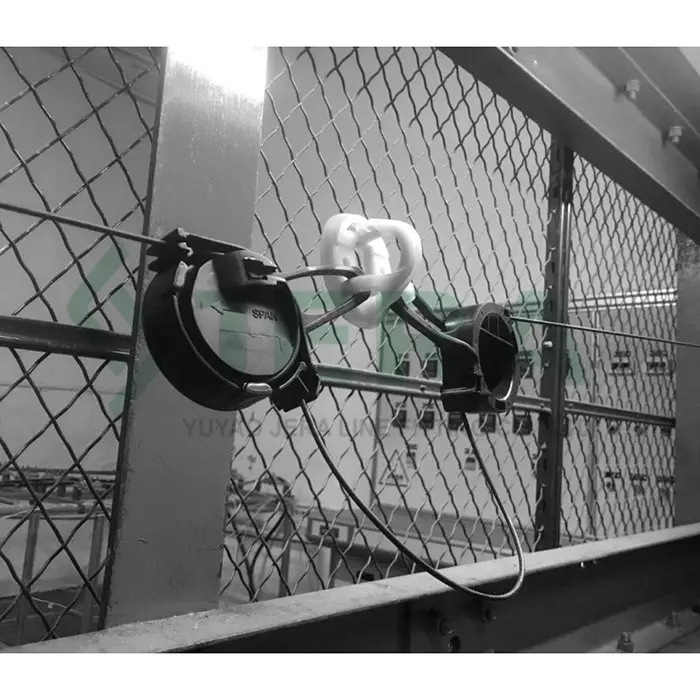

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
