Ftth fiber optic cable Odwc-22s

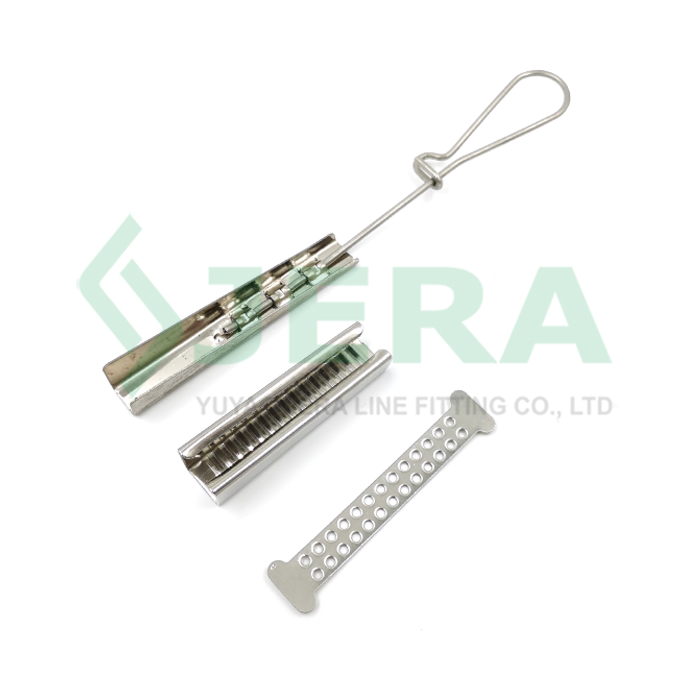

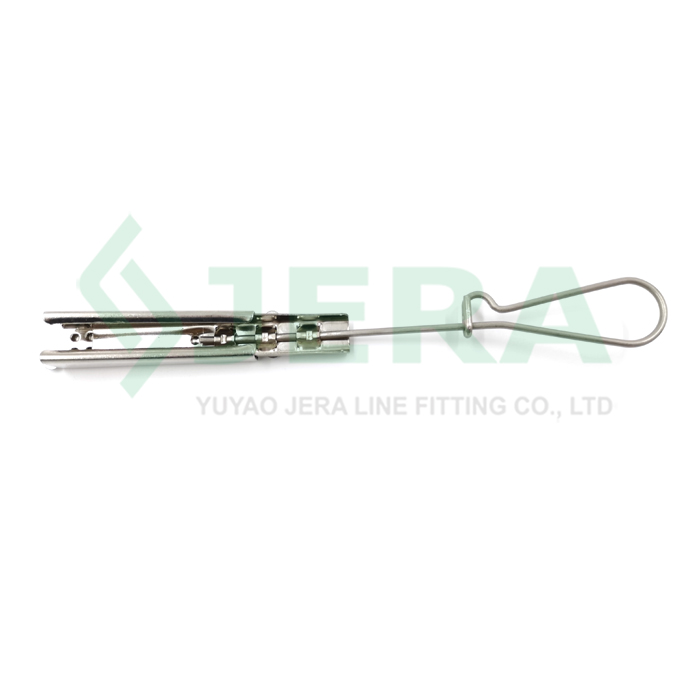

Ftth fiber optic cable clamp, ODWAC-22s

ODWAC-22s

Ftth fiber optic cable clamp ODWAC-22s, other called ftth clamp is designed to tension and support fiber optical cable or telephone drop cable on dead-end or intermediate routes during FTTH, FTTX network constructions.

Features

Cable type: Flat
Cable size:<5×<13 mm
Span:30-50 m
MBL: 0.5 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Easy installation, no request for any tools
Open type bail design , can be installed on drive hook and pole brackets
Stainless steel material corrosion resistant and durable
Excellent environmental stability
Competitive price

The clamp applied in:

Cable diameter:<5×<13 mm

MBL, kN: 0.5

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The wire rope of the wire clamp is made of stainless steel 304. The length is determined by the customer’s needs.

read more

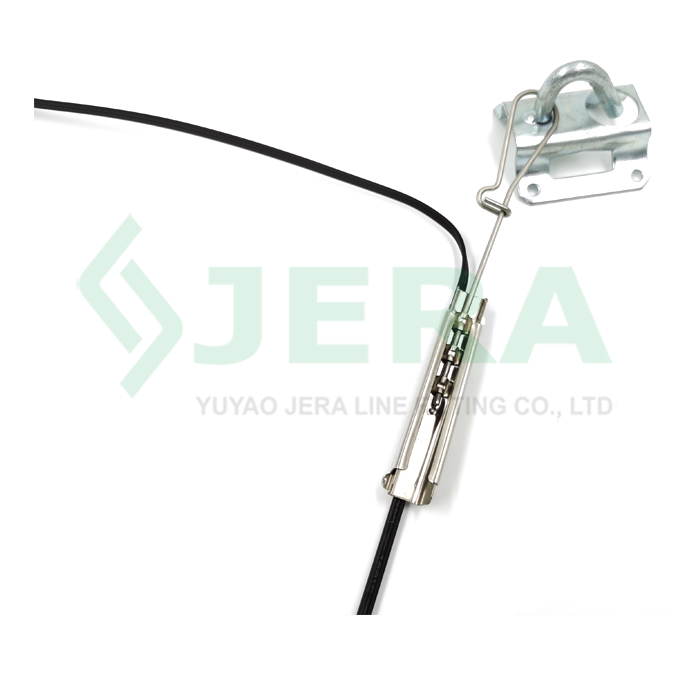

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Flat cable size (h×w) mm	Material	MBL,KN	Length,mm	Weight,kg
ODWAC-22S	<5×<13	Stainless steel	0.5	220	0.04
