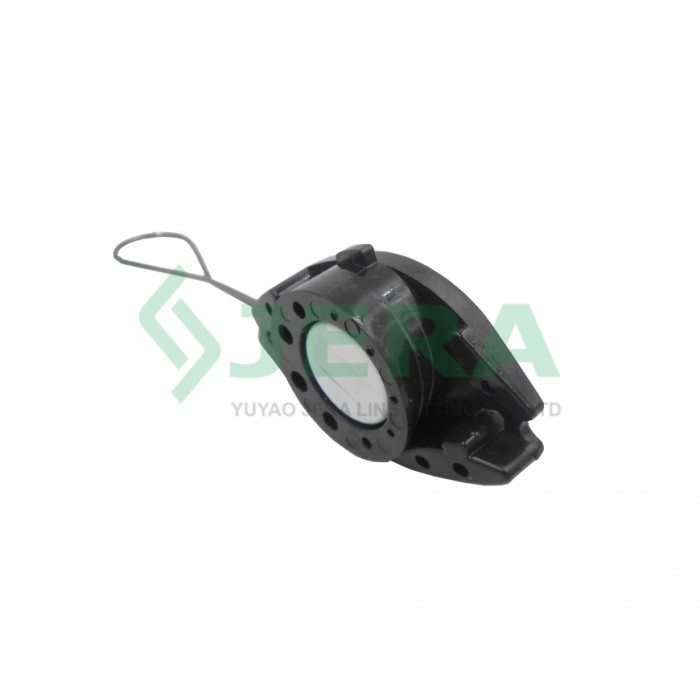

Ftth Drop Fish Clamp, Fish-01

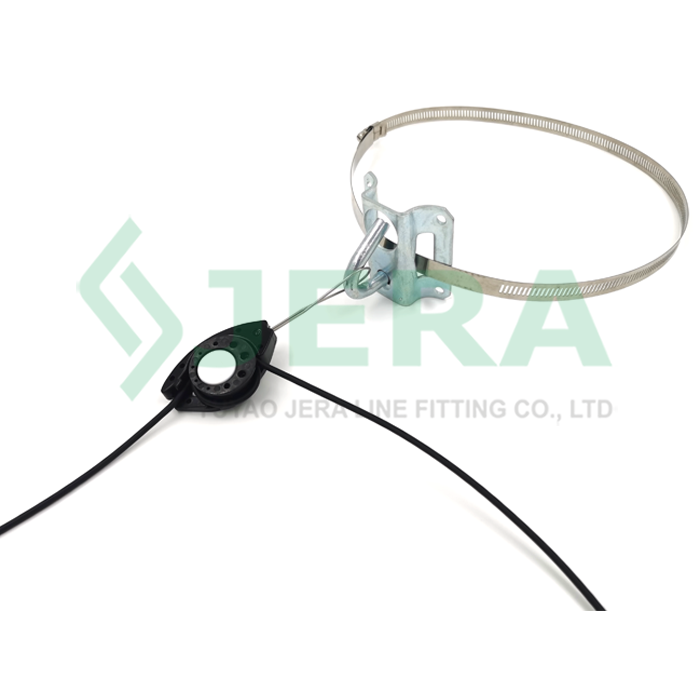

Ftth drop fish clamp fish-01, other called aerial drop fish clamp is designed to anchor and support flat or round fiber optical cable on dead-end or intermediate routes during outdoor FTTH network solution.

Features

Wheel type self-adjusting wedge
Easy installation without additional tools
UV resistant thermoplastic and stainless steel material, durable
Excellent environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

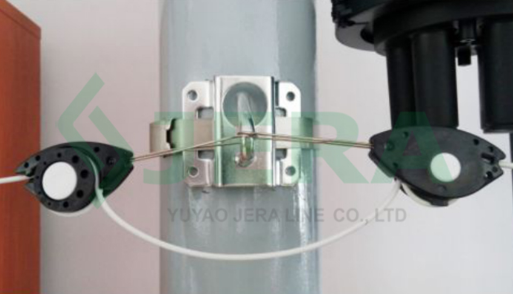

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

Technical specification

Product code	Flat cable size mm	Round cable size mm	Material	MBL,KN
FISH-01	2.0*3.0	2-3	UV resistant plastic & stainless steel	0.5

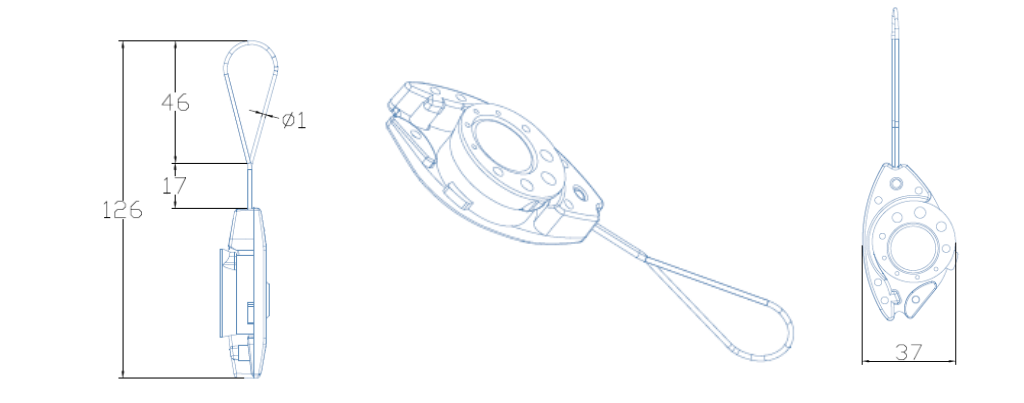

Drawing

TEST

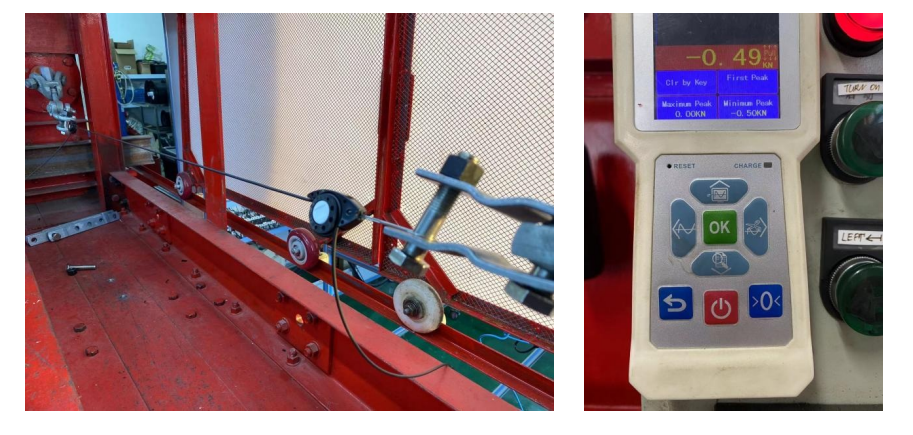

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
