Model No. :

FOC-R-TPU(BC)+4*1670+0.9-PVC

Description:

Aero drop FTTx cable, also called FTTH round drop cable is designed to used on last mile installation routes to connect final users to FTTH or GPON line.

This optical drop cable appropriate for application where requests small diameter and solid jacket during FTTH deployment.

    • Application: Outdoor
    • Fiber quantity: 2 fiber
    • Dimensions: 3.0 mm
    • Reinforcement: Aramid yarn
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • For indoor and outdoor distribution networks
  • High connecting usability, easy access to the fiber core
  • Reinforced with aramid yarn or polylefin upon request
  • TPU cable jacket, hard resistance of material to objects (Building, trees)
  • Full dielectric and high flexibility design
  • Minimum dimension and weight
  • Competitive price
Aero drop FTTx cable 2 fibers Aero drop FTTx cable 2 fibers

SPECIFICATION

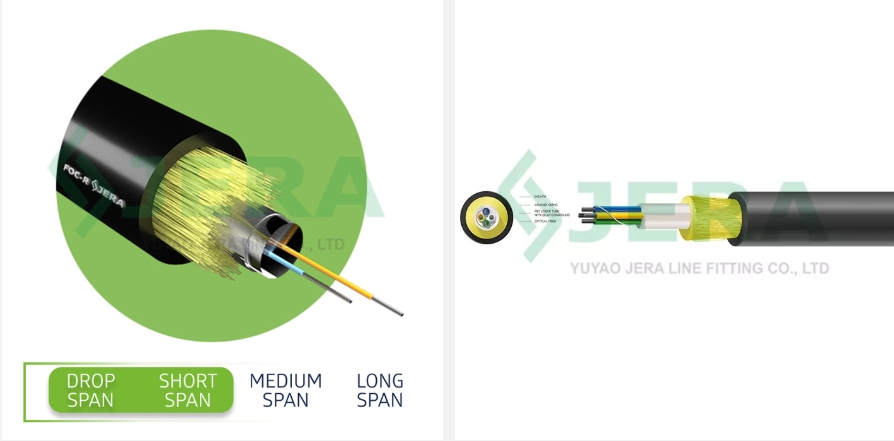

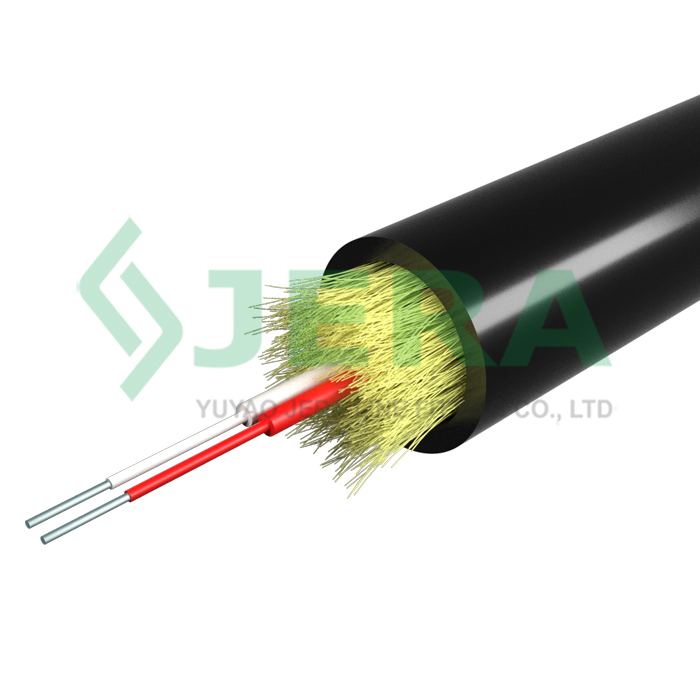

The cable consists of:

  • The cable dimensions:

- Diameter : 3.0 ± 0.2 mm

  • Fiber quantity is 2 fiber.
  • Aramid yarns
  • LSZH or TPU jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2, G.652D or G657B3 grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

APPLICATION

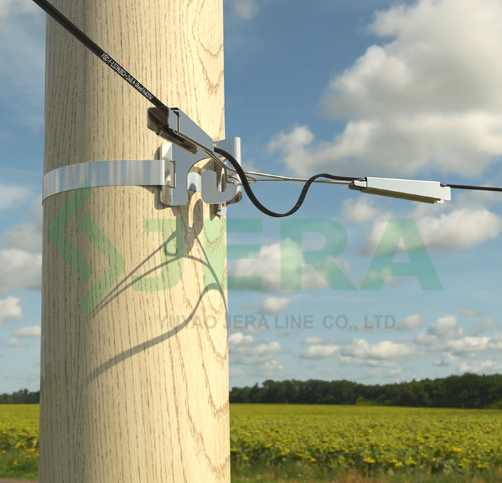

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

read more

Manufacturing

    fiber web manufacturer

Watch Our Factory Video

Technical specification

Item

Technology Parameters

Applications

Outdoor, indoor

Product code

FOC-R-TPU(BC)+4*1670+0.9-PVC-2xG657A1-3.0-PM300

Tight buffer material

PVC

Strength member material

Aramid yarn/Polyolefin

Fiber cores

2

Fiber core options

G.652.D, G.657A1, G.657A2

Cable jacket color

Black

Sheath material

TPU

Cable dimension,mm

3.0(±0.2)

Tensile strength, N

800

Application temperature, ℃

-50~+70

Certification

IEC-60794-1-2, ISO9001:2015

Length

1000/2000 m per drum

PRODUCT VIDEO

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

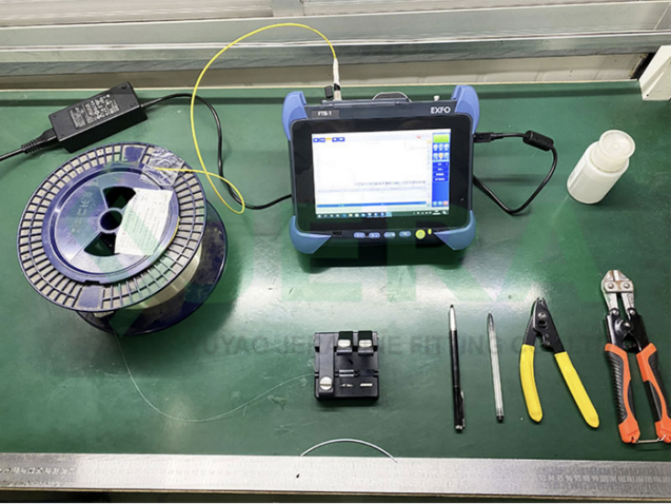

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test

FAQ
