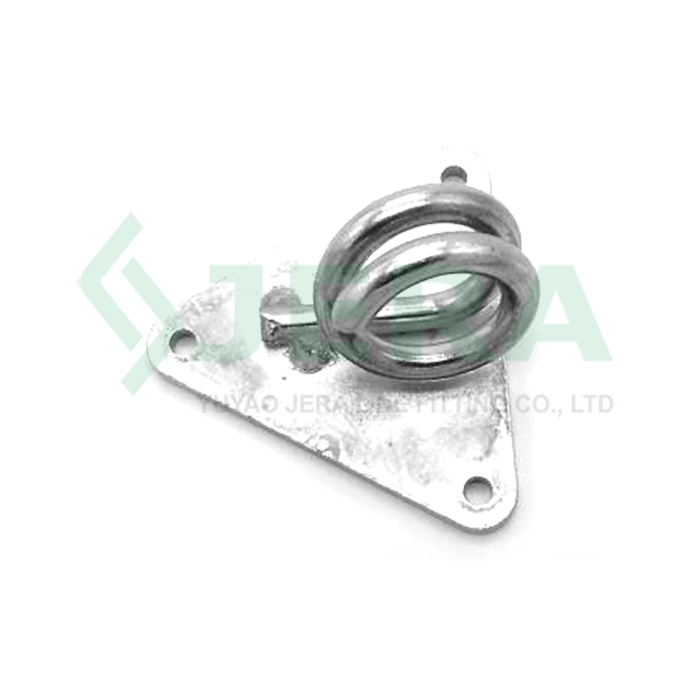

FTTH Bracket pigtail type, YK-03
YK-03
Description:
Mount bracket is mainly used for telecommunications subscriber loop, fiber to the home (FTTH), LAN/WAN, CATV, and other cable management poling solutions.
FTTH bracket is designed to tension or suspension FTTH suspension clamps or FTTH anchor clamps with appropriate cable messenger or without it, in outdoor FTTH solutions.
- Bracket type: Tension
- Application: Pole/Wall
- Span: 30-50 meters
- MBL: 1 KN
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Compact size
- Galvanized steel with hot dip galvanized steel
- Screws installation on wall or wooden pole

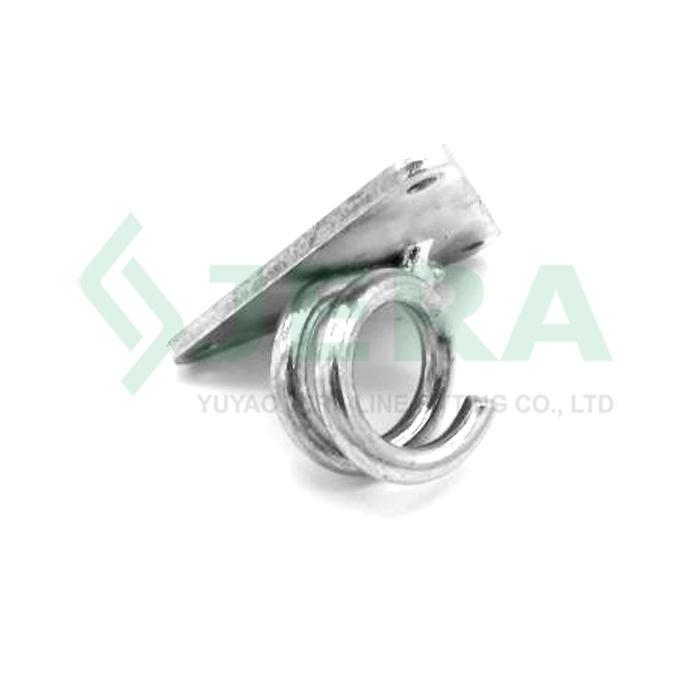

- Pigtail type hook, prevent drop clamp from drop
- Superior environmental stability
- Competitive price of ftth bracket
SPECIFICATION
Mount bracket is mainly used for telecommunications subscriber loop, fiber to the home (FTTH), LAN/WAN, CATV, and other cable management poling solutions.
FTTH bracket is designed to tension or suspension FTTH suspension clamps or FTTH anchor clamps with appropriate cable messenger or without it, in outdoor FTTH solutions.
The installation of bracket is very easy, all you need is to secure it on the pole with 3 screws, and then attach an appropriate FTTH clamp with fiber optic cable. The solution requires no preparation of optical fiber cable before attaching, helps to secure FTTH cable as tightly as possible to pole or wooden surface.
APPLICATION
Pigtail type hook eliminates loose of drop wire clamp like ODWAC, during of usage period. FTTH clamps, FTTH drop cable accessories and drop cable suspension mounts are available either separately or together as assembly.
FTTH bracket YK-03 is made galvanizes steel 3,0 mm plate and hook 5,0 mm, which has inner diameter of 17 m. Drop cabling with aerial supports passed tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature cycling test, aging test, corrosion resistance test etc.
Jera is a confident supplier of optical cable accessories and passive components of optical networks.
The cable installation set for FTTH construction includes: junction fiber optic box, draw hooks, fiber wall socket (ODP) cable clamps, cable glands, cable clips, nail clips, cable wall bushings, tail duct, cable wiring duct. We have the whole kit of accessories for this need.
Welcome to contact us to have more information.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Material |
MBL, KN |
|
YK-03 |
Galvanized steel |
1 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
