Fiber termination box drop cable slack storage YK-SX

YK-SX

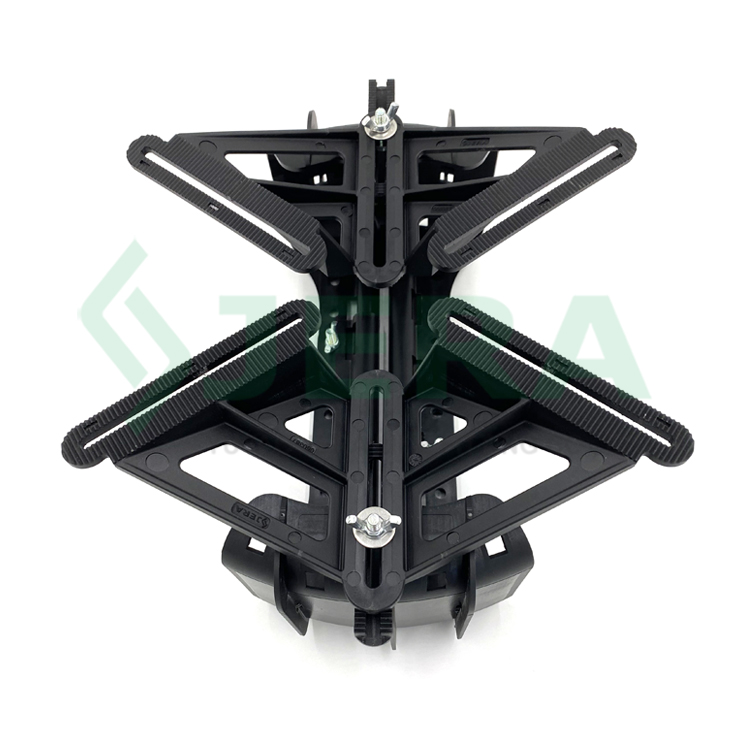

Fiber termination box’s drop cable slack storage YK-SX is designed to be mounted on wooden or concrete pole to provide a storage space for over-length FTTH drop cables, and its X shaped rack provide 4 points to fix fiber optic termination box to terminate feeding cable and connect last mile cables.

Features

Application: Pole
Loop diameter:200-450 mm
Adjustable: Yes
Materials: UV resistant plastic

DESCRIPTION Specification Test

REVIEW

Key features

Light weight, easy and quick installation
Universal for 90% of termination boxes in the market
UV resistant plastic, stainless steel hardware guarantee long time usage
Cable storage adjustable storing diameter is from 200-450mm
Can be installed by two stainless steel straps 19*0.7mm on pole
Allows for storing up to 100 m of fiber drop cable
Stable performance during long period application
High mechanical strength
Competitive price

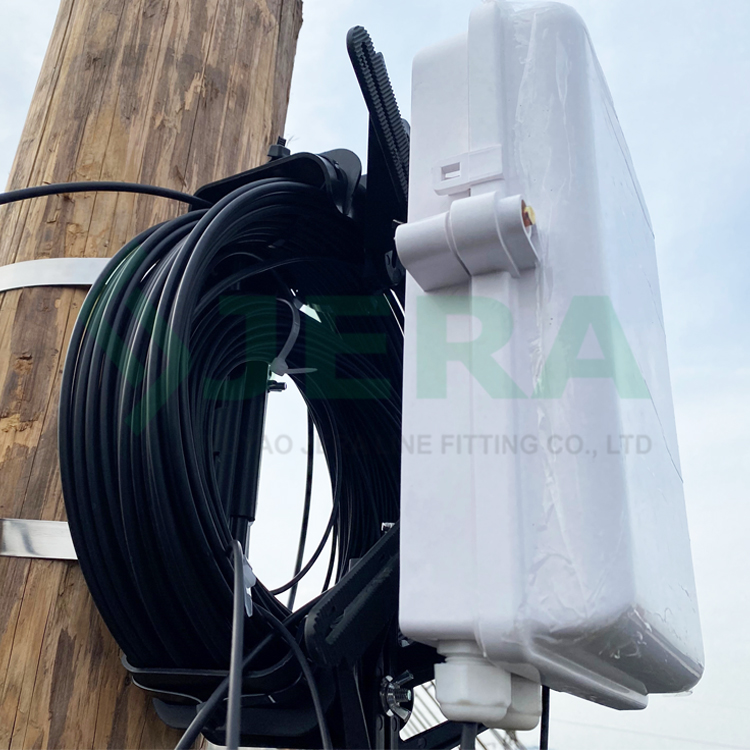

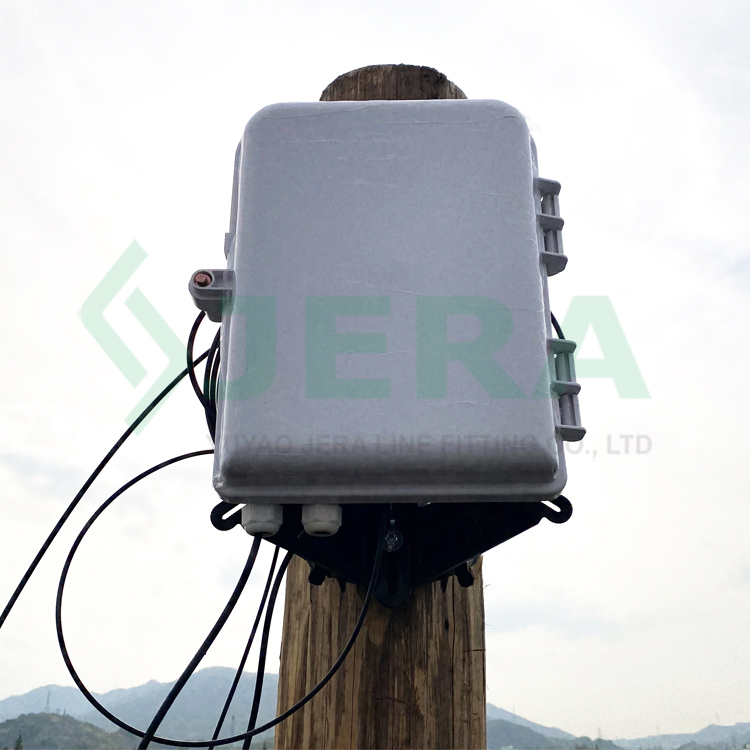

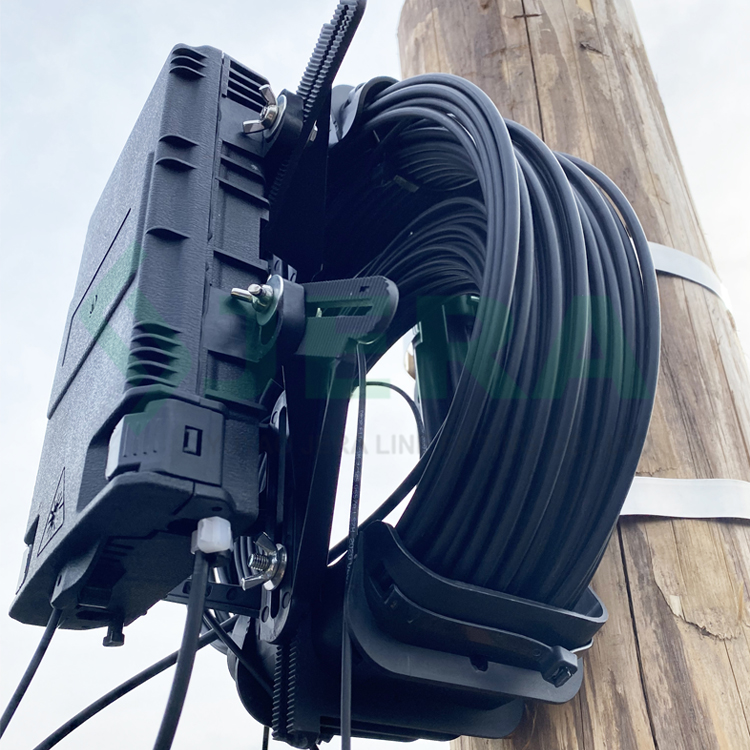

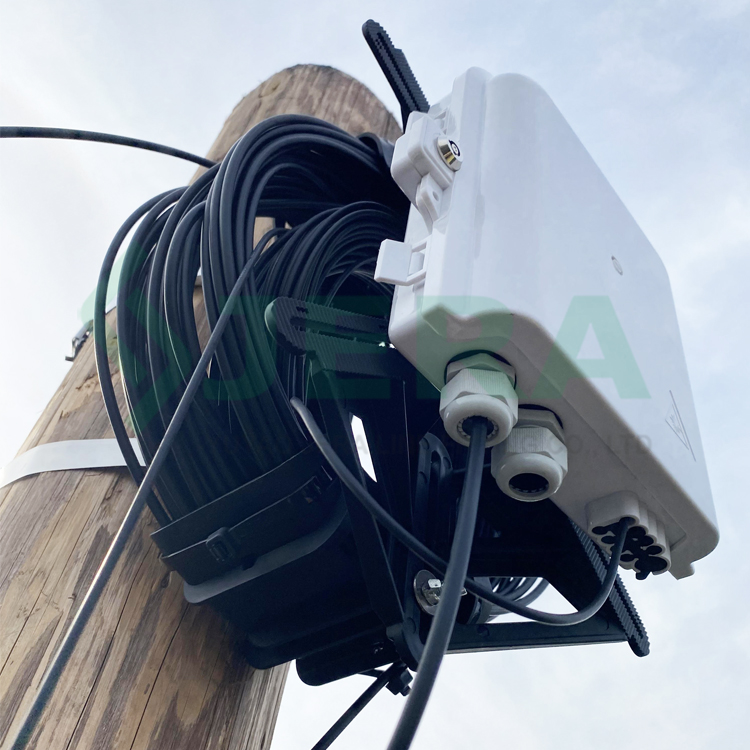

Fiber termination box’s drop cable slack storage YK-SX is designed to be mounted on wooden or concrete pole to provide a storage space for over-length FTTH drop cables, and its X shaped rack provide 4 points to fix fiber optic termination box to terminate feeding cable and connect last mile cables.

This fiber optic drop cable storage bracket is light weight product and convenient for end users to operate during application. It provides a easy way for installer to terminate feeding optical cable.

This FTTH distribution box installation bracket is are made of UV resistant polymer reinforced by fiber glass, and all the hardware are weather proof which ensure long time usage.

read more

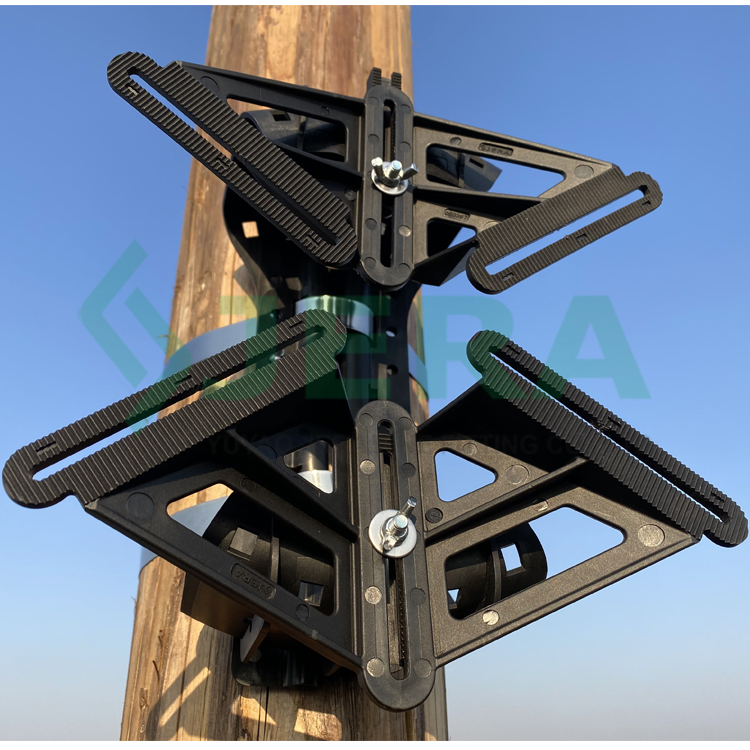

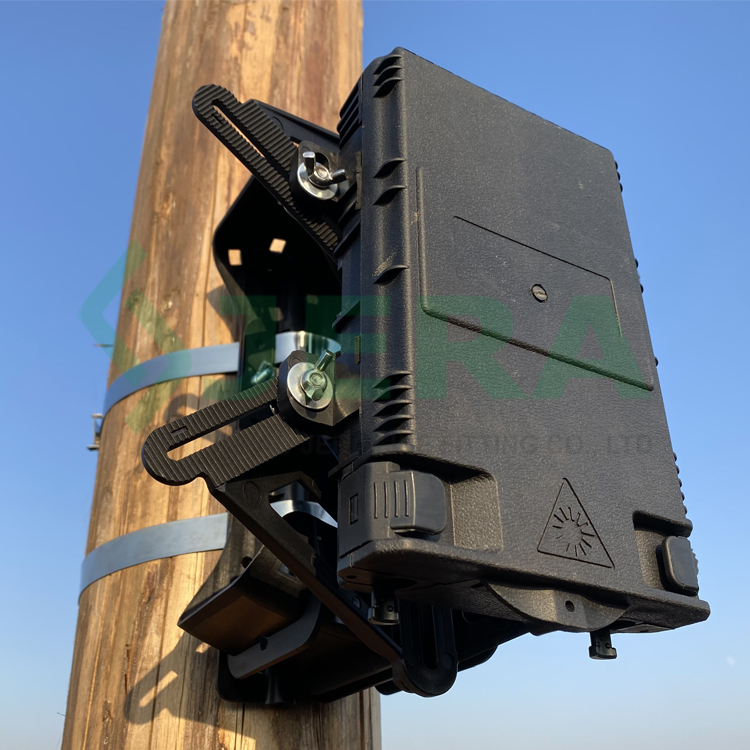

The installation of this FTTH box bracket is very simple, only need two 19*0.7mm stainless steel band or nylon ties to fix on pole. The cable coiling storage was designed with adjustable storing compartment of 200 to 450mm which can be adjust upon cable bending requirements.

Jera is a direct factory provide a whole solution for indoor and outdoor FTTH deployment, our product include fiber optic drop cables, fiber optic drop cable patch cord, cable clamps, ADSS tension clamp, suspension clamps, dead end guy grips, **fiber optic termination box** , stainless steel banding straps and etc.

Feel free to contact us for more information about this Fiber termination box’s drop cable slack storage price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Cable storing coil diameter, mm	Min-Max size between holes for box,mm	Bolt size to fix box on bracket	Materials
YK-SX	200 to 450	66 to 225	Φ5mm	UV resistant polymer, FG reinforced
