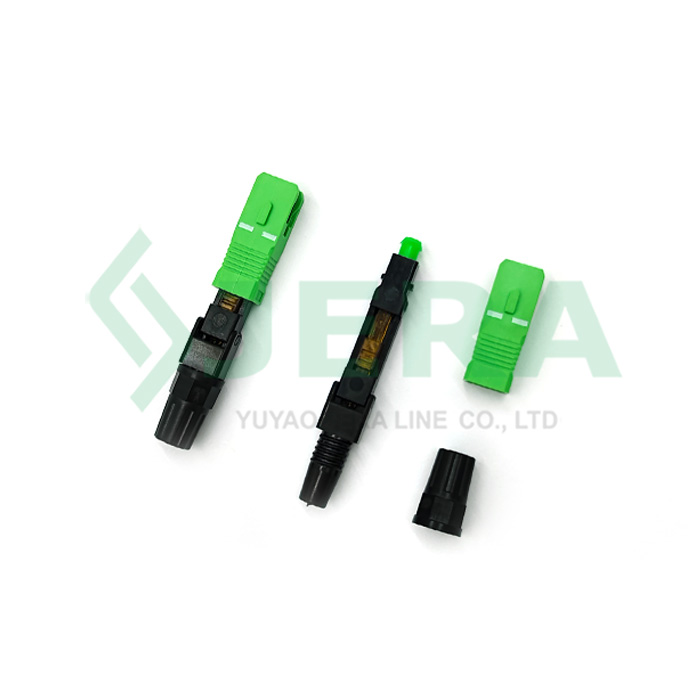

Fiber optic fast connector SC-APC Type 1

Fiber optic fast connector SC-APC Type 1
Fiber Optic Fast Cold Connector either called Single-mode Fiber Quick Connector，is a component that can quickly and conveniently connect optical fibers on site, and is suitable for optical cable connections, user terminals, etc.
Fiber optic fast connector SC-APC Type 1
Features
    • Socket type: SC
    • Polish type: APC
    • Area: Outdoor/ Indoor
Contact Us
DESCRIPTION Specification Test
REVIEW

Key features

  • no special tools required
  • no damage to optical fibers and components
  • Can be directly connected to various conventional optical cables
  • Connector with angled bevel
  • low insertion loss
  • Small size, simple structure, wide application field
  • Factory direct sale
Fiber optic fast connector SC-APC Type 1 Fiber optic fast connector SC-APC Type 1

SPECIFICATION

Fiber optic adapter generally consists of three parts, two fiber optic connectors and a coupler.

Two optical fiber connectors connect the two optical fiber tail ends. The coupler acts as a bushing.

SC (Standard Connector) ：The standard square joint is made of engineering plastic, which has the advantages of high temperature resistance and not easy to oxidize.

APC: Polished at an 8-degree angle.

The casing is usually made of wear-resistant, dustproof, and waterproof materials. The connection interface is usually made of ceramic. This design protects internal components from the external environment, ensures stable fiber connection and reduces optical signal loss.

Adapters sometimes also include some auxiliary parts, such as sealing rings, locks, etc., to cope with complex environments.

read more

APPLICATION

Applied Indoor, for connecting fiber optic cable to various devices such as routers, switches, and servers, ensuring seamless and high-speed data transmission within a confined space.

read more

OPERATION STEPS

Operation Steps

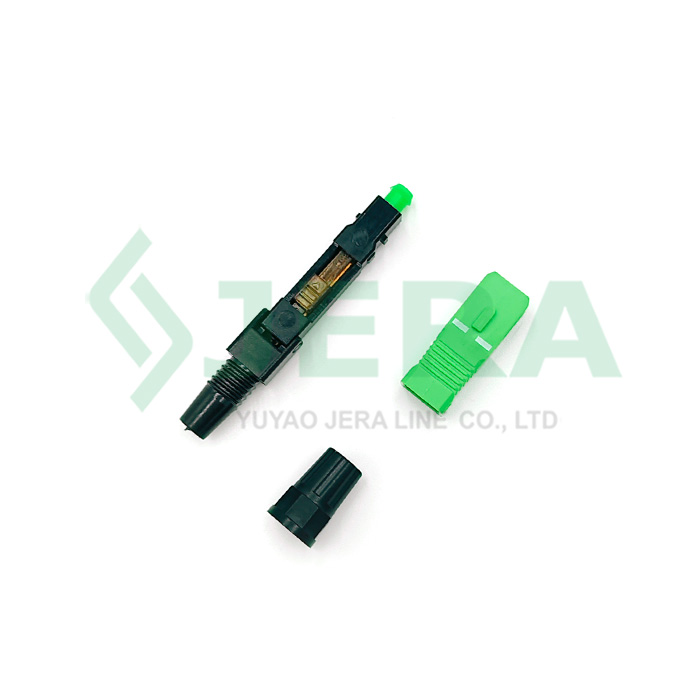

1.Embedded quick assembly connector components.

2.Insert optical cable into screw cap.
3.Strip cable jacket and leave coated fiber as 50-60mm long.
4.Put cable into fixed length device.
5.Strip the coating.
6.Clean bare fiber.
7.Cut the fiber by cleaver.
8.Press the cable into the groove and keep the fiber slightly bending.
9.Close the back cover.
10.Close the gland for fixing drop cable.
11.Close screw cap.
12.Put SC housing and finish assembling.
read more

Manufacturing

Watch Our Factory Video

Technical specification

Connector Type

SC

Polish

APC

Insertion Loss

≤0.35dB

Return Loss

≥50dB

Cable Diameters(mm)

0.9/2.0/3.0

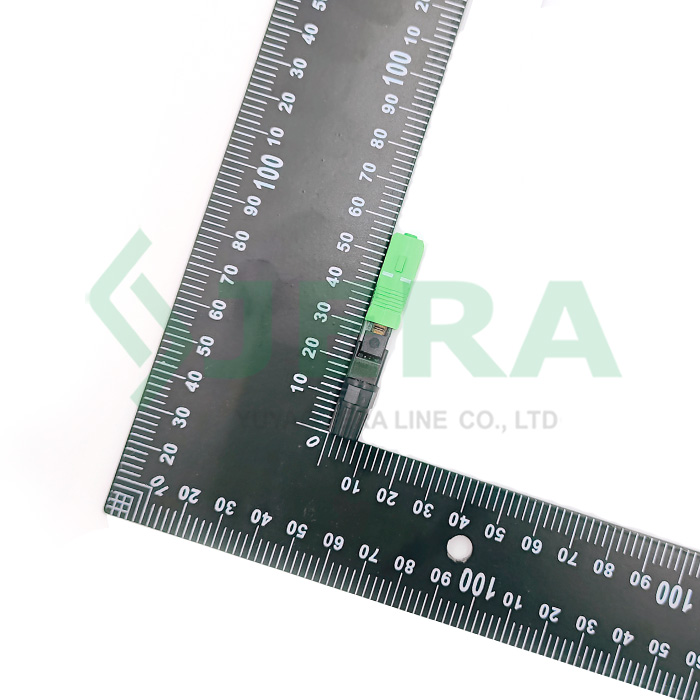

Dimension(mm)

50

Ferrule

Ceramic

Fiber Mode

9/125μm Singlemode
