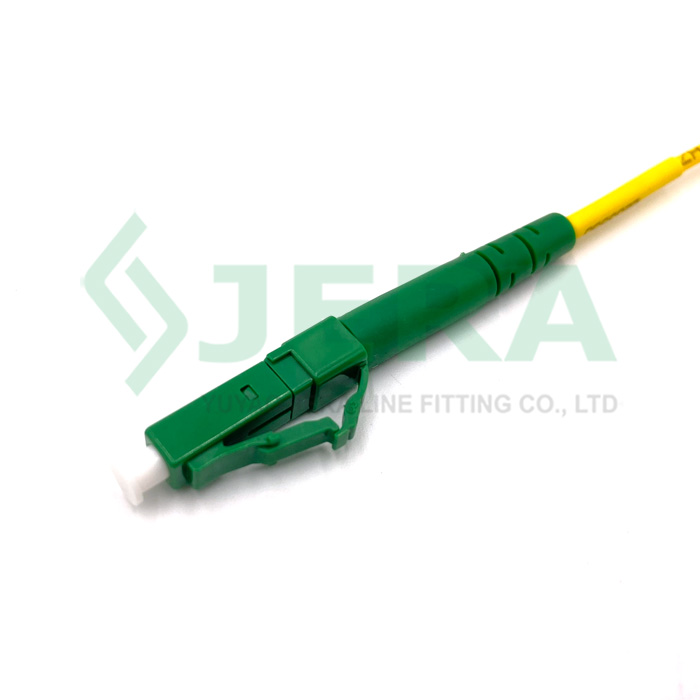

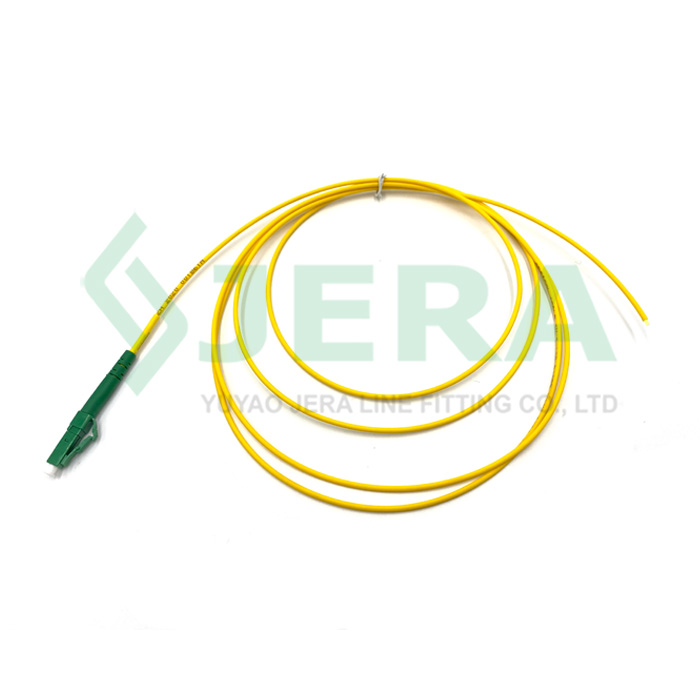

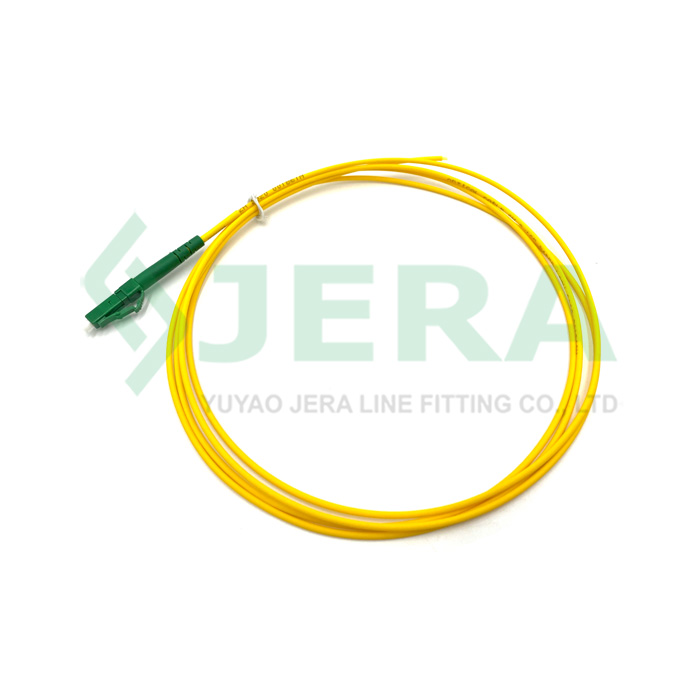

Fiber optic pigtail LC/APC
Fiber optic pigtail LC/APC
Description:
Fiber optic pigtail LC/UPC also called fiber LC pigtail used to terminated fiber optic cables by fusion splicing or mechnical splicing, provide rapidly and conveniently connect to CATV, optical switches or other telecommunication equipment during FTTH line constructions.
- Application: Outdoor/Indoor
- Fiber quantity: 1 fiber
- Cable dimensions: 0.9/2.0/3.0 mm
- Length：1.0 m
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Terminated with LC/APC connector
- Different cable length and diameter for various demands
- Low insertion loss and low back reflection loss
- Flexible and easy to peel fiber buffer
- 100% factory tested assemblies with traceable test date
- Conform to the criterion of GR-326-CORE and ROHS
- Direct factory price
SPECIFICATION
The cable patch cords consist of:
- The cable dimensions:
- Diameter: 0.9/2.0/3.0 mm
- Fiber quantity is 1 fiber.
- LSZH jacket sheath, UV protected.
Optical fiber of Single mode G657A2 grades of fiber standards.
LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.
APPLICATION
Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.
Manufacturing
Watch Our Factory Video
Technical specification
|
Model name |
Fiber optic pigtail |
|
Fiber type |
Single mode G652A2 |
|
Cable assemblies |
Simplex |
|
Jacket material |
LSZH |
|
Cable diameter, mm |
0.9/2.0/3.0 |
|
Length,m |
1.0 |
|
Connector type |
LC |
|
End face |
APC |
|
Working wavelength, nm |
1310/1550 |
|
Insertion loss, dB |
≤0.1 |
|
Return loss, dB |
≥60 |
|
Exchangeability |
≤0.2dB |
|
Operating temperature（℃） |
-40~85 |
|
Storage temperature（℃） |
-40~85 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
