Model No. :

Fiber optic pigtail LC/UPC

Description:

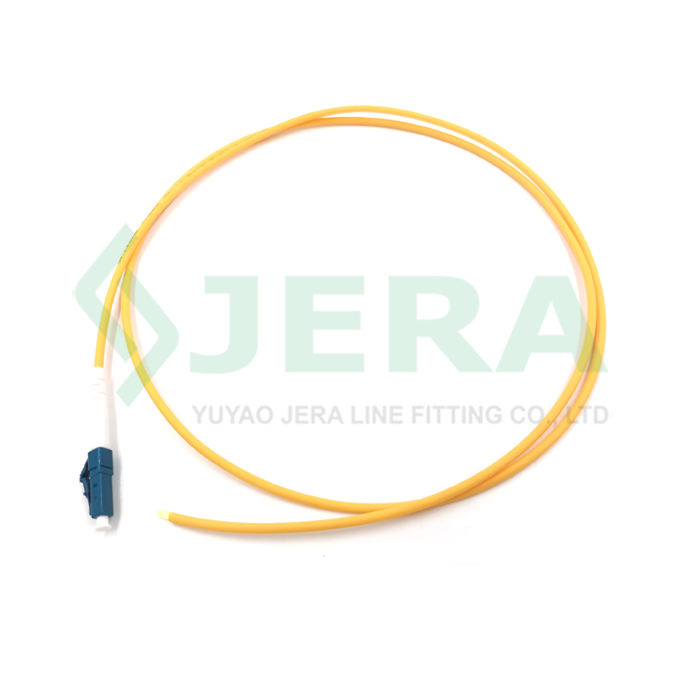

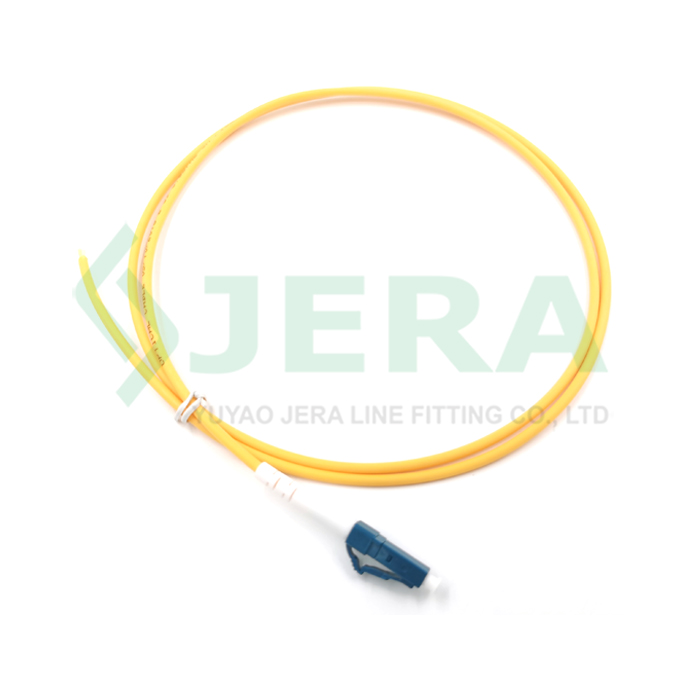

Fiber optic pigtail LC/UPC is a fiber optic cable capped at one end with LC/UPC connector, and the other end is a piece of broken end of fiber cable. The fiber optical pigtails provide rapidly and conveniently connect to CATV, optical switches or other telecommunication equipment during FTTH line constructions.

    • Application: Outdoor/Indoor
    • Fiber quantity: 1 fiber
    • Cable dimensions: 3.0 mm
    • Length:1.0 m
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Terminated with LC/UPC connector
  • Different cable length and diameter for various demands
  • Low insertion loss and low back reflection loss
  • Flexible and easy to peel fiber buffer
  • 100% factory tested assemblies with traceable test date
  • Conform to the criterion of GR-326-CORE and ROHS
  • Strong mechanical durability with competitive price
Fiber optic pigtail LC/UPC Fiber optic pigtail LC/UPC

SPECIFICATION

The cable patch cords consists of:

  • The cable dimensions:

- Diameter: 3.0 mm

  • Fiber quantity is 1 fiber.
  • PVC jacket sheath, UV protected.

Optical fiber of Single modeG652D, G657A1, G657A2 grades of fiber standards.

PVC is a plastic product with good insulating properties. This material has excellent mechanical and electrical properties, acid and alkali resistance, and good chemical stability. It is often used to make the insulation layer of wire and cable.

read more

APPLICATION

 Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

Manufacturing

    patch cord manufacture

Watch Our Factory Video

Technical specification

Model name

Fiber optic pigtail

Fiber type

Single mode G652A2

Cable assemblies

Simplex

Jacket material

PVC

Cable diameter, mm

3.0

Length,m

1.0

Connector type

LC

End face

UPC

Working wavelength, nm

1310/1550

Insertion loss, dB

≤0.1

Return loss, dB

≥60

Exchangeability

≤0.2dB

Operating temperature(℃)

-40~85

Storage temperature(℃)

-40~85



Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test
