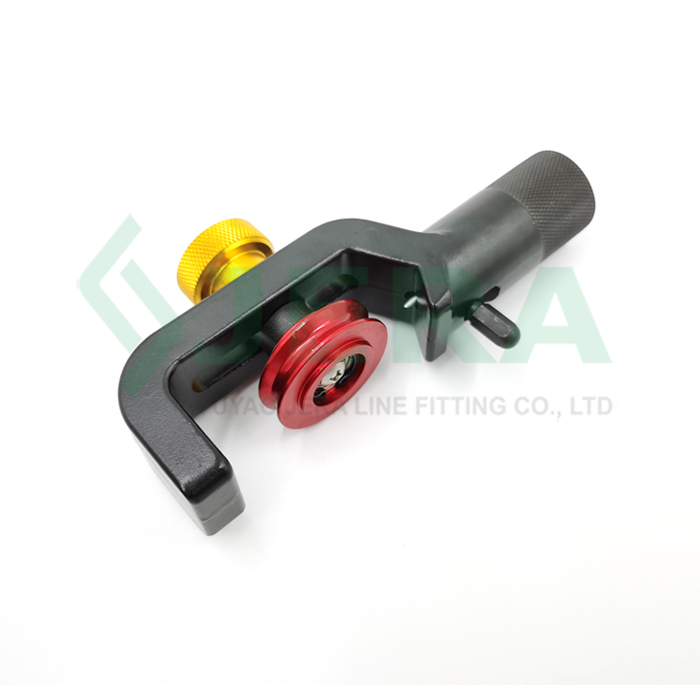

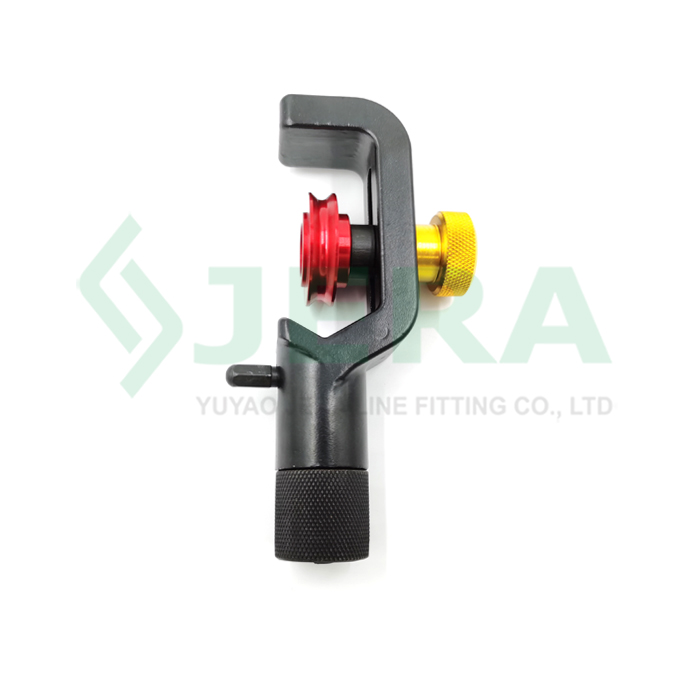

Fiber optic cable stripper FT-2

FT-2

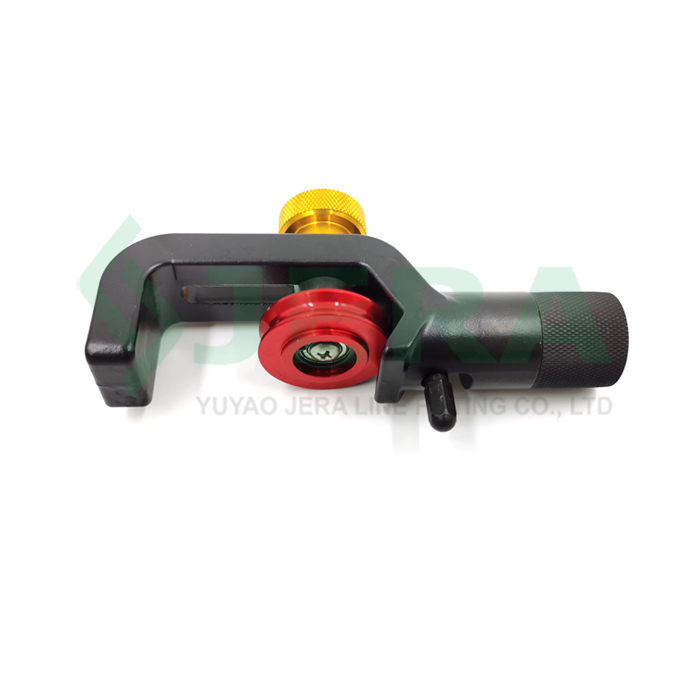

FTTH fiber cable slitter either called armoured cable stripping knife, is a special tool developed for ADSS cables or other sheathed or armored ftth cables. This ADSS cable slitter is mainly to cut off the armored sheath of cable to obtain the internal fiber optic wire.
Fiber optic cable stripper FT-2
Features
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Light weight and compact
  • Adjustable peeling outer diameter 4-10mm, cutting depth 5.5mm
  • The stripping tool can cut the outer polyethylene jacket and armor of the cable at one time
  • The guide wheel can ensure the stability of the cable and make the tool easier to move along the cable
  • The blade is made of hard alloy steel, with sharp edges, which ensure efficiently
  • Competitive price
Fiber optic cable stripper FT-2 Fiber optic cable stripper FT-2

SPECIFICATION

FTTH fiber cable slitter either called armoured cable stripping knife, is a special tool developed for ADSS cables or other sheathed or armored ftth cables. This ADSS cable slitter is mainly to cut off the armored sheath of cable to obtain the internal fiber optic wire.

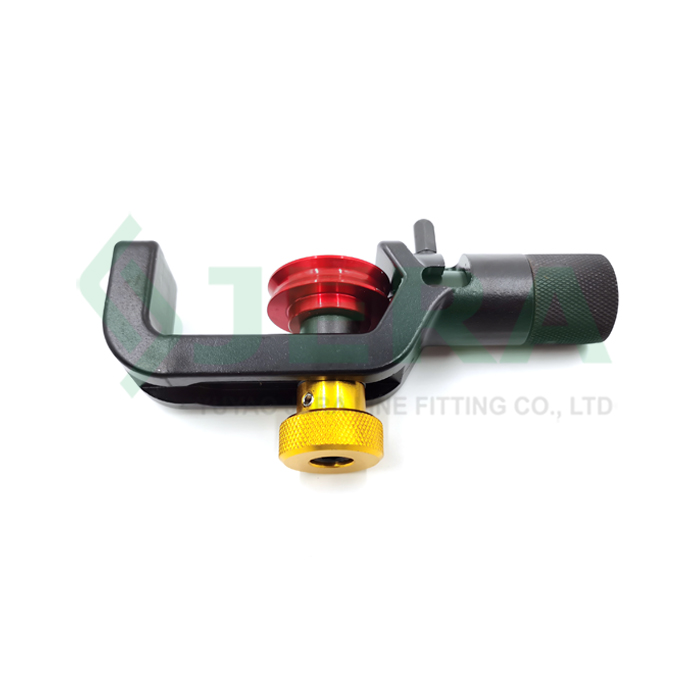

The design of FTTH Fiber Cable Jacket Slitter is appropriate for multi-core optical cable which has sleeve or armored sheath. The tool is made of high quality steel and alloy, surface is treated with anti-rust which will guarantee long time usage.

read more

APPLICATION

This armored cable stripper is designed with a high-precision adjustable blade to avoid damage to the optical fiber, and the blade can be replaced. Rotating the pull rod can rotate the blade 90°, so that by peeling off the window can realize the conversion of longitudinal cutting or circular cutting.

The outer diameter of the peeling can be adjusted to 4-10mm, and the cutting depth can be adjusted to 5.5mm, which is suitable for different sheath thicknesses. The tool with guide wheels can ensure the stability of the cable during the stripping process, and the tool is easy to operate in the direction of the cable.

Jera is a direct factory who produces fiber optic cable and relevant accessories for aerial FTTH deployments. Welcome to send inquiry for this fiber cable stripping tool price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Code

Stripping Diameter

Blade depth

Weight

Material

Product size

FT-2

4-10mm

Max 5.5mm

285g

Steel with antirust

130*58*26mm
