Drop Clamp for Flat FTTH Cable

Fiber Drop Clamp, Odwac-22p

Odwac-22p

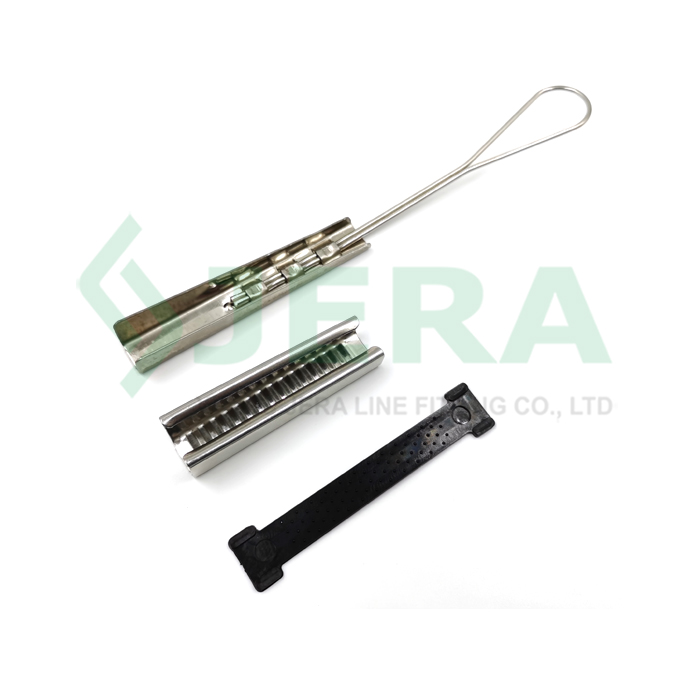

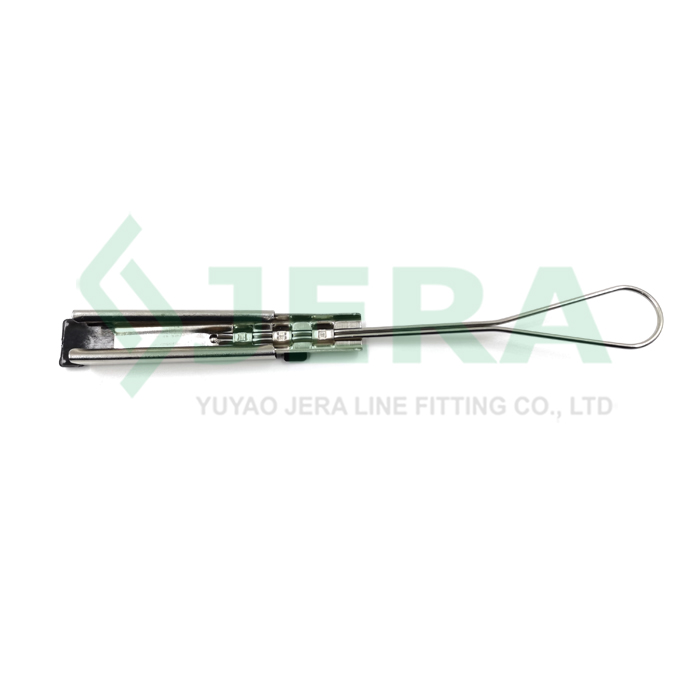

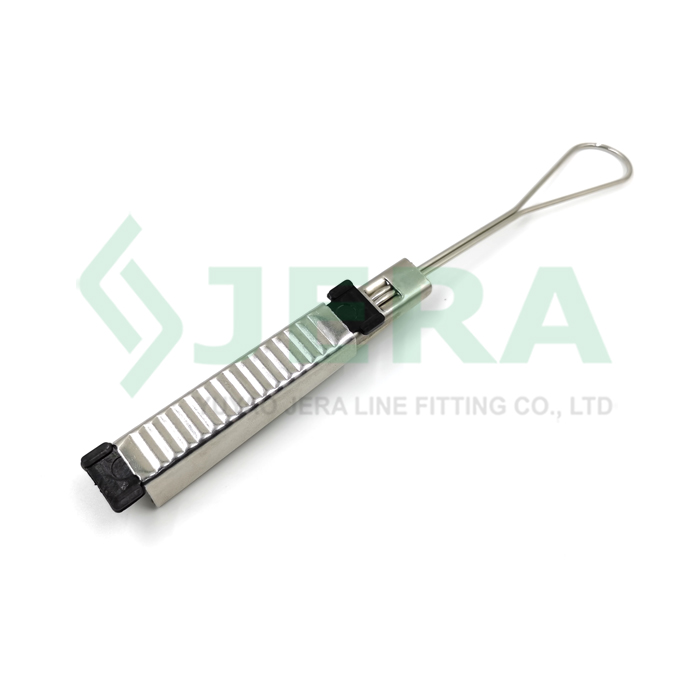

Fiber Drop Clamp Odwac-22p, other called drop wire clamp 2-pair stainless steel is designed to tension and suspension flat fiber optical cable or telephone drop wire cable on dead-end or intermediate routes during FTTH, FTTX, FTTB outdoor network constructions.
Fiber Drop Clamp, Odwac-22p
Features
    • Cable size:<5×<13 mm
    • Span:30-50 m
    • MBL: 0.8 KN
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Easy installation, tools free
  • High mechanical strength
  • Plastic shim, increase the fiber optical cable support
  • Stainless steel, UV resistant thermoplastic material, durable
  • Excellent environmental stability
  • Competitive price
Fiber Drop Clamp, Odwac-22p Fiber Drop Clamp, Odwac-22p

SPECIFICATION

The clamp applied in:

  • Cable diameter: <5×<13 mm
  • MBL, kN: 0.8

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The wire rope of the wire clamp is made of stainless steel 304. The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

read more

APPLICATION

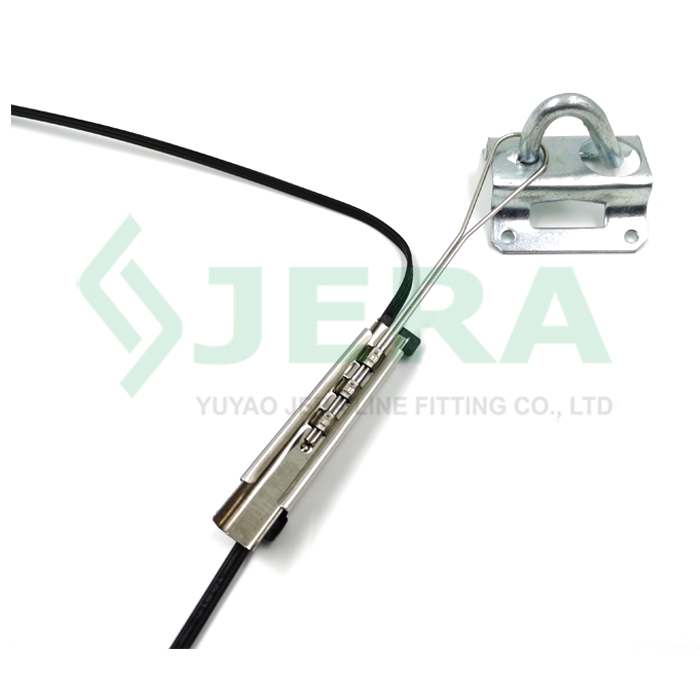

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

Manufacturing

fiber optic clamp manufacture

Watch Our Factory Video

Technical specification

Product code

Flat cable size (h×w) mm

Material

MBL,KN

Length,mm

ODWAC-22P

<5×<13

Stainless steel and UV resistant plastic

0.8

220
