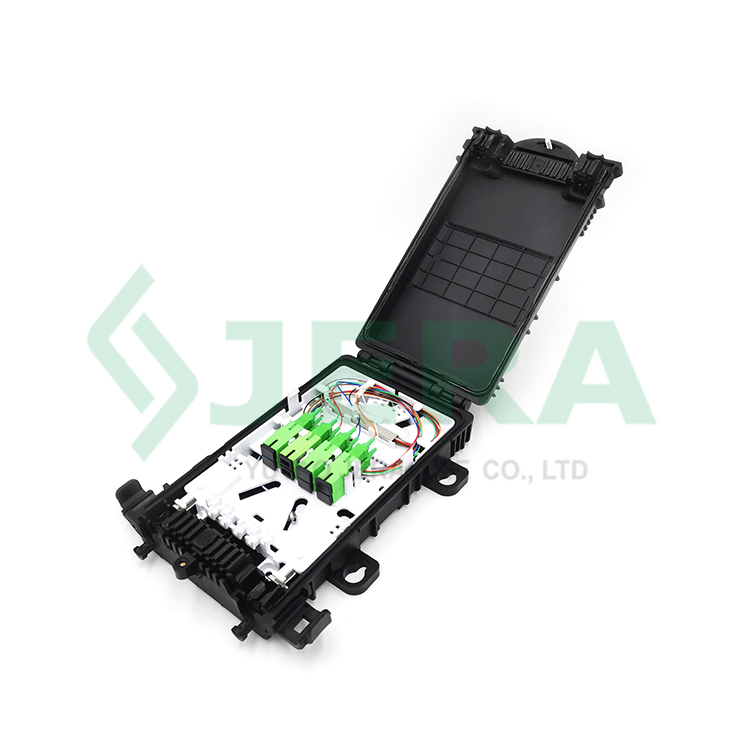

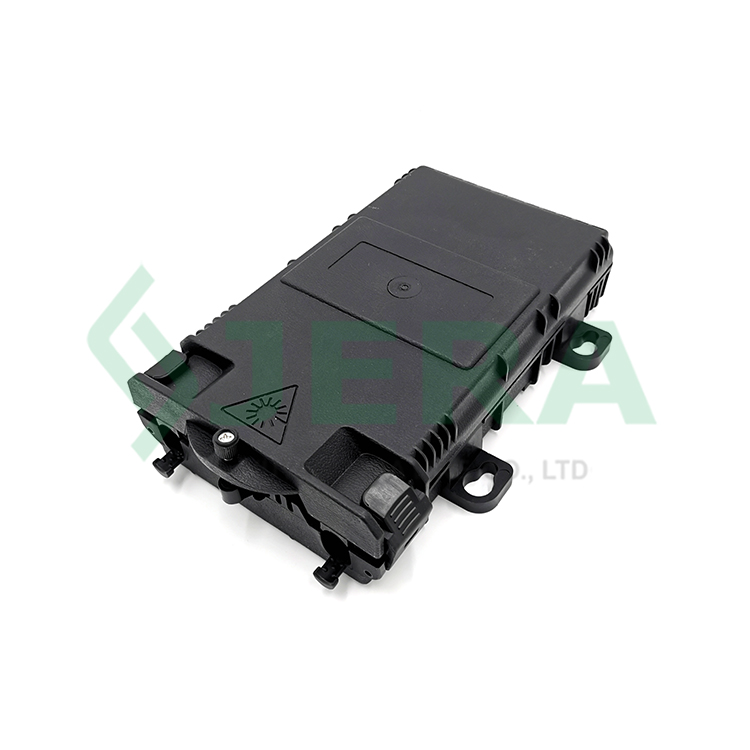

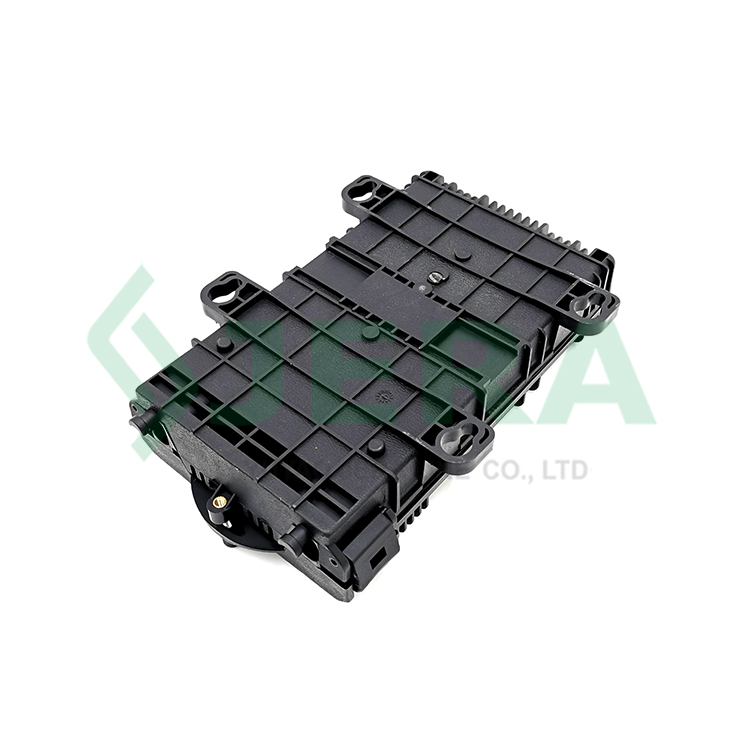

Fiber distribution box PBO G with adaptors and splitters

Fiber distribution box PBO G with adaptors and splitters is a device used in fiber optic networks to distribute and manage fiber optic cables. Designed to provide a secure and organized enclosure for fiber optic cables, ensuring efficient and reliable connectivity.

Features

Compact and lightweight modular design
Efficient cable managemen
Versatile connectivity, signal distribution
Gel sealing system
Up to 8 terminated or pre-terminated drops
Fair price

DESCRIPTION Specification Test

REVIEW

Jera supply fiber optical cable accessories for FTTH constructions and provide the whole kit of accessories to our customers, such as fiber optic cable, cable clamps, cable bracket, fiber optic termination boxes, PLC splitters, patch cord and so on.

Welcome to contact us for further details about these products.

Technical specification

Product code	PBO G
Fiber’s capacity	8
Inputs cable diameters, mm	2*Φ5-14
Output drop cables, mm	8×2.0*3.0 or 8×Φ3.0
Dimensions, mm	23015850
Adapters	10
Splitters	2×14 or 1×18

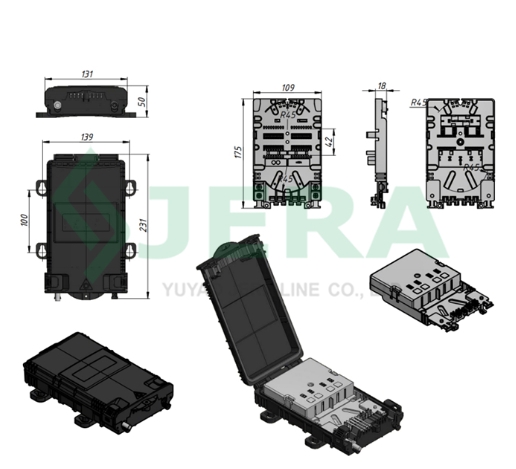

Drawing

Test

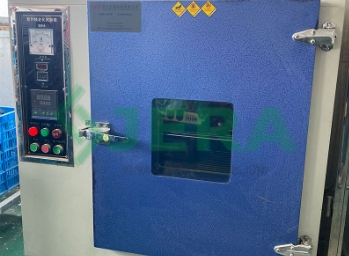

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
