Fiber optic distribution box, FODB-16Y

Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Fiber optic distribution box, FODB-16Y
Model No. :



16-core fiber termination box FODB-16Y is used to terminate feeding optic cable to drop cables or fiber cords, according to capacities of fiber termination outlet. Fiber optic distribution box can be installed indoor and water-proof design applicable for outdoor usage. Suitable for pole and wall installation.

    • Feeding cable: 2 of Ø17
    • Drop cable: 16 of Ø3
    • Max splicing capacity: 16
    • Adapter SC type: 16
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Separate splicing and drop cable deployment zones
  • 16 outputs for drop wire cable
  • 16 fiber optical adapter tray installation
  • Two 1*8 Fiber optical cassette splitter installation
  • IP 65 protection
  • Cable wire / Pole/ wall installations.
  • Both side cable input / output access
  • Stainless steel ties for solid input cable fixation
  • Plastic hanger locking
  • Optional configuration of fiber optic splice closure
Fiber optic distribution box, FODB-16Y Fiber optic distribution box, FODB-16Y

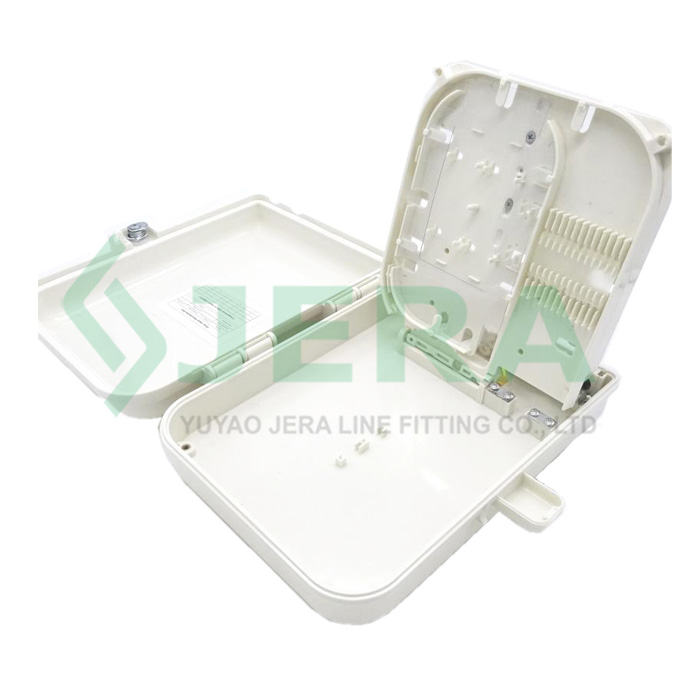

The cable boxes consist of:

  • The box dimensions:

- Length : 310 mm

- Width:225 mm

- Height: 73 mm

  • Max fiber splicing capacity: 16
  • Material: ABS

Fiber optic box is a connection device in fiber optic communication, which usually consists of a casing, a base, a plug board, a panel, a protection piece, and a distribution frame. The device is used to provide functions such as fiber optic cable connection, amplifier access, protection and distribution of fiber optic cable ends.

ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.

read more


Applied to outdoor walls or pillars, for connecting optical fiber lines and transmitting signals.

Applied to indoor, for Splicing indoor optical cables and protecting the pigtail.

read more


    fiber optic box manufacture

Watch Our Factory Video

Technical specification

Product code

Dimensions  (mm)


Input / Output




16 SC

In – 2 of dia 17 mm,

Out – 16 of max dia 3 mm

1*1*16, 2*1*8


Product Video


Factory picture



Cable OTDR

Tensile strength

Temp & Humi cycling

UV & temperature

Corrozion aging

Fire resistance
