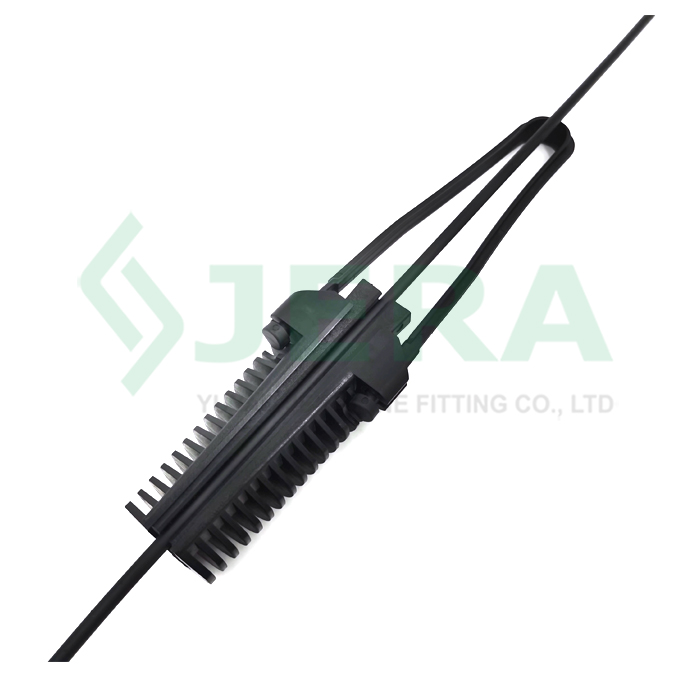

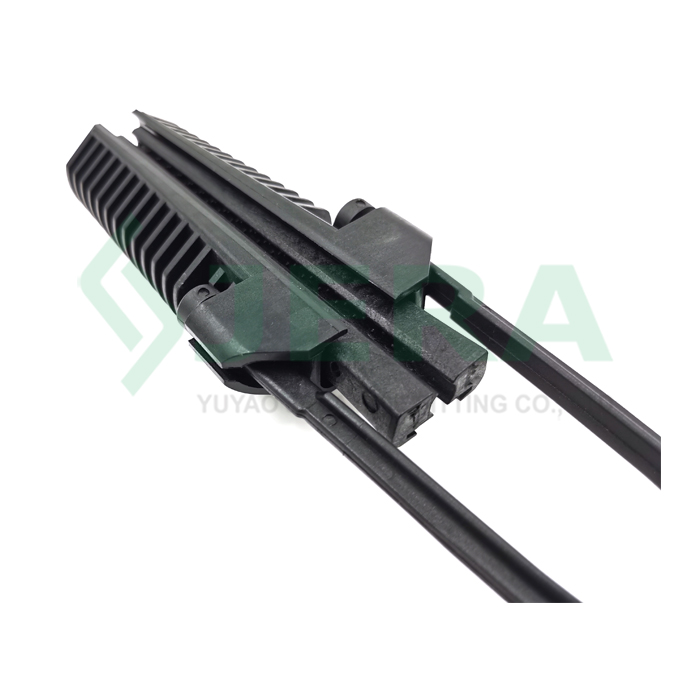

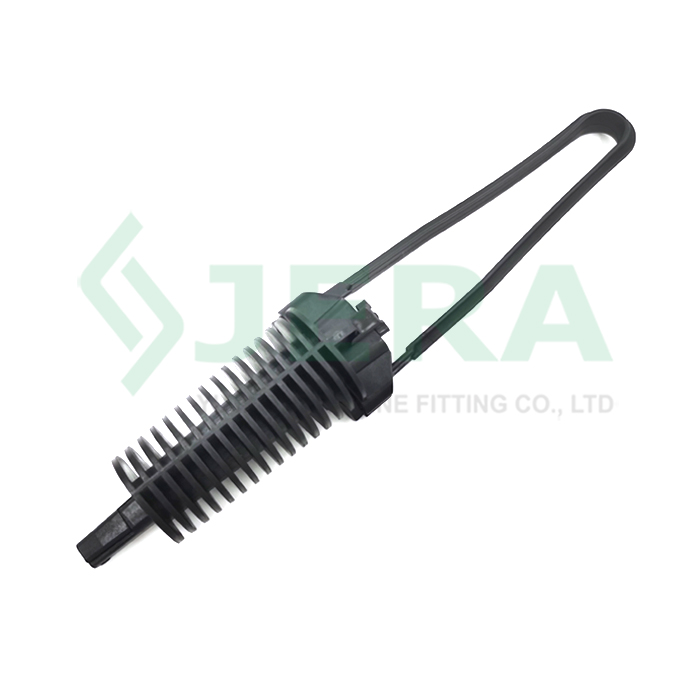

Fiber Cable ADSS Drop Clamp, PA-520 (4-8mm)

Key Features

• Self-adjustable wedge
• Suitable for 4-8mm diameter ftth round cable
• Simple, fast installation, no quire other tools
• Overall UV resistant thermoplastic guarantee long period usage
• Effective cable clamping due to the conical wedging system
• Without drop cable bending during installation
• Open bail allow easy installation on cross-arm or pole brackets
• Fair price

SPECIFICATION

The clamp applied in:

• Cable diameter: 4-8 mm
• MBL, kN: 2.0

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

APPLICATION

This clamp is suitable for installation on telecommunication poles, wall-mounted brackets, and suspension hardware in residential communities, apartment complexes, commercial buildings, and rural broadband projects. Its conical self-adjusting wedge system securely grips the cable without causing deformation or damage to the outer sheath, preserving the cable's mechanical and optical characteristics.

Manufactured from UV-resistant thermoplastic materials, the PA-520 offers excellent resistance to weathering, corrosion, and ultraviolet exposure. The tool-free installation significantly reduces deployment time and labor expenses, making it an ideal solution for rapid FTTH rollout projects and last-mile fiber optic access networks requiring dependable and economical cable fixation.
