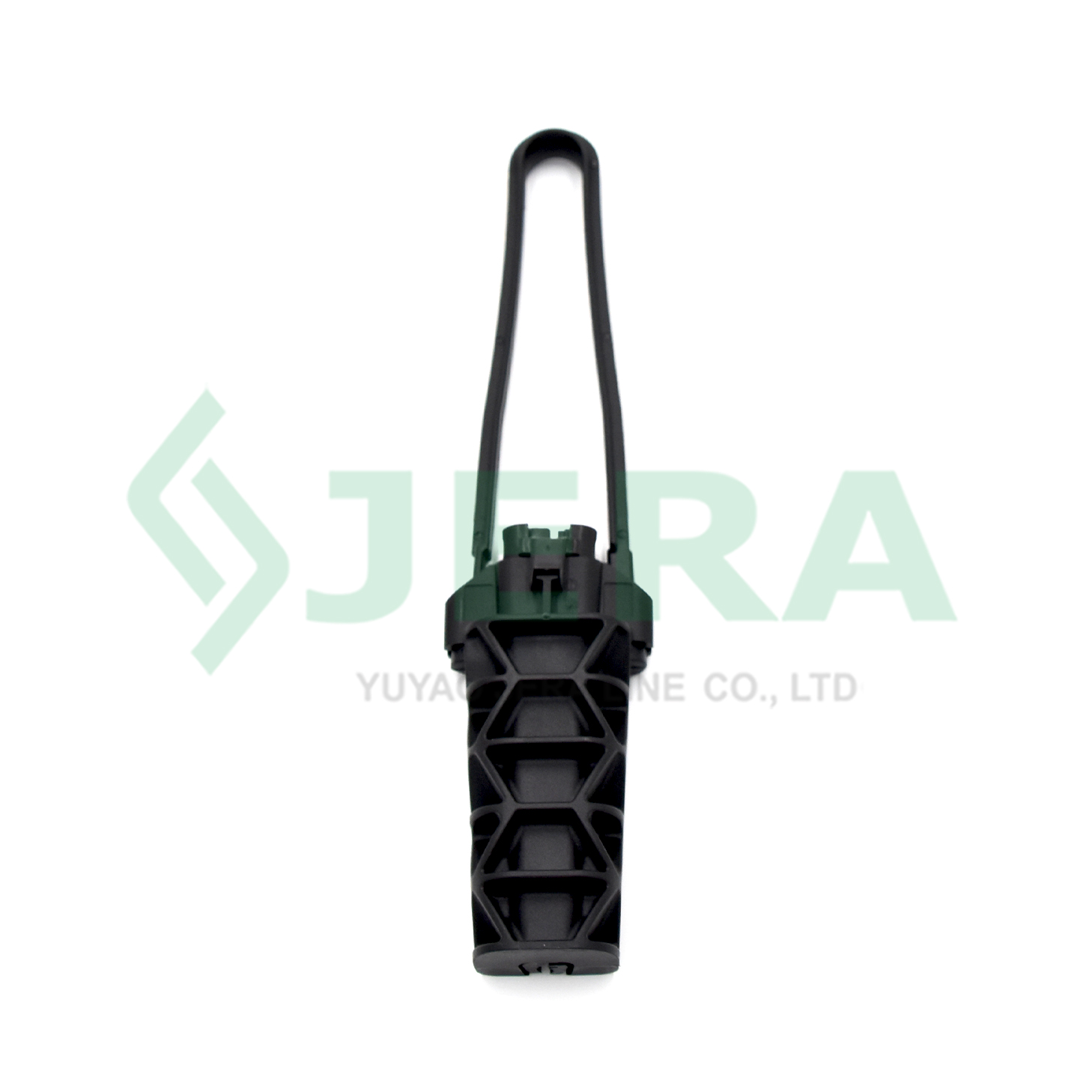

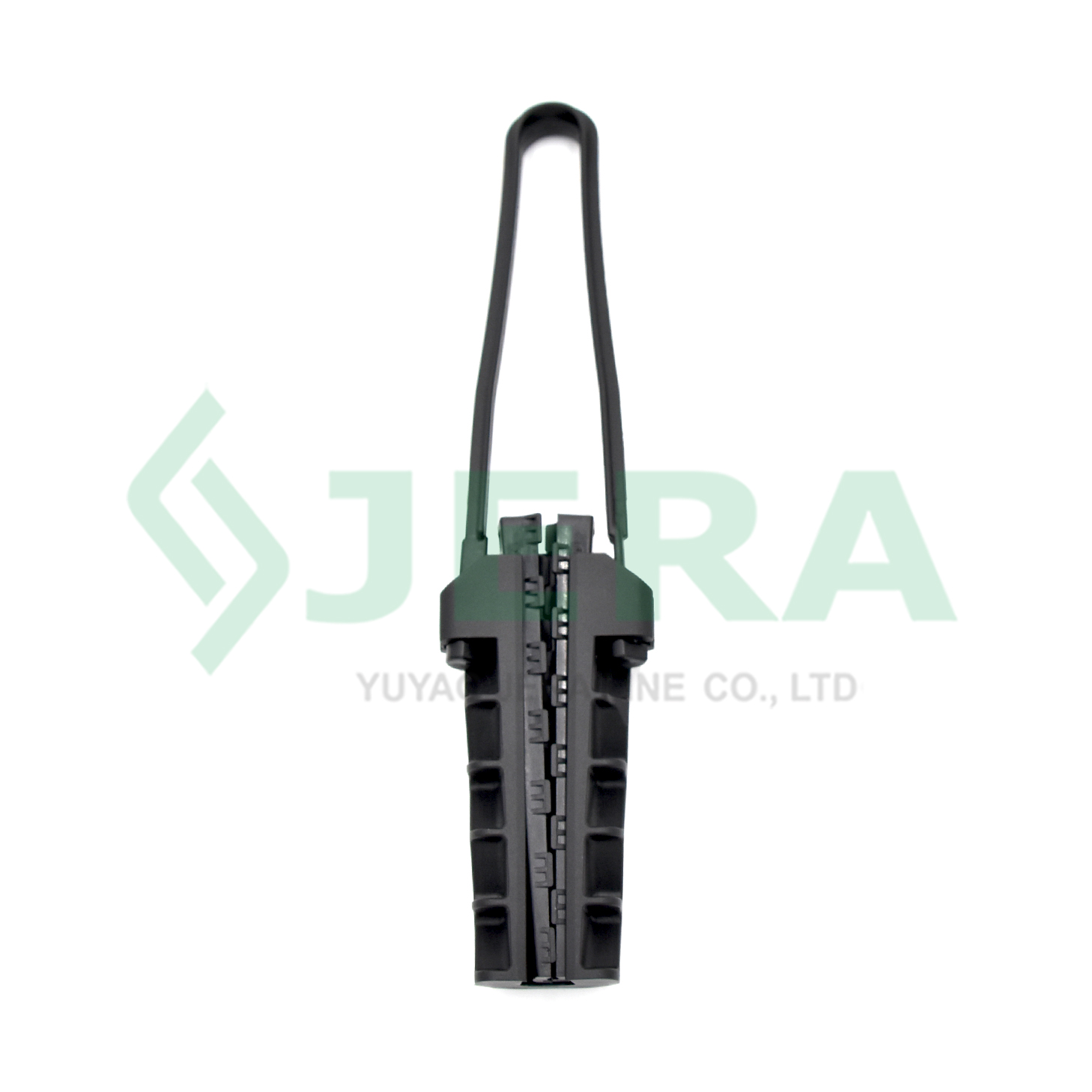

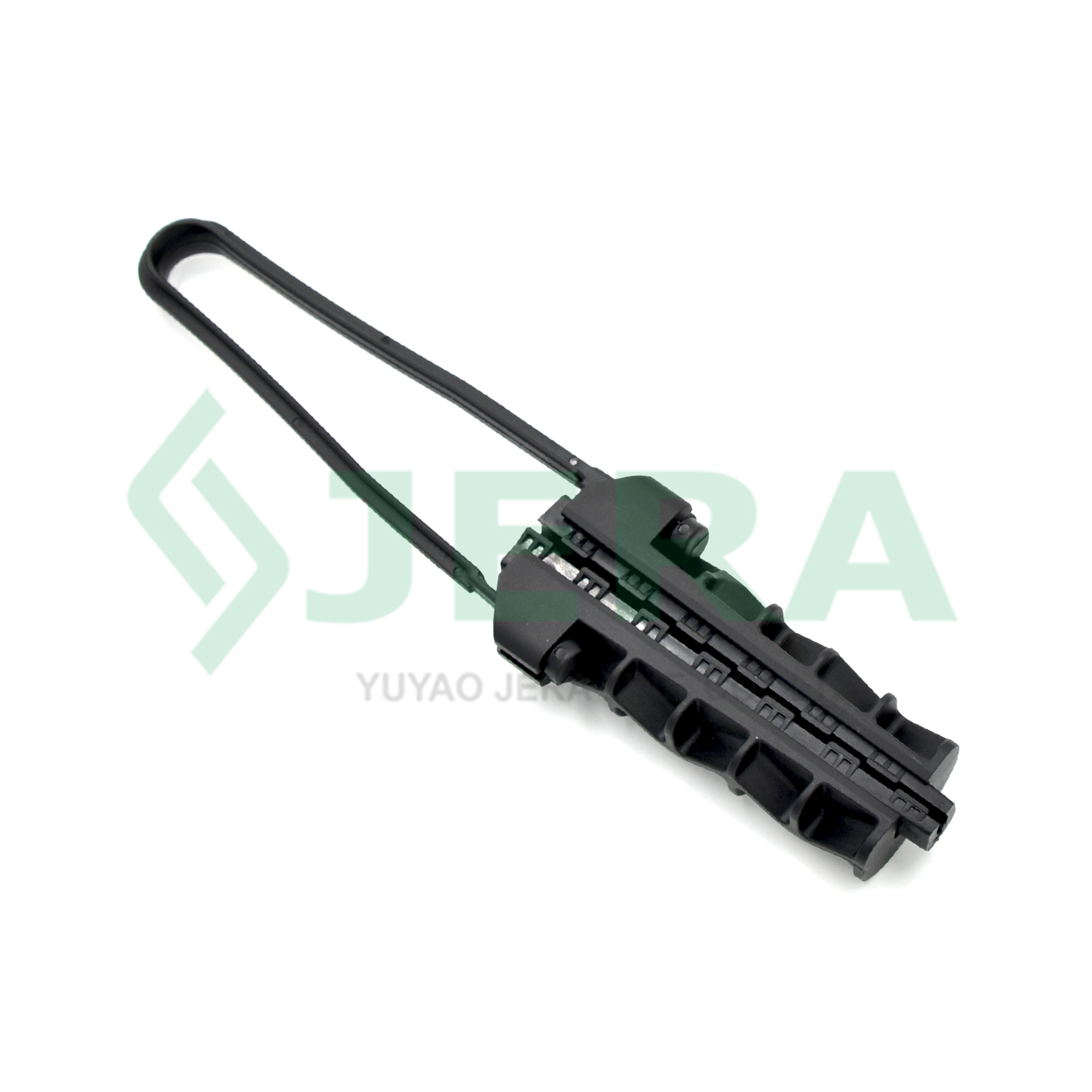

Drop cable tension clamp FTTH cable tension clamp PA-266
Drop cable tension clamp FTTH cable tension clamp PA-266
Description:
Drop cable tension clamp PA-266 also called FTTH cable tension clamp is designed to mount the drop ftth fiber cables on aerial networks, during deployment of ODN. The tension clamp is key part of constriction of ODN network. Jera Line produces the excellent mechanical performance properties fiber cable tension clamps, and can effectively attach the fiber cable and prevent it from being displaced or damaged, during outdoor application.
- Cable type: Round
- Cable size:3.0-8.0 mm
- Span:30-70 m
- MBL: 1.5 KN
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Full polymer dielectric clamp.
- Universal for Figure 8 with FRP messenger, ADSS, FTTH drop cables.
- Easy installation, tool free.
- Self-adjusting wedge, no damages of cables jacket.
- Outdoor UV resistant durable thermoplastic materials.
- Open wire bail allow easy installation with pole brackets and hooks.
- Competitive price
SPECIFICATION
installation steps:

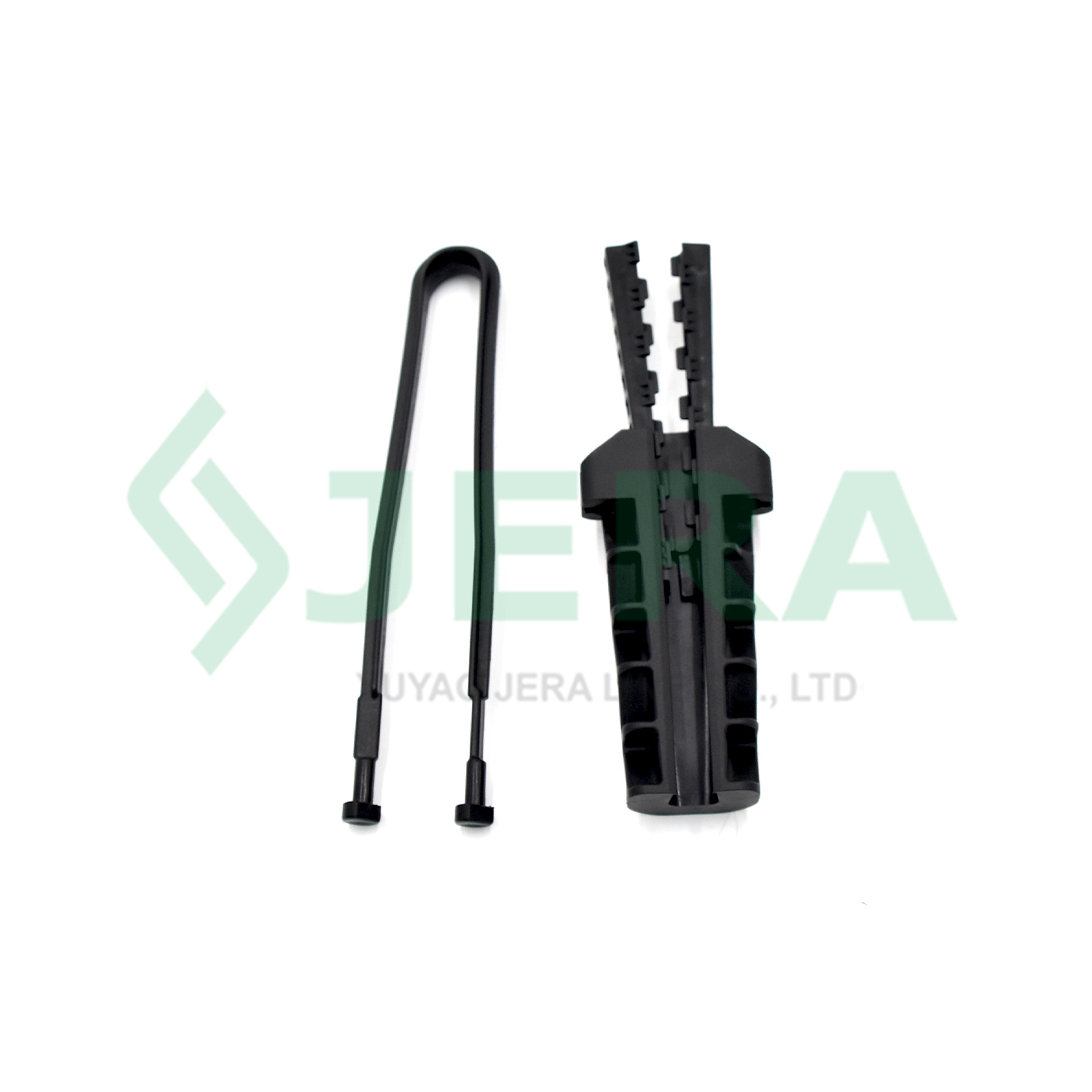

- Loosen the bail from the anchor clamp.
- Measure the distance from the pole bracket to the fiber cable with the clamp.
- Place the fiber cable inside the clamp, using the above measurements.
- Tighten the clamp, to fix the cable, then attach the bail of clamp to the pole bracket.
The Drop cable tension clamp specification:

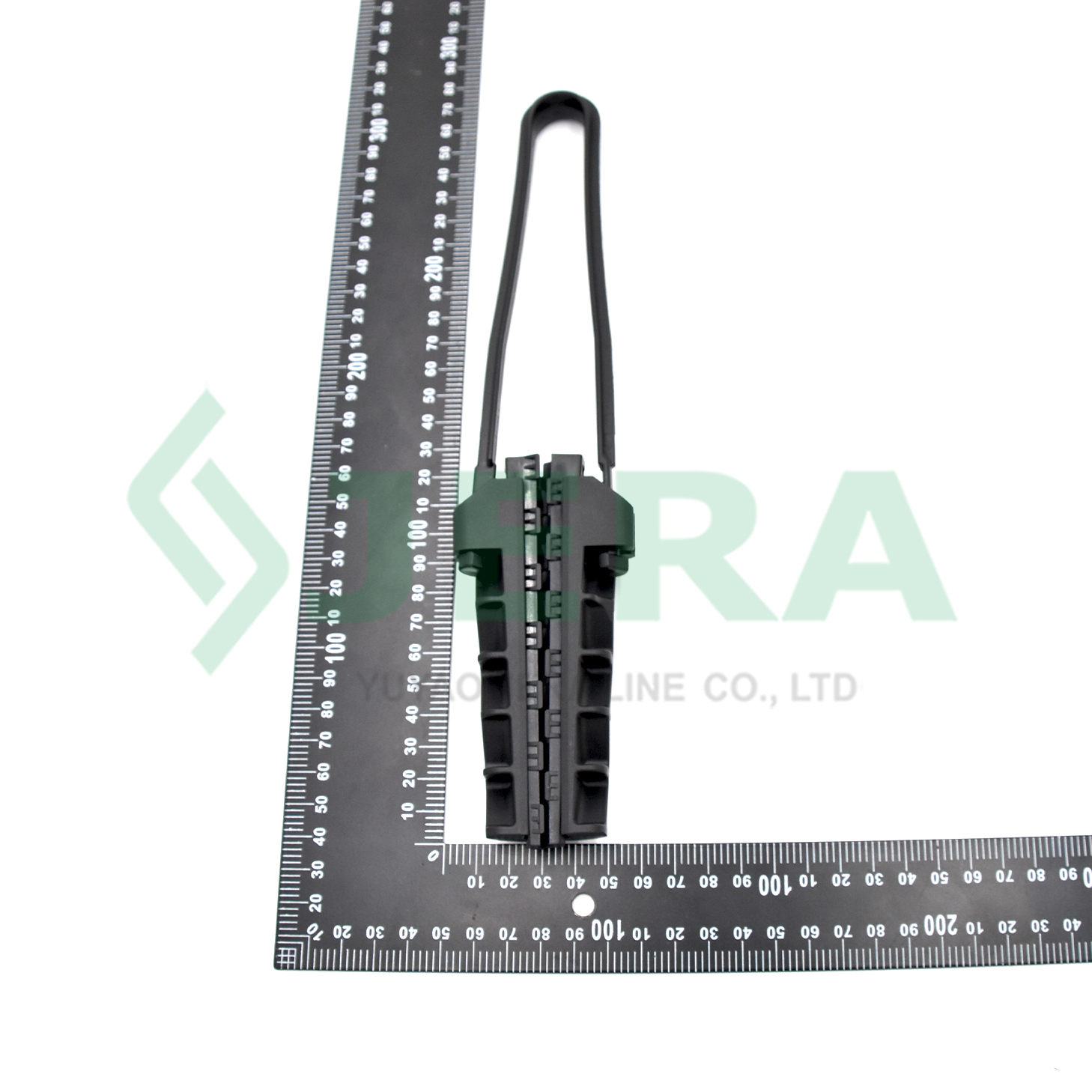

- Applied cables diameter: 3-8 mm
- MBL, kN: 1.5
Drop cable tension clamp FTTH cable tension clamp PA-266 is used to connect and fix the optical cables by its specific design which was proven by years of outdoor application.
The body shell is made of outdoor plastic with strong UV resistance, high temperatures range of application. As the result of applied materials by Jera line the FTTH cable tension clamp PA-266 is not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.
APPLICATION

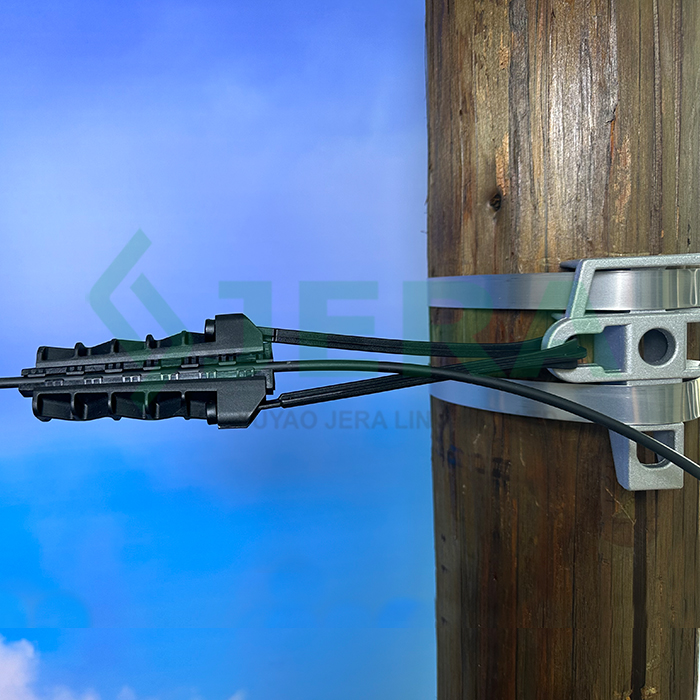

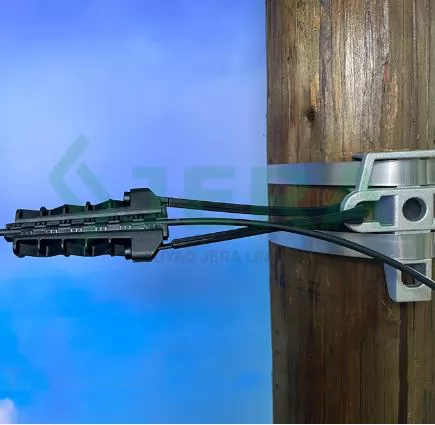

PA-266 ftth clamp applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.
Feel free to contact our sales team to ask for more information about drop cable tension clamp.
Watch Our Factory Video
Technical specification
|
Product code |
Cable diameter, mm |
Materials |
MBL,KN |
|
PA-266 |
3-8 |
UV resistant plastic |
1.5 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test

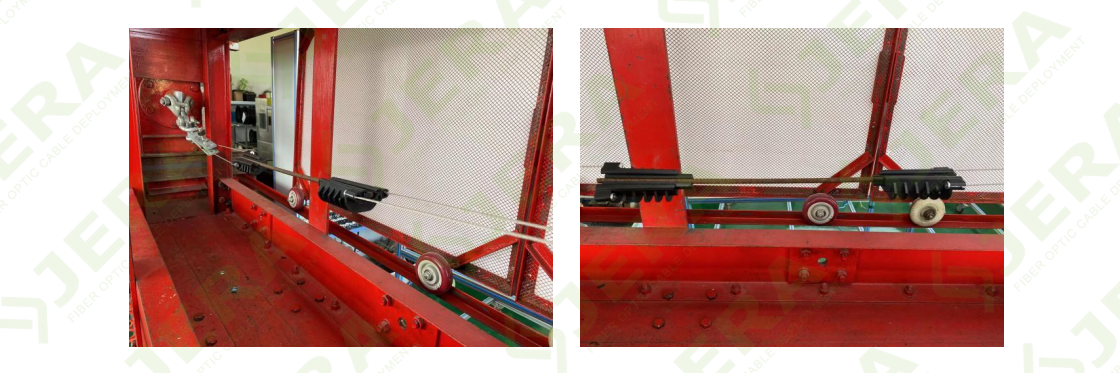

Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
