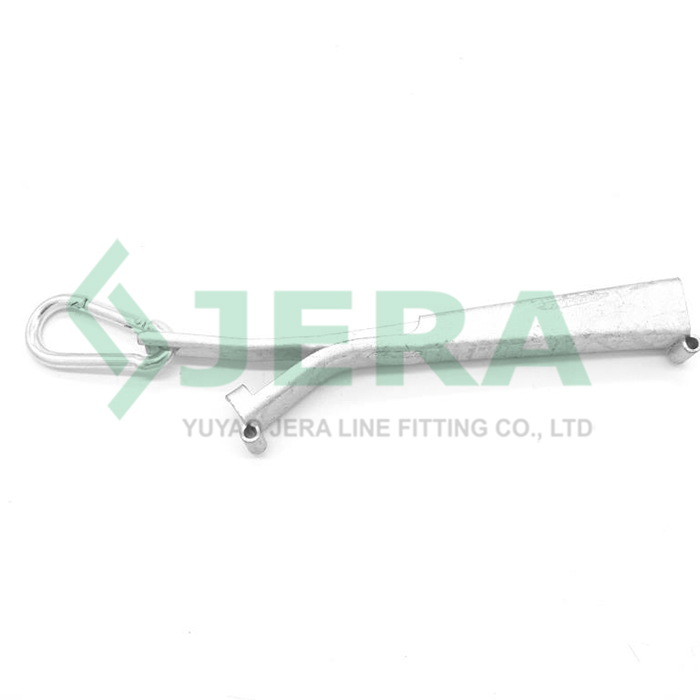

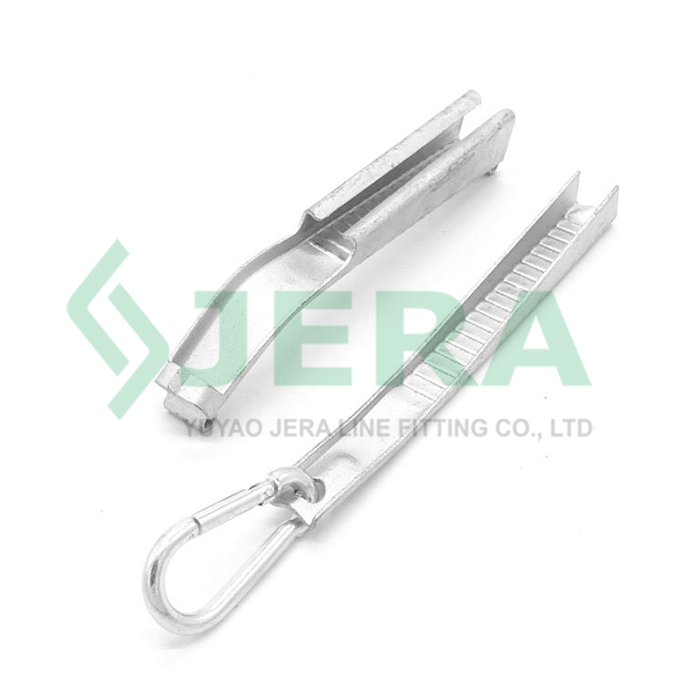

Drop cable clamp, ODWAC-L

Drop cable clamp ODWAC-L, other called flat drop cable tension clamp is designed to tension and support flat fiber optical cable on dead-end or intermediate routes during FTTH network constructions.

Features

Self-adjusting wedge
Easy installation and removable
Anti-drop wire bail design
Dacro steel material corrosion resistant and durable
Dimpled shims protect cable jacket from damaging
Excellent environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

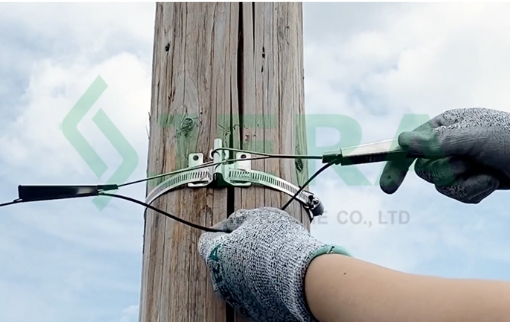

The ODWAC-L drop cable clamp is designed for anchoring flat FTTH drop cables during last-mile fiber optic network deployments. It is widely used on utility poles, building facades, and wall-mounted installations where reliable cable tensioning is required. The clamp secures drop cables without damaging the cable jacket, ensuring long-term network stability and signal performance.

Suitable for aerial FTTH distribution networks, the ODWAC-L clamp can be installed quickly without special tools, reducing installation time and labor costs.

It is an ideal solution for residential broadband connections, telecommunications operators, and fiber-to-the-home projects in urban and rural environments.

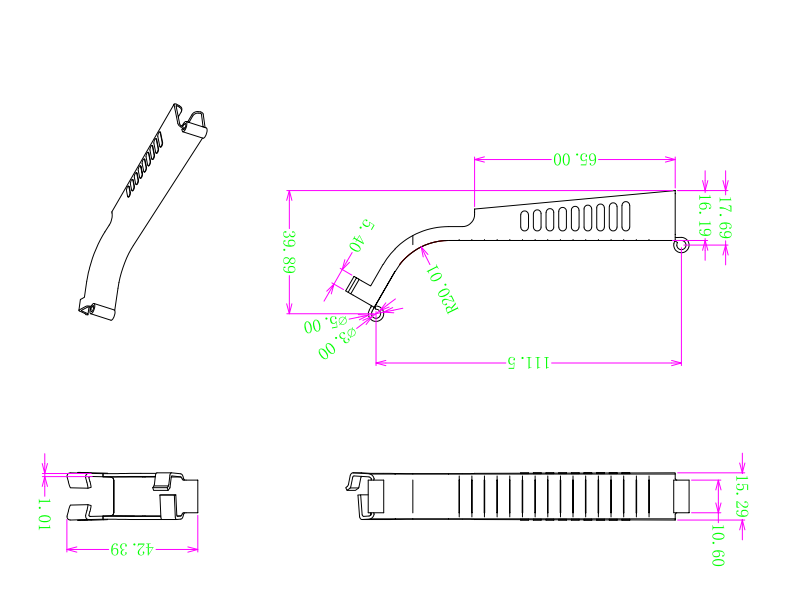

Technical specification

Product code	Flat cable size (h×w) mm	Material	MBL,KN
ODWAC-L	<6×<13	Body:Dacro steel Hook: zink plating steel	1.0

TEST

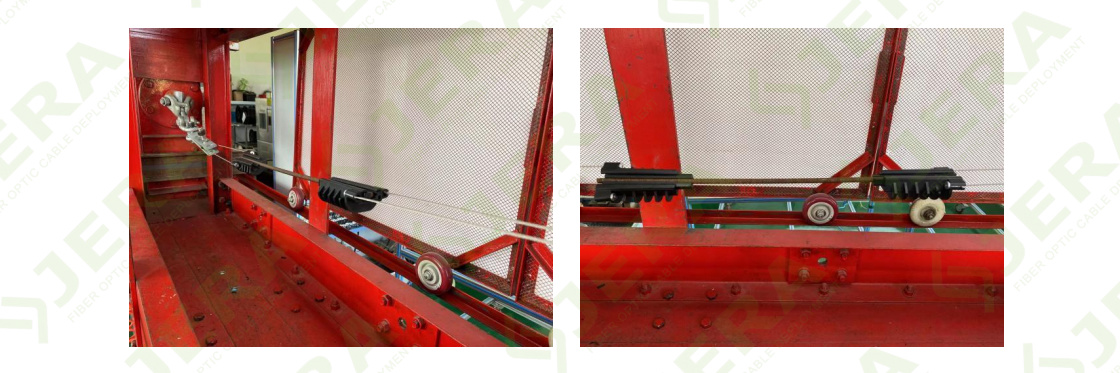

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
