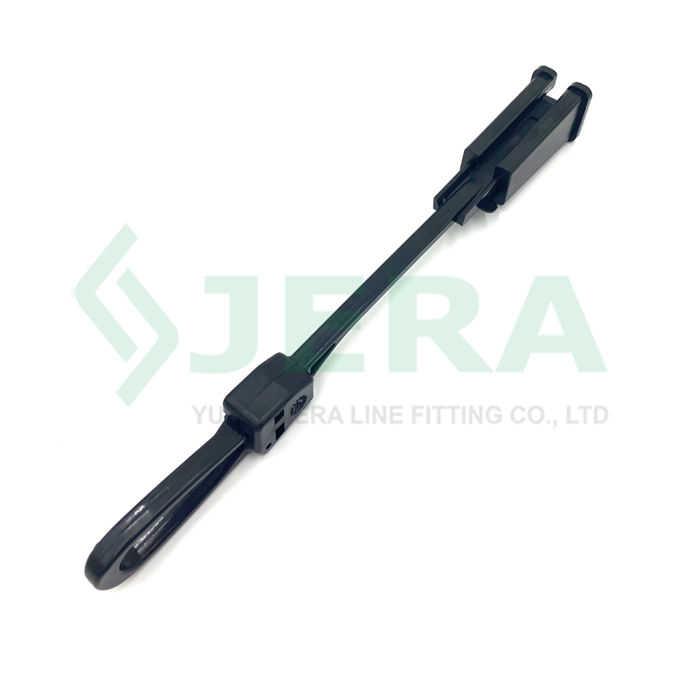

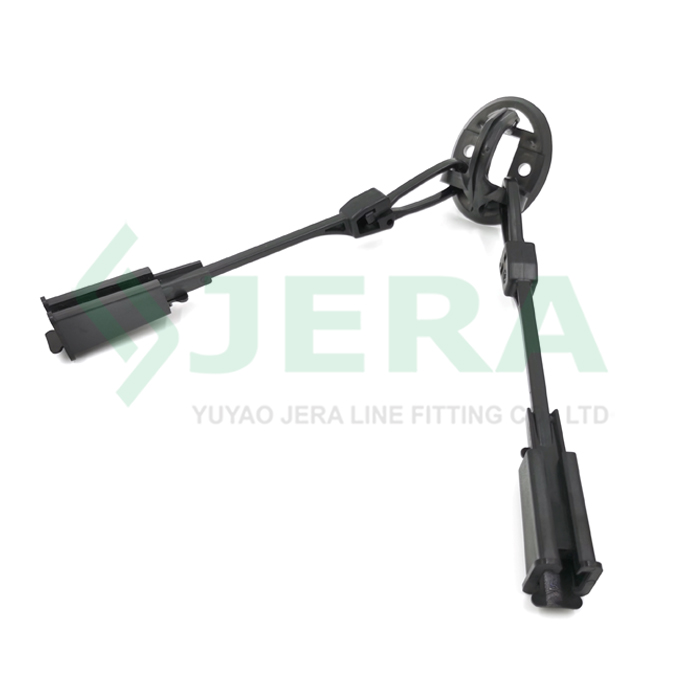

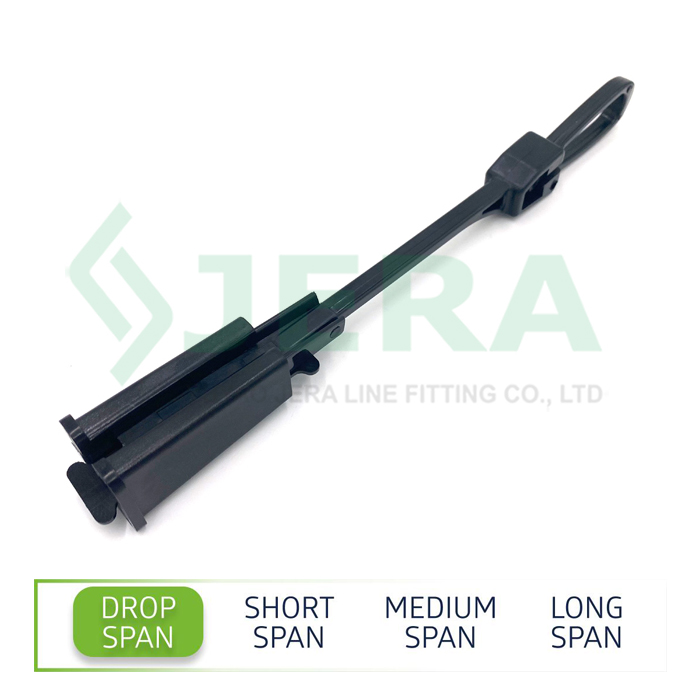

Plastic drop clamp, ODWAC-PY

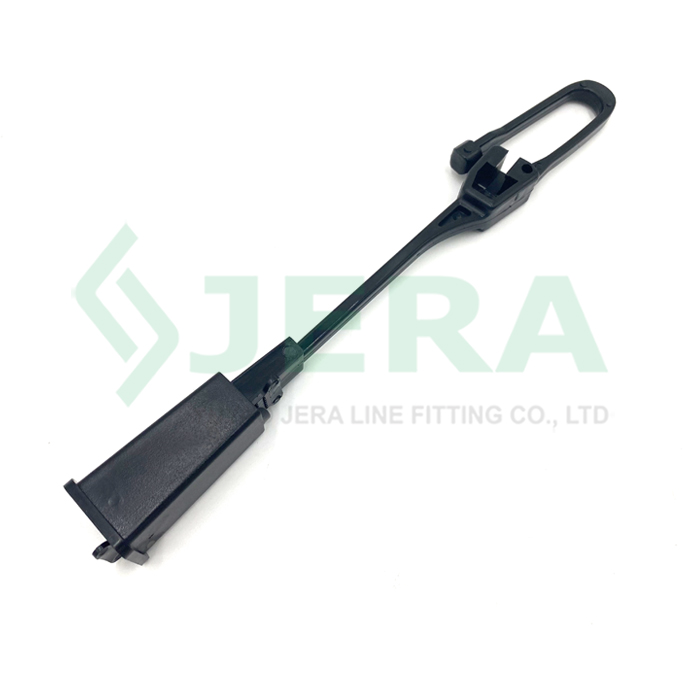

Plastic drop clamp ODWAC-PY, other called Ftth Drop Wire Clamp is designed to tension and support flat fiber optical cable on dead-end or intermediate routes during FTTH network constructions.

Features

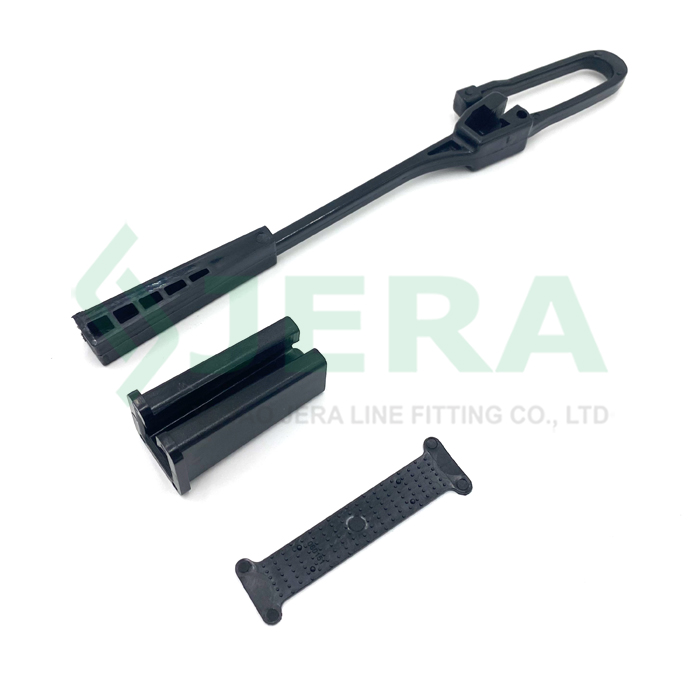

Self-adjusting wedge
Easy installation, tools free
Anti-drop wire bail design
Full dielectric UV resistant thermoplastic, durable
Excellent environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

The ODWAC-PY plastic drop clamp is intended for tensioning and anchoring flat drop cables in FTTH distribution networks. It provides a cost-effective and reliable solution for connecting subscribers to the main fiber optic network while maintaining proper cable tension.

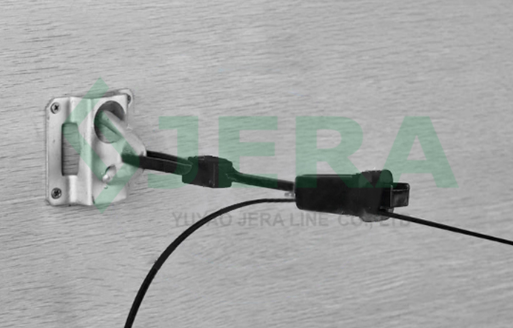

The clamp is frequently installed on poles, facades, and building entry points. Manufactured from UV-resistant engineering plastic, it ensures long service life in outdoor environments. The ODWAC-PY is suitable for residential, commercial, and rural broadband installations where quick deployment and secure cable retention are essential.

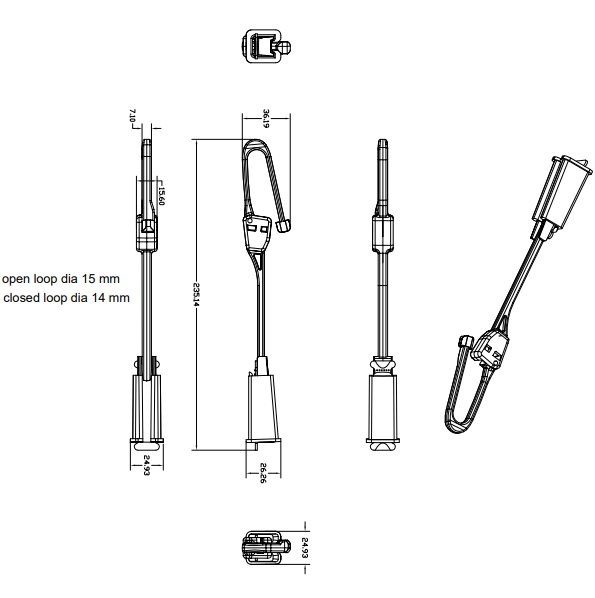

Technical specification

Product code	Flat cable size (h×w) mm	Material	MBL,KN
ODWAC-PY	<4×<8	UV resistant plastic	0.5

TEST

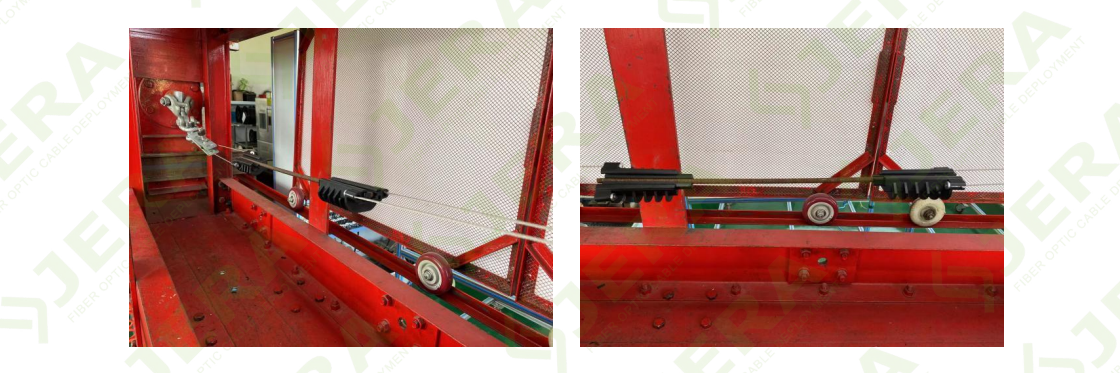

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
