Bare steel tube PLC splitter 1×4
Bare steel tube PLC splitter 1×4
Description:

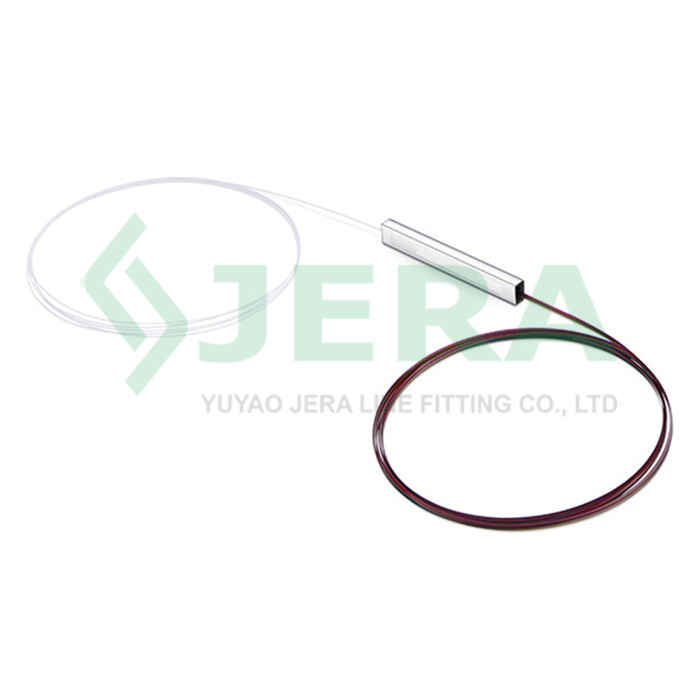

Bare steel PLC splitter 1×4 also called PLC bare fiber splitter is a network component used to instributes incoming light power in equal parts towards multiple output fibers, widely used in FTTx line deployment.
-
Type: 1×4
- Adapter type: SC
- Polish type: APC
- Area: Indoor
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Compact size
- Low insertion loss(IL)
- Low polarisation dependant loss(PDL)
- Uniform power splitting
- Wide operating wavelength
- Goog environmental stability
- Comply to GR-1221 & GR-1209
- Fair price
SPECIFICATION
Bare steel PLC splitter 1×4 also called PLC bare fiber splitter is a network component used to instributes incoming light power in equal parts towards multiple output fibers, widely used in FTTx line deployment.
PLC splitters provide a cost-effective and space-saving network solution in optical transmission systems. Bare fiber optic PLC splitters have no fiber optic connectors and can be spliced with fibers in distribution cables and drop cables. As a passive optical splitter, bare fiber PLC splitter is widely used in FTTH passive optical network, including EPON (such as EPON splitter) and GPON (such as GPON splitter).
APPLICATION
Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards. Test including insertion and return losses test, temperature and himidity cycling test, corrosion aging test, fire resistance test and etc.
Jera line is a direct manufacturer of fiber optic cable, we provide a whole solution for FTTX indoor and outdoor deployment. Product including drop cable clamps, ADSS cable clamps, cable bracket, fiber optic termination boxes, fiber optic splice closures, adapters, fiber optic patchcords and so on.
Feel free to contact us for more infomation about this Bare steel tube PLC splitter 1×4 price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Type |
1×4 |
|
|
Operating wavelength (nm) |
1260-1650 |
|
|
Optical fiber thickness,mm mmmm |
0.9 |
|
|
Optical fiber type |
G657A1,G657A2 |
|
|
Insertion loss(dB) |
Typical |
10.5 |
|
Maximum |
10.7 |
|
|
Uniformity(dB) |
Typical |
0.6 |
|
Maximum |
0.8 |
|
|
Polarization Dependent Loss(dB) |
Typical |
0.15 |
|
Maximum |
0.25 |
|
|
Wavelength dependent Loss(dB) |
Typical |
0.15 |
|
Maximum |
0.3 |
|
|
Return loss(dB) |
Maximum |
55/50 |
|
Directivity(dB) |
Maximum |
55 |
|
Operating temperature ℃ |
-20 to 85 |
|
|
Storage temperature ℃ |
-40 to 85 |
|
|
Optical fiber length (m) |
0.5, 1.0, 1.5 |
|
