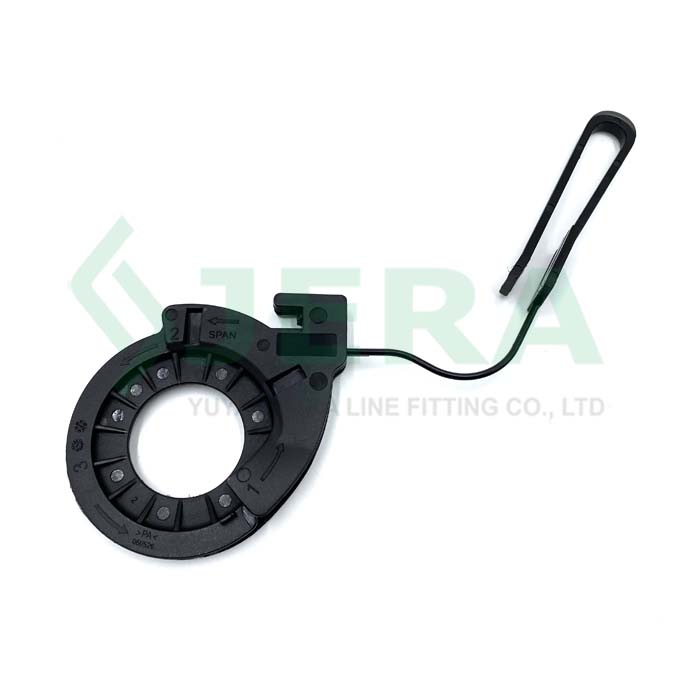

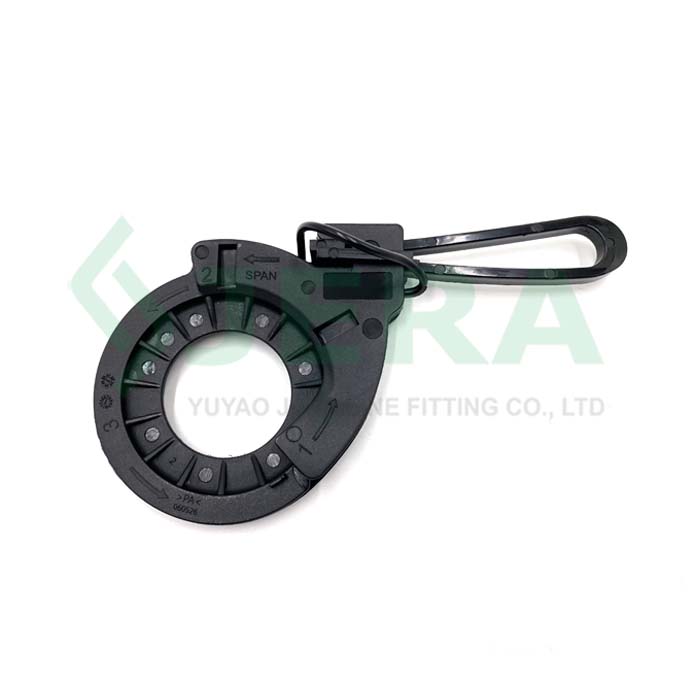

ADSS drop cable anchor clamp Fish-5

Key Features

• Unlosable components with small width body
• Suitable for round fiber optic cable
• Easy installation without additional tools
• UV resistant thermoplastic guarantee for long time usage
• Excellent environmental stability
• Competitive price

SPECIFICATION

The clamp applied in:

Cable diameter: 4-6.2 mm

MBL, kN: 0.8

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The wire rope of the wire clamp is made of stainless steel 304. The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

APPLICATION

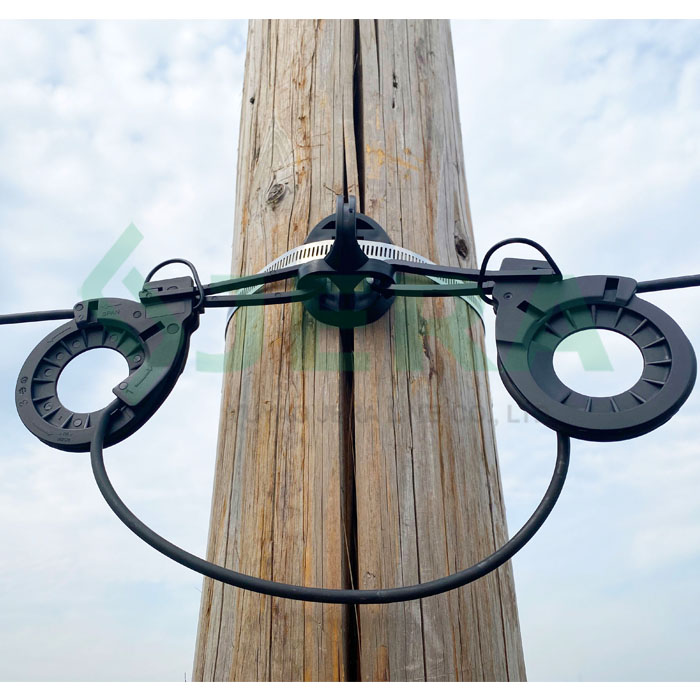

The FISH-5 anchor clamp is designed for securing ADSS and fiber optic drop cables in aerial telecommunication networks. It is widely used in FTTX deployments, utility pole installations, and broadband infrastructure projects requiring reliable cable anchoring.

This clamp provides strong mechanical holding force while protecting the cable from excessive tension and environmental stress.

It is suitable for long-span and medium-span aerial installations in both urban and rural areas. The FISH-5 is commonly used in fiber optic backbone extension, last-mile connectivity, and network modernization projects.
