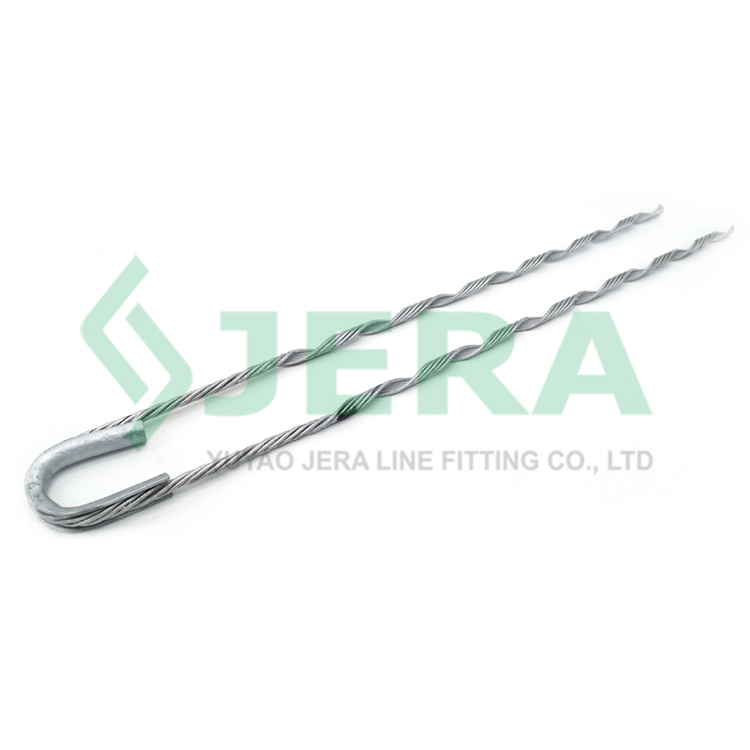

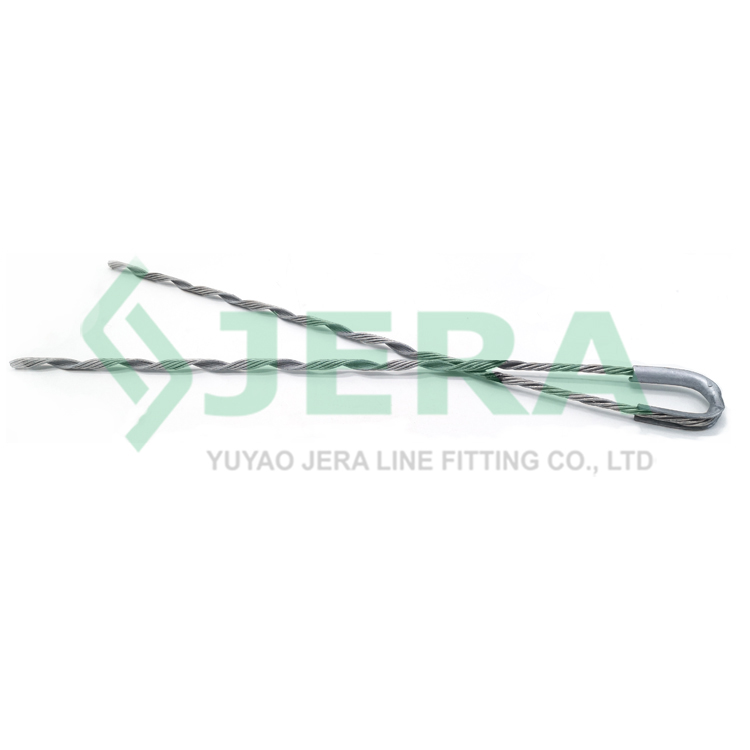

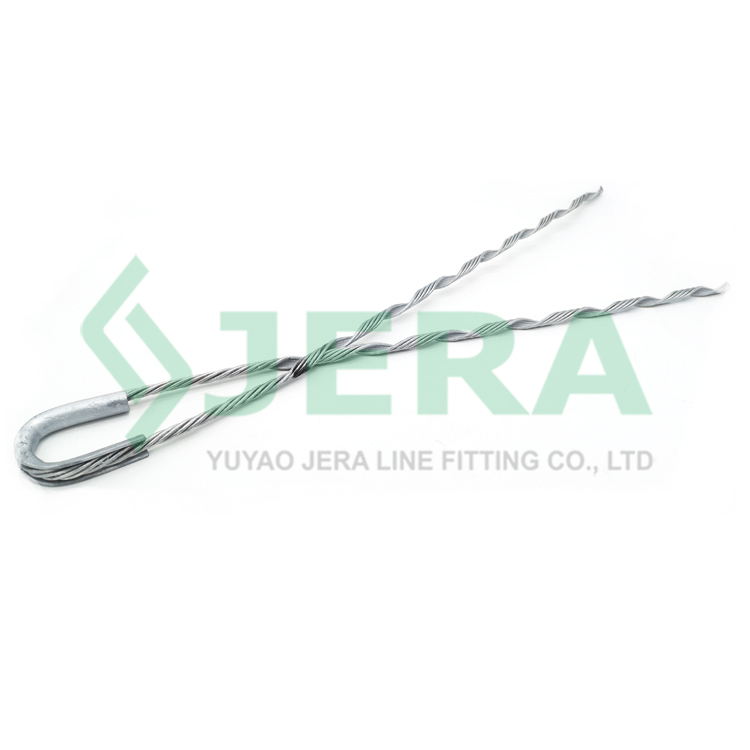

ADSS Cable Guy Grip
Grip
Description:
Preformed tension dead-end grip usually used in the installation of the exposed conductor, electric transmission & distribution and overheard insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type Tension clamp Dead-end which now is being widely in the line. ADSS cable guy grips were developed to grip the ADSS fiber optical cable while construction of internet network lines on wood poles or concrete towers.
- Working load of cable (breaking load), kN: 1(2)/2(3,5)/3(5)/4(7)/5(9)/6(10)/7(12)/8(14)/9(15)

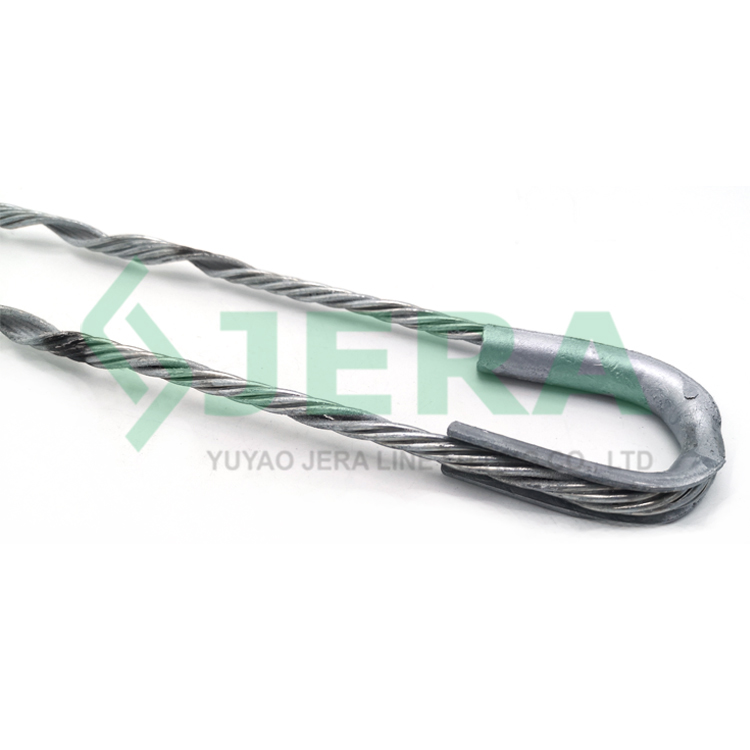

- Thimble, may be applied on tension load: Without US-1 (1-7 kN)/UT-05 (1-7 kN)/UT-1 (5-10 kN)/UT-3 (12-15 kN)
- Wire configuration: Specified in accordance to cable working load
- Length, mm: Specified in accordance to cable working load
- Weight, kg: Specified in accordance to cable working load
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Better reliability
- Simple structure and easy installation
- Great holding strength
- Different size for various demands
- Perfect protect cable and conductor
- Competitive price
SPECIFICATION
Preformed tension dead-end grip usually used in the installation of the exposed conductor, electric transmission & distribution and overheard insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type Tension clamp Dead-end which now is being widely in the line. ADSS cable guy grips were developed to grip the ADSS fiber optical cable while construction of internet network lines on wood poles or concrete towers.

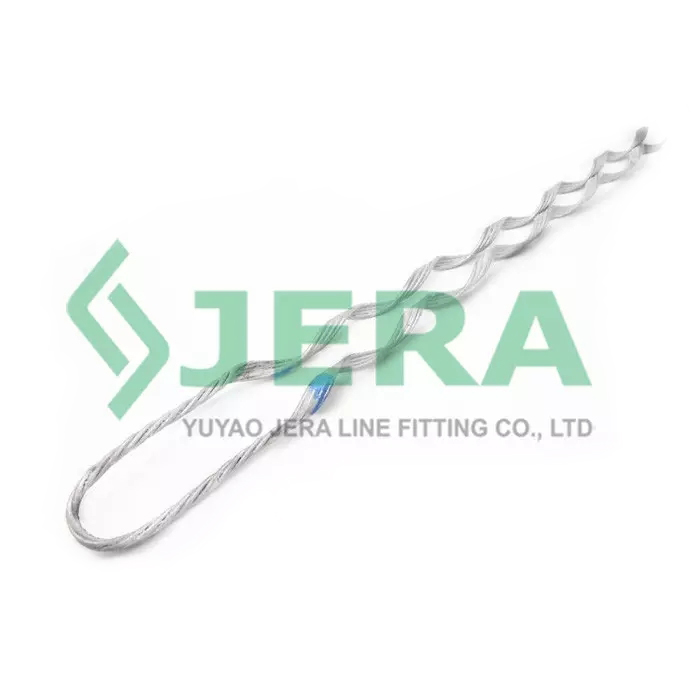

Jera JS ADSS cable guy grips were made of hot dip galvanized steel and covered by special sand and glue to improve the friction between ADSS cable. ADSS cable guy grips do not require any tools for installation and can be mounted on fiber optic cable directly.
Overhead ADSS cable guy grip JS type don’t require and protective rods or side splices, it can be installed straight on the fiber cable jacket.However, when the tension strength is high, it should be applied helical ADSS grip with splice protector in order to protect fiber core from damaging during tensioning .When the tension is under 9KN, with thimble or without it.
APPLICATION
The package of this ADSS cable guy grips is simple carton box. The pallet or wooden case packing method are available as well, check more details with our sales, such as preformed guy grips price.
Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.
Jera line factory test the product in complex like ADSS cable, ADSS anchor clamp, fiber optic cable bracket, in order to guarantee the confidence of the solution what we produce. Jera line produces bracket, hooks which can used together with this grip in overhead ADSS optic cable installation.

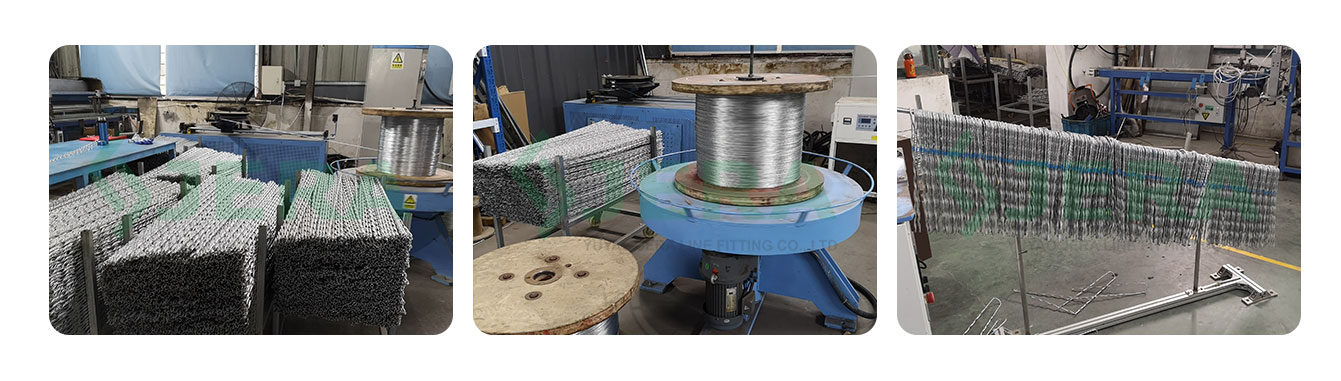

Manufacturing
Watch Our Factory Video
Technical specification
|
Working load of cable (breaking load), kN |
ADSS cable size, mm |
Thimble, may be applied on tension load |
Wire configuration |
Length, mm |
Color code |
Weight, kg |
|
1(2) |
5,0/5,6 |
Without US-1 (1-7 kN) |
Specified in accordance to cable working load |
Specified in accordance to cable working load |
red |
Specified in accordance to cable working load |
|
5,7/6,5 |
yellow |
|||||
|
6,6/7,4 |
black |
|||||
|
7,5/8,4 |
orange |
|||||
|
8,5/9,4 |
brown |
|||||
|
9,5/10,5 |
white |
|||||
|
10,6/11,6 |
blue |
|||||
|
11,7/12,8 |
green |
|||||
|
12,9/14,1 |
red |
|||||
|
14,2/15,6 |
yellow |
|||||
|
15,7/17,3 |
black |
|||||
|
17,4/19,1 |
orange |
|||||
|
19,2/20,9 |
brown |
|||||
|
21/22,8 |
white |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
