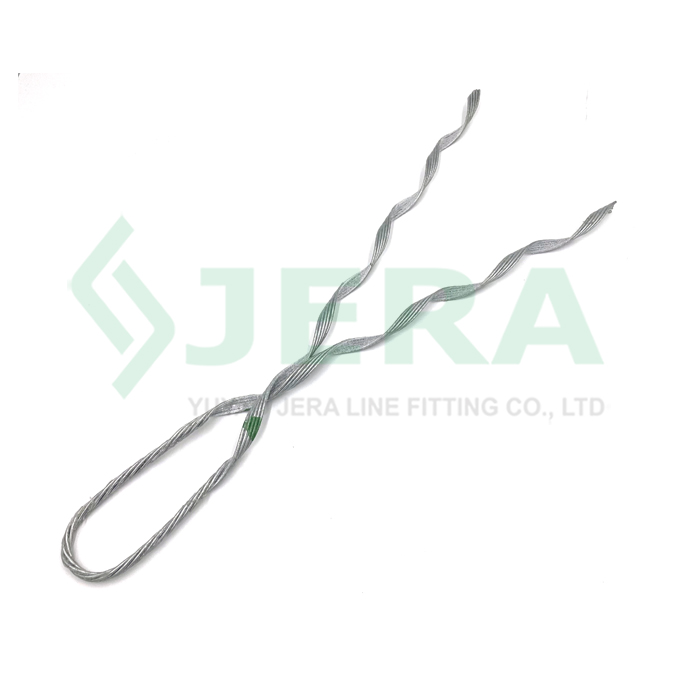

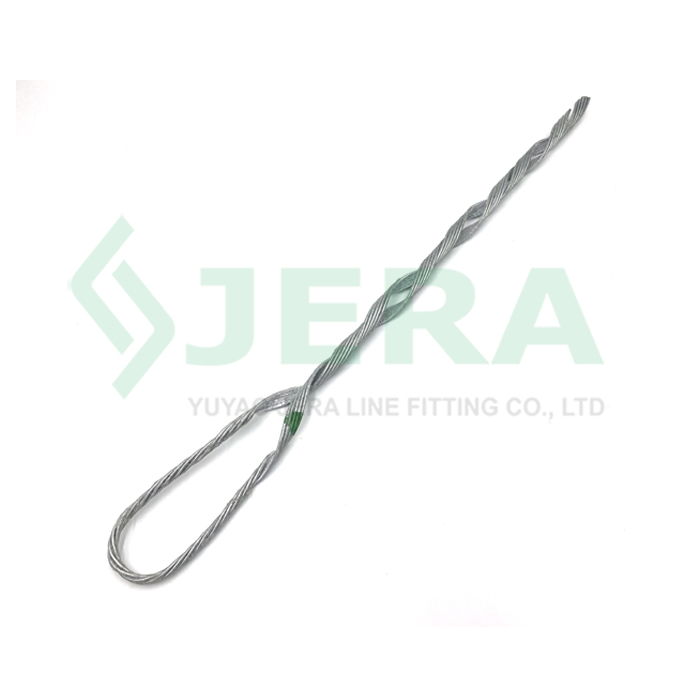

ADSS cable dead end guy grip 11.7-12.8mm

ADSS cable dead end guy grip, is a kind of preformed line product used to tension round fiber optic ADSS cable during aerial FTTx line deployment.

Features

Cable type: Round
Cable size: 11.7-12.8 mm
Span: <50 m
MBL: 4-7 KN

DESCRIPTION Specification Test

REVIEW

Jera line is operating according to ISO9001:2015, we have our own interior laboratory to do essential test which including ultimate tensile stregnth test, corrosion aging test, UV & termperature aging test etc.

Jera line is a direct factory of fiber optic cables , we provide a whole solution for indoor and outdoor FTTX network line deployment. Product includes drop cable clamps, ADSS cable, ADSS anchor clamps, drop cable patch cords, fiber optical termination boxes, fiber optic splice closure, stainless steel banding and etc.

Technical specification

Product code	ADSS cable size,mm	Wires’ configuration	MBL,kn	Color
JS-4/7-11.7-12.8	11.7-12.8	2.2*5	4-7	Green

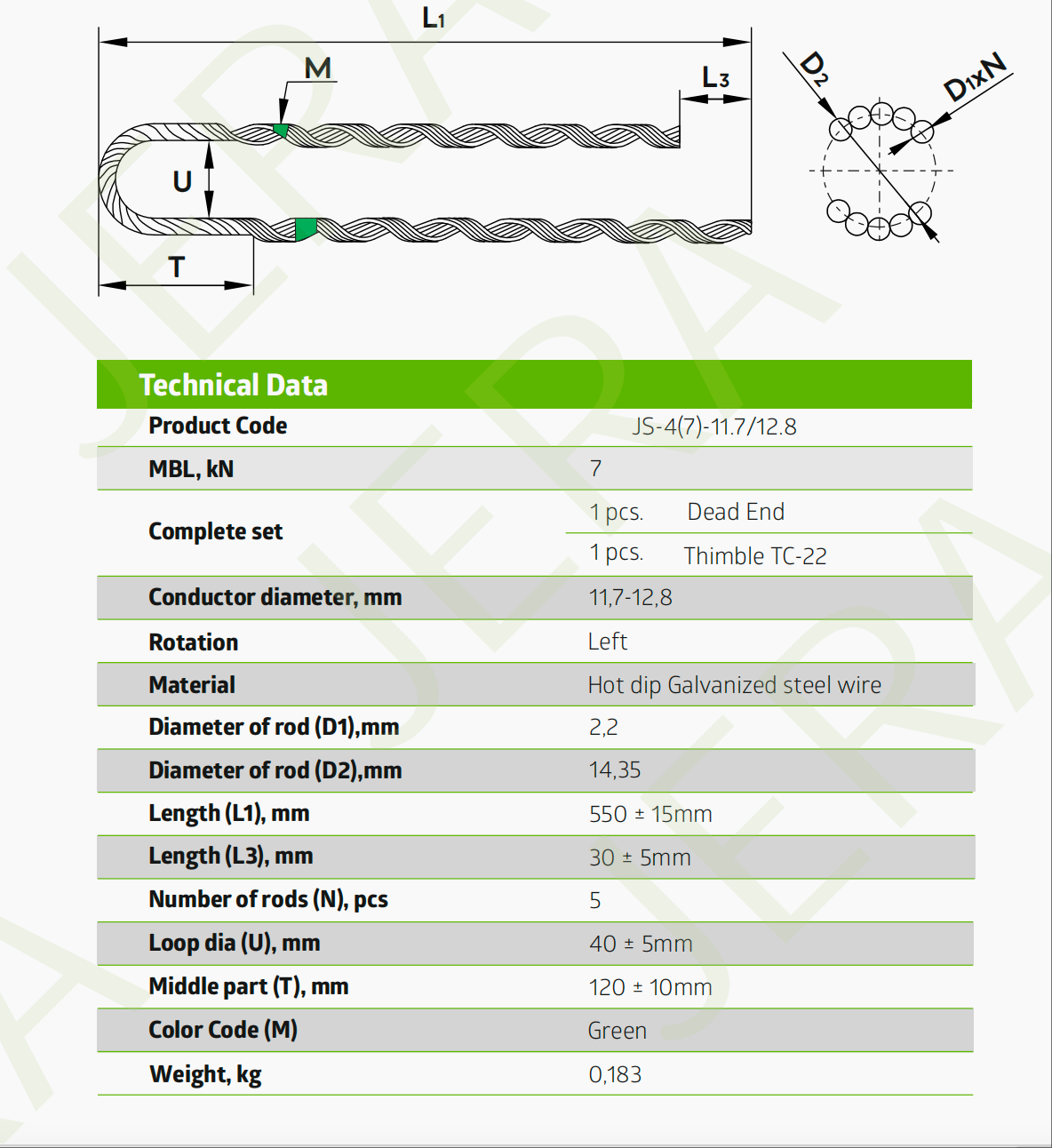

Drawing

Test

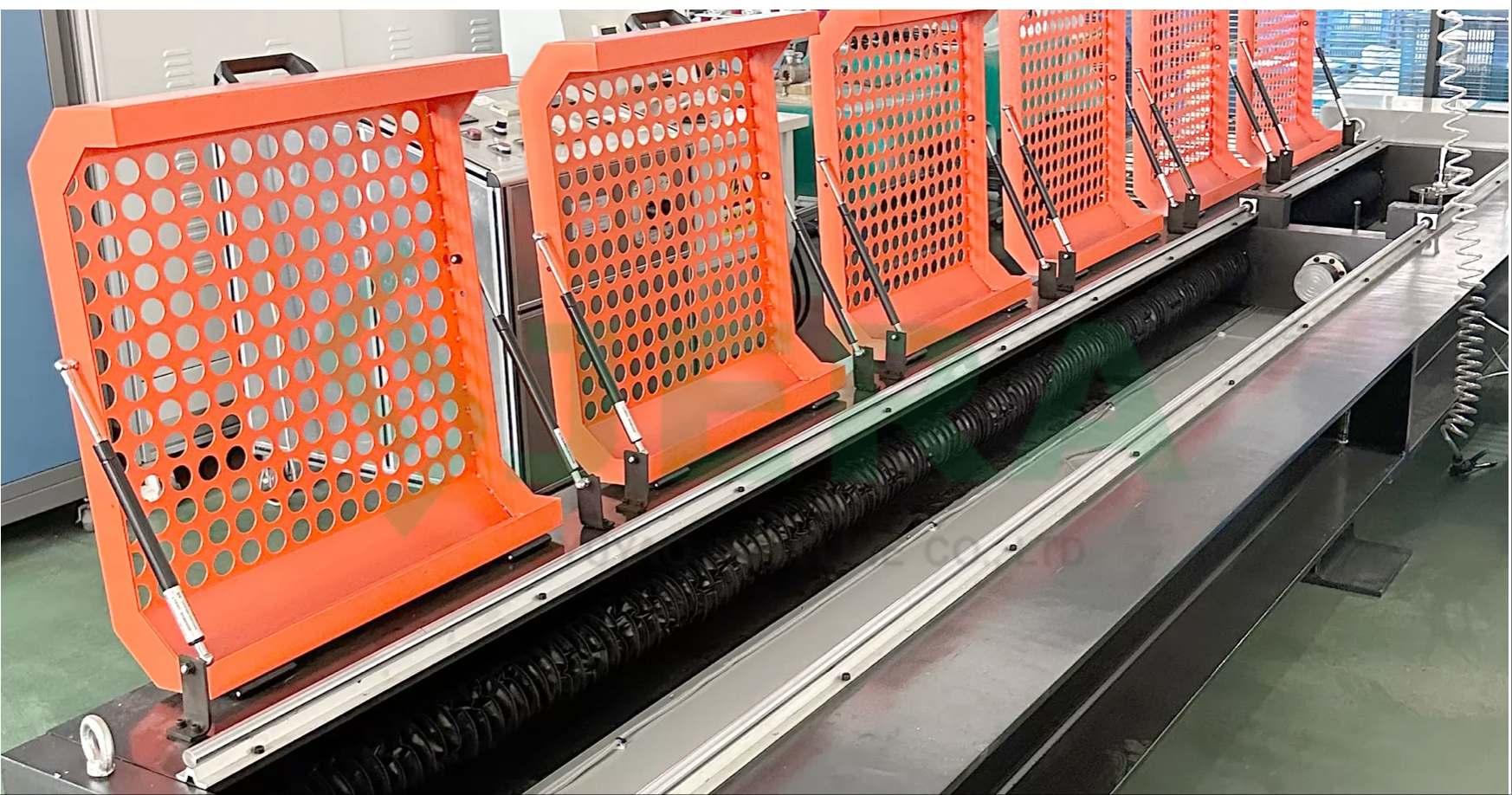

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
