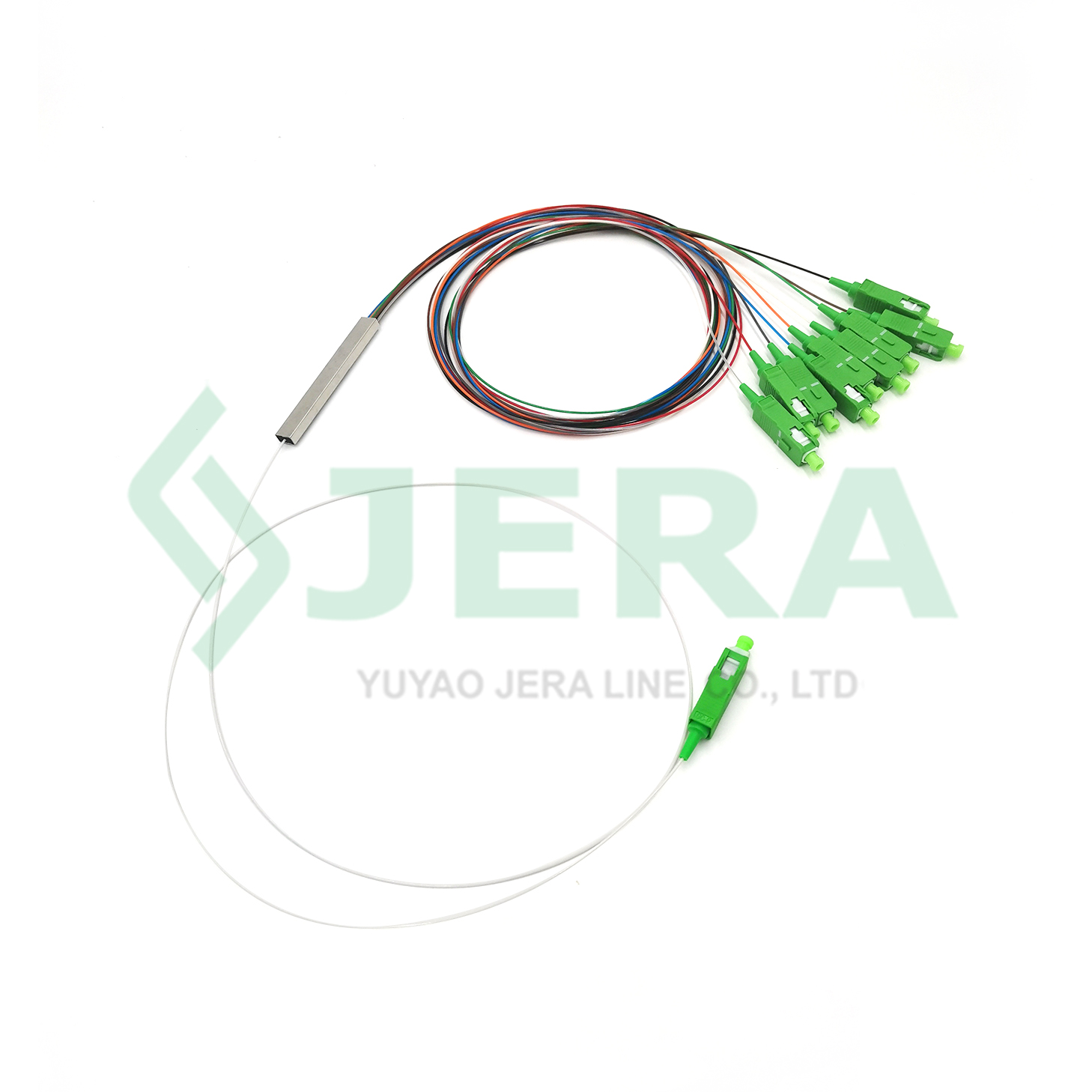

Unbalanced PLC splitter 1*9 30-70

Unbalanced PLC splitter 1*9 30-70
Unbalanced PLC splitter 1*9 30-70
Unbalanced PLC splitter 1*9 30-70
Unbalanced PLC splitter 1*9 30-70
Unbalanced PLC splitter 1*9 30-70
Unbalanced PLC splitter 1*9 30-70
Unbalanced PLC splitter 1*9 30-70
Unbalanced PLC splitter 1*9 30-70
Model No. :

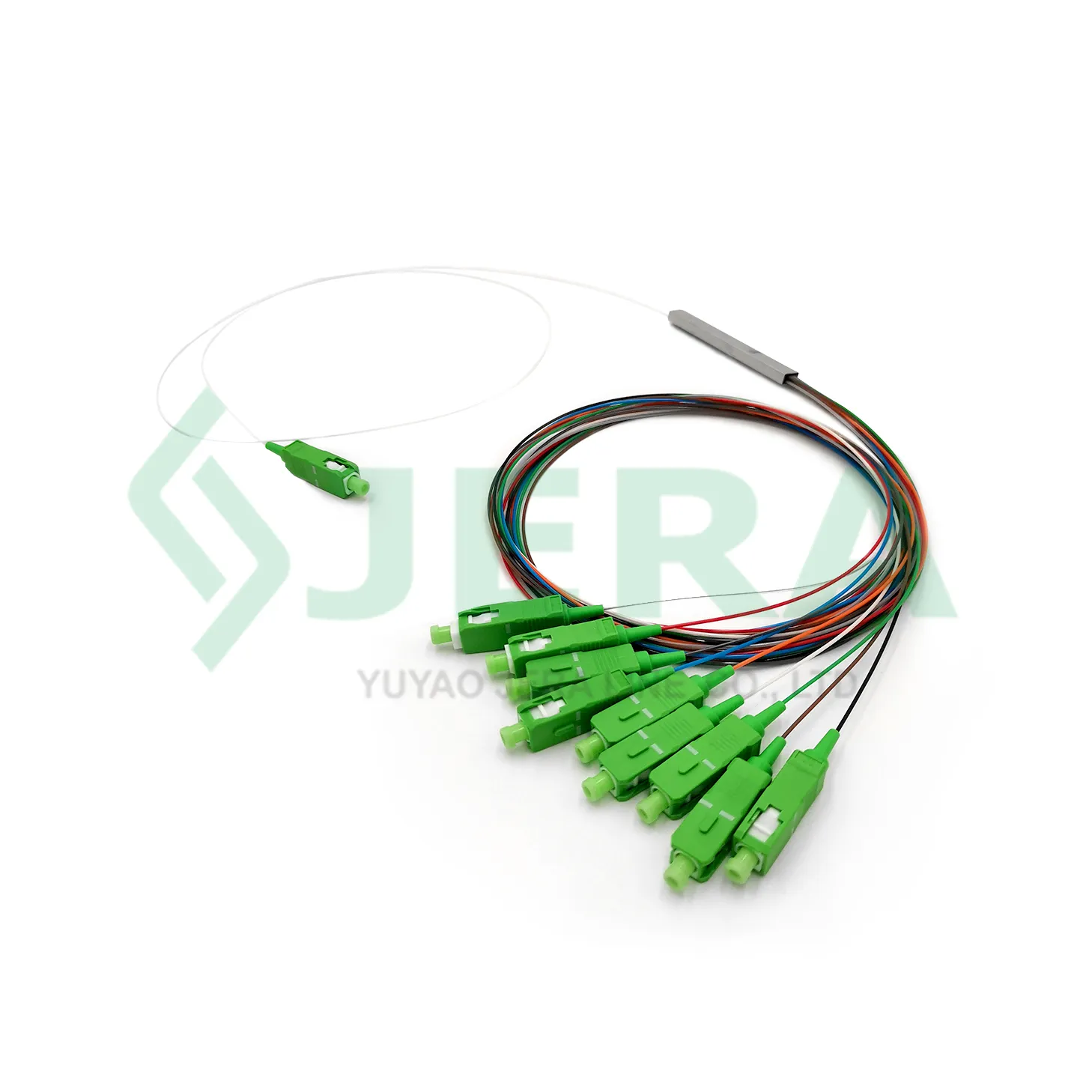

Unbalanced PLC splitter 1*9

Description:

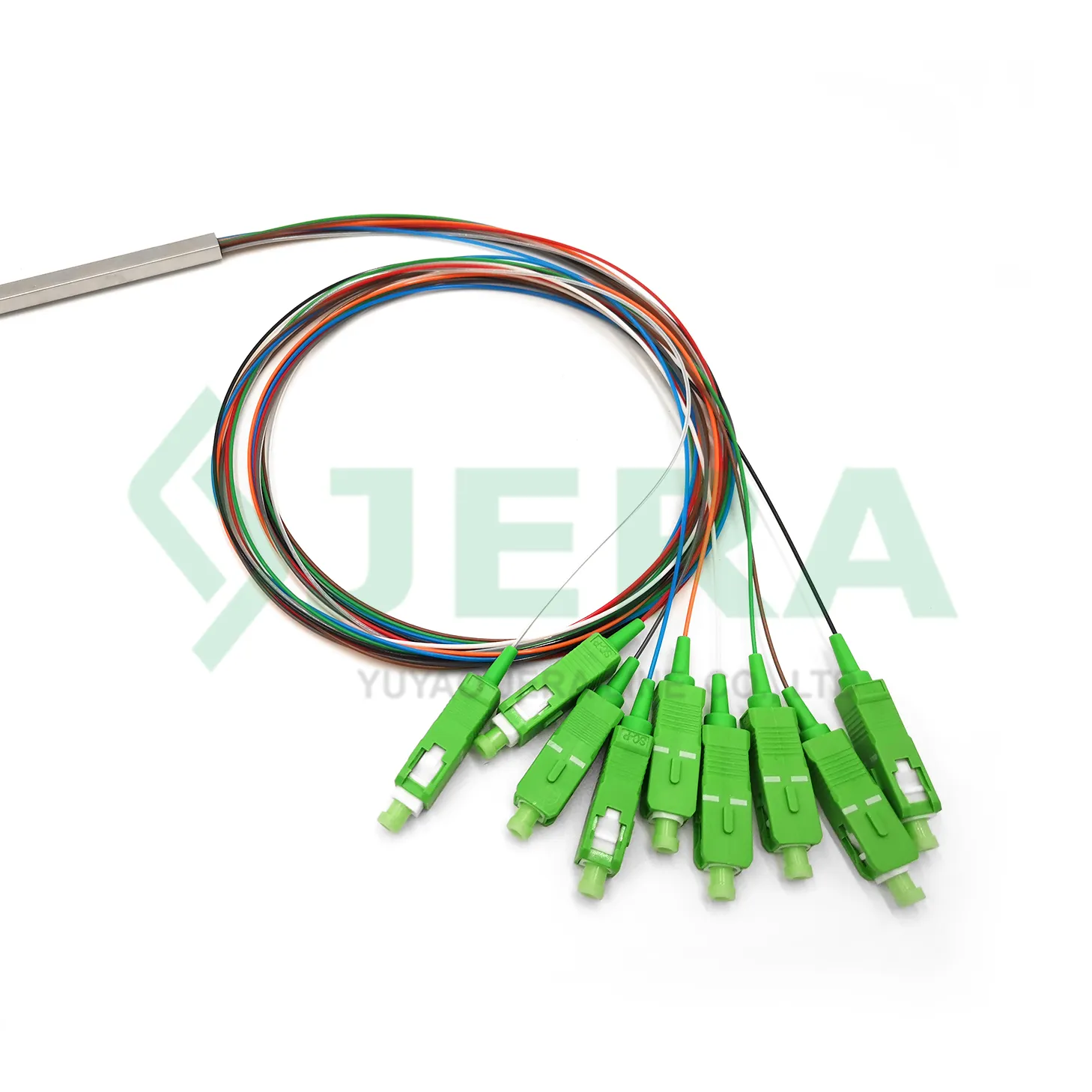

Unbalanced PLC splitter 1*9 30-70 either called Fiber Optic Splitter Unbalanced,is an important optical fiber splitter, which is widely used in optical communication and optical network systems. The PLC optical splitter adopts optical waveguide technology, which can disperse, divide and divide the input optical signal, and realize light splitting on different paths.

    • Type:1×9

    • Adapter type: SC
    • Polish type: APC
    • Area: Indoor
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • low insertion loss
  • Uniform Spectral Characteristics
  • PLC optical splitter is simple in structure, small in size, easy to install and maintain.
  • High temperature stability and corrosion resistance
  • 70:30 split ratio available
Unbalanced PLC splitter 1*9 30-70 Unbalanced PLC splitter 1*9 30-70

SPECIFICATION

Unbalanced PLC splitter 1*9 30-70 either called Fiber Optic Splitter Unbalanced,is an important optical fiber splitter, which is widely used in optical communication and optical network systems. The PLC optical splitter adopts optical waveguide technology, which can disperse, divide and divide the input optical signal, and realize light splitting on different paths.

read more

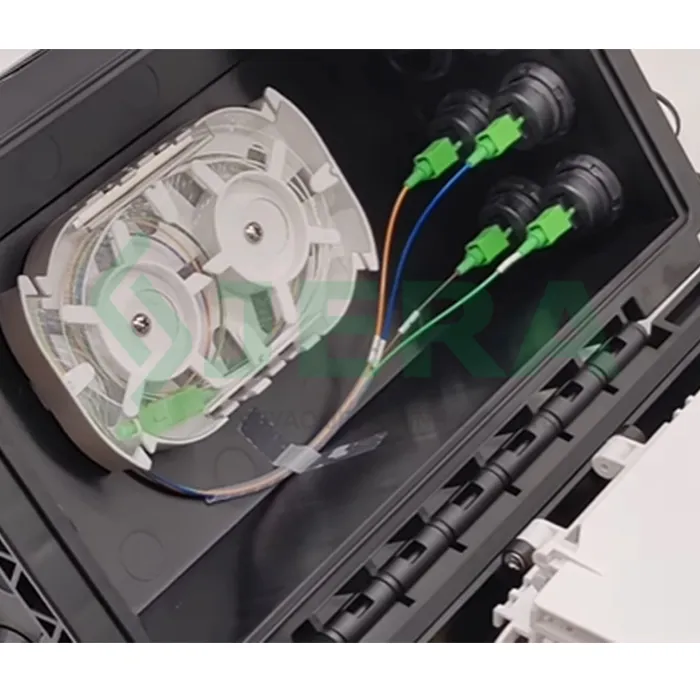

APPLICATION

1×9 Optical Splitter are widely used in transmission, distribution and scheduling in optical fiber communication systems. It can be used for optical signal transmission in the fiber optic access network (FTTH) to realize the expansion of broadband access in homes and office buildings. In addition, Unbalanced fiber optic FLC 1×9 can also be used in optical switches, optical fiber transceivers, optical transmission equipment, etc. in optical fiber communication equipment, as important optical fiber interconnection and signal scheduling components.

Jera line is operating according to ISO9001:2015, we have our own laboratory to proceed a series test accordance with European quality inspection standards. Jera line sells optical cables, optical cable clamps, optical fiber patch cord, steel strap buckles and other products.

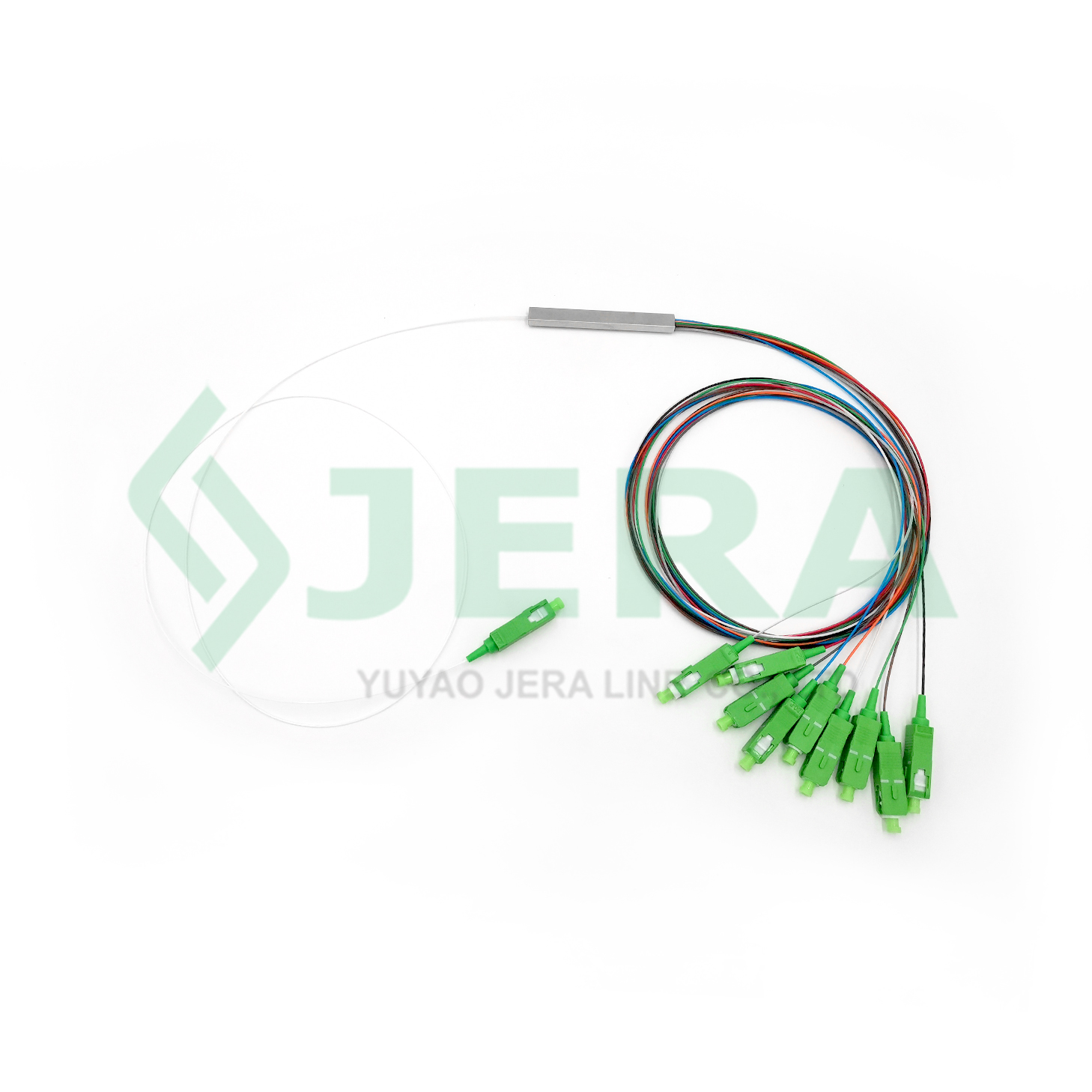

Feel free to contact our sales team for more details for this Unbalanced Mini Blockless Fiber Optic PLC Splitter.

read more

Manufacturing

    fiber optic splitter manufacture

Watch Our Factory Video

Technical specification

Package Style

Mini Module

Configuration Type

1×9

Fiber Grade

G.657A1

Fiber Mode

Singlemode

Connector Type

SC/APC

Split Ratio(CH1)

70%

Input/Output Fiber Diameter

900μm

Input/Output Fiber Length

1.5m

Insertion Loss

≤ 16.5dB

Return Loss

≥ 55dB

Loss Uniformity

≤ 0.5dB

Directivity

≥ 55dB

Polarization Dependent Loss

≤ 0.2dB

Temperature Dependent Loss

≤ 0.5dB

Wavelength Dependent Loss

≤ 0.3dB

Operating Bandwidth

1260~1650nm

Steel Tube Dimensions (HxWxD)

0.16″x0.47″x2.36″ (4x12x60mm)

Temperature

Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test
