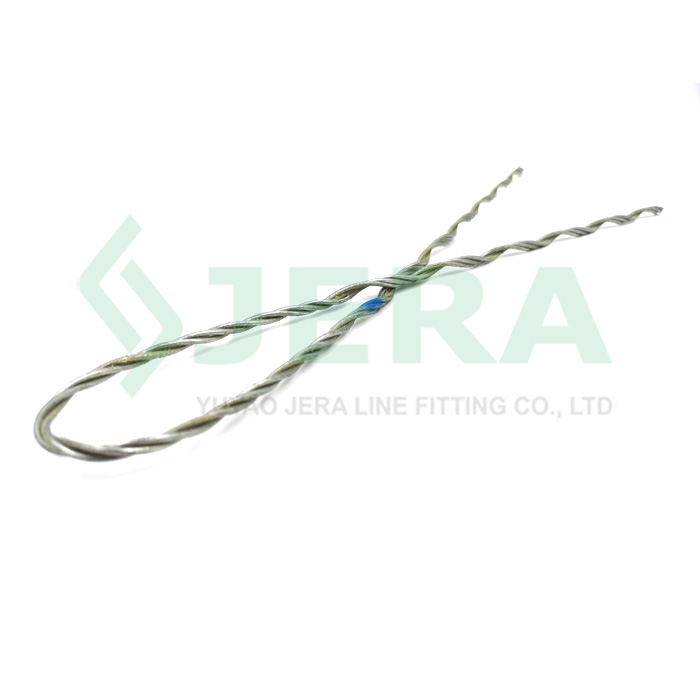

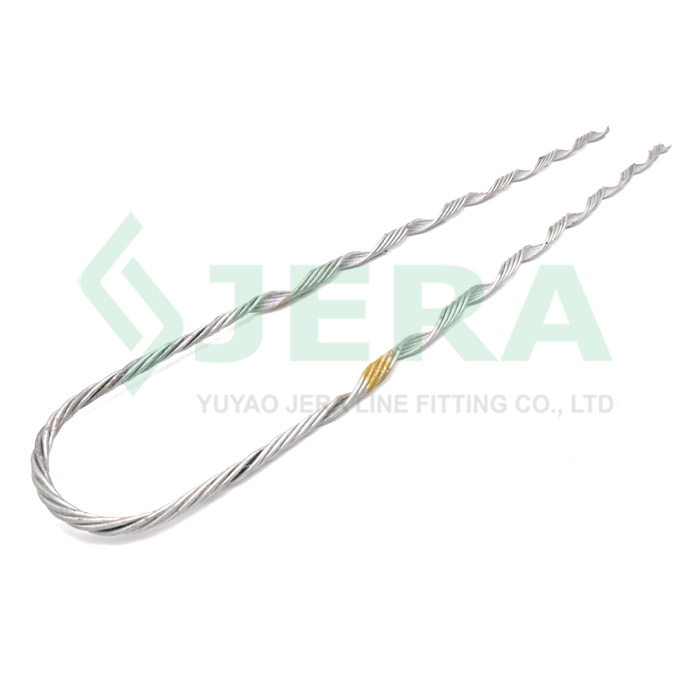

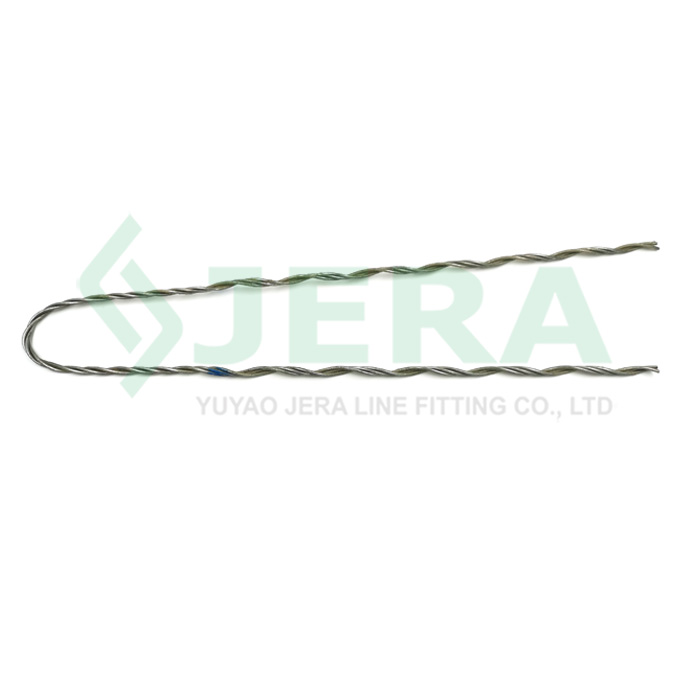

Strand wire dead end grip, JS-8

JS-8

Preformed dead end grip JS-8, either called Guy Grip 1/7 is designed to grip galvanized strand wire during installation on single wood pole associated with distribution construction, or concrete tower.

Features

Cable type: Strand wire
Cable size: 3.6 mm
Span: not specified
MBL: 8.9 KN

DESCRIPTION Specification Test

REVIEW

Key features

Made of ASTM A475 steel wire with galvanized, corrosion resistant
Compact size, and easy installation, no need other tools
Compact size but provide reliable mechanical tensile strength
Grips can be customized upon your cable diameter and working load
With sand and glue to improve friction between conductor
Perfect environmental stability
Fair price

Preformed dead end grip JS-8, either called Guy Grip 1/7 is designed to grip galvanized strand wire during installation on single wood pole associated with distribution construction, or concrete tower.

Jera line is a direct factory, with many years of experience,our products were designed to be convenient for quick application. We have introduced plenty of engineering know-how, to provide you with the ultimate in confidence when choosing our solution.

Strand guy grip is made of high quality ASTM A475 steel and proceed by hot dip galvanized finish, they will provide stable tensile strength and weather resistant during application.

read more

The operation of this dead end guy grip is very convenient, no need other tools. All the jera produced guy grips passed a series test including: max tensile strength test, aging test and etc. These tests will make us be more confident in our product and ensure the quality for our clients.

We could customized the new product depend on your wire diameter and working load in a short time. Jera is operating according to ISO9001:2015, we care about the quality and focus on providing a whole solution for our client. For other accessories like pole brackets, pole hook, adss guy grips, suspension clamp etc, please find it in our product range.

Welcome to send inquiry for this preformed guy grip price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Strand rope diameter, mm	Strand rope diameter, inches	Wires’s configuration	Length, mm	MBL, kN	Color code
JS-8	3-3.6	1/7″	2.0 * 3	430	8.9	Blue
