SC/UPC-LC/UPC Duplex LSZH MM (OM1)

SC/UPC-LC/UPC Duplex LSZH MM OM1

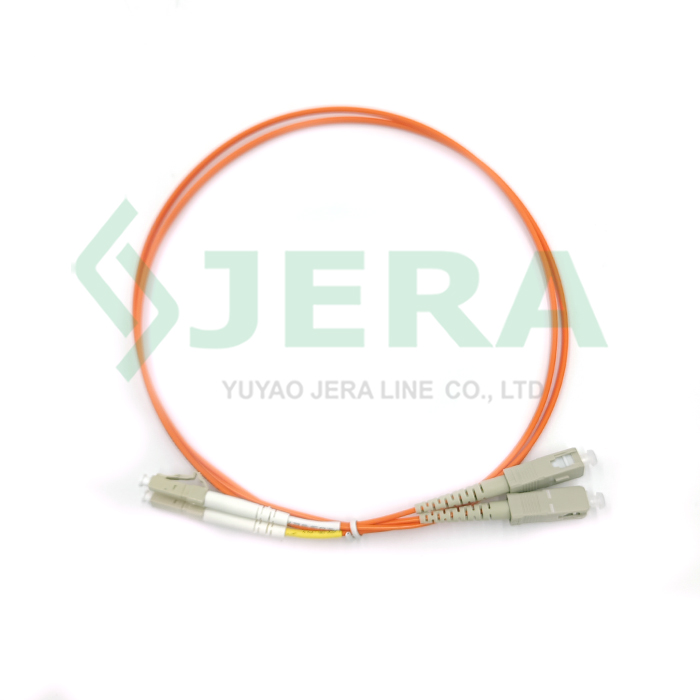

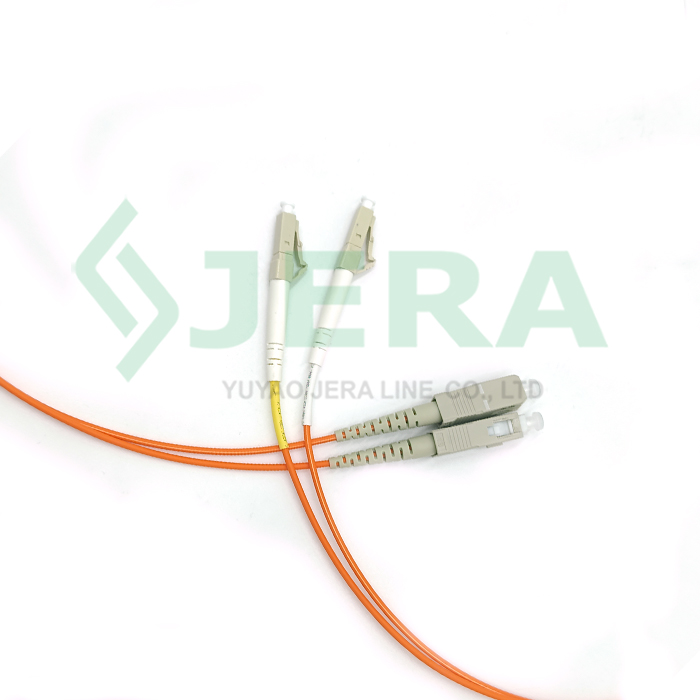

SC/UPC-LC/UPC Duplex LSZH MM 62.5/125 µm is an optical fiber cable patch cord used to connect optical fiber equipment. It uses SC/UPC and LC/UPC connectors, is a twisted pair structure, and the outer layer is made of LSZH material with a diameter of 2.0mm.

Features

LSZH Jacket
Precision Zirconia Ferrule Connectors Ensure Low Loss
Duplex Clip Prevents the Fiber from Rotating and Maintains the Polarity
Minimum bending radius 7.5mm
Environment Friendly
Competitive Price

DESCRIPTION Specification Test

REVIEW

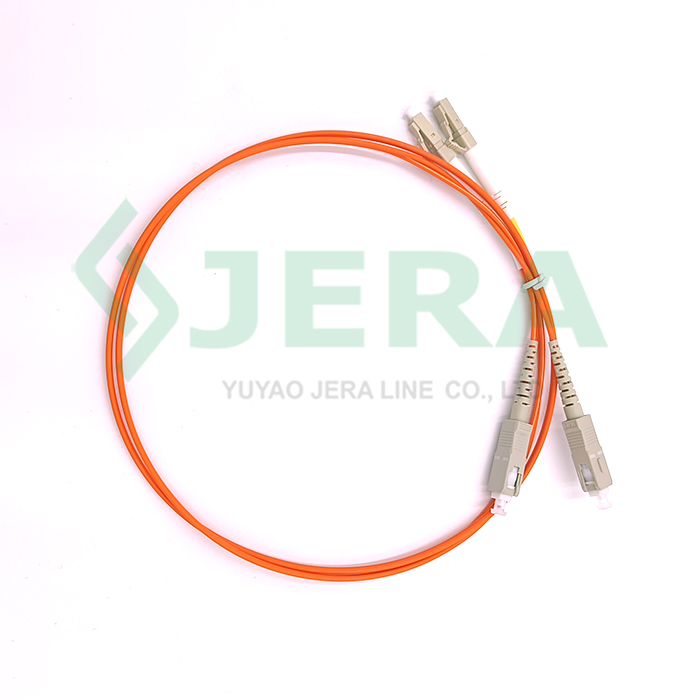

This multimode fiber optic cable patch cord is a high-performance fiber optic cable that plays an important role in data centers, communication networks and other situations that require high-speed and stable fiber optic connections. High-quality fiber optic cable, which can meet your needs for high-speed and stable data transmission. Choose JERA Line and you’ll bring greater efficiency and reliability to your business.

Applied in optical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

Technical specification

Connector Type	LC UPC to SC UPC
Fiber Count	Duplex
Wavelength	850/1300nm
Fiber core size	62.5/125 μm
Insertion Loss	≤0.3dB
Min. Bend Radius (Fiber Core)	7.5mm
Min. Bend Radius( Fiber Cable)	20/10D (Dynamic/Static)
Cable Jacket	LSZH
Polarity	A (Tx) to B (Rx)
Return Loss	≥30dB
Attenuation at 850nm	3.0 dB/km
Attenuation at 1300nm	1.0 dB/km
Cable Diameter	2.0mm
Operating Temperature	-20~70°C
