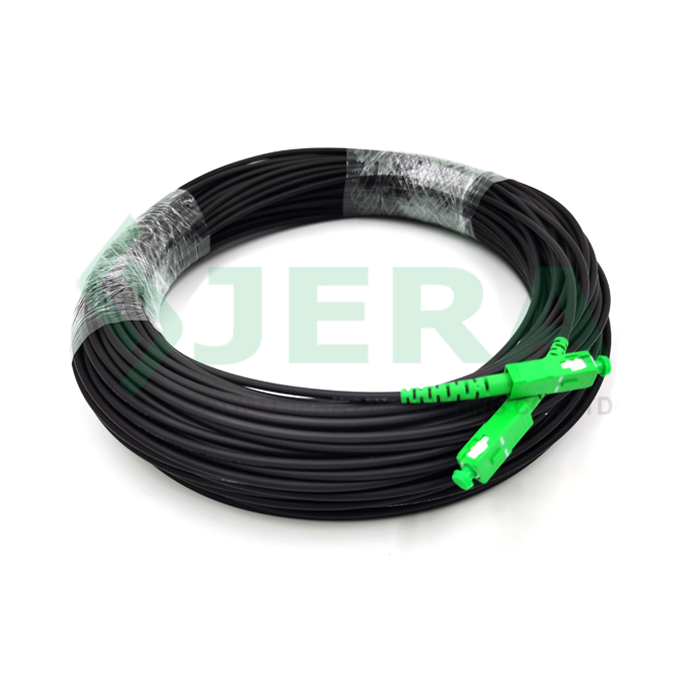

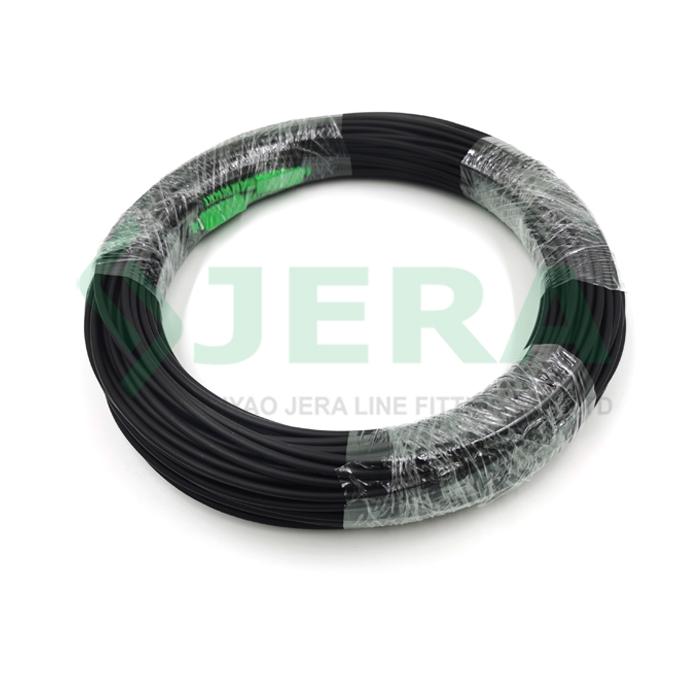

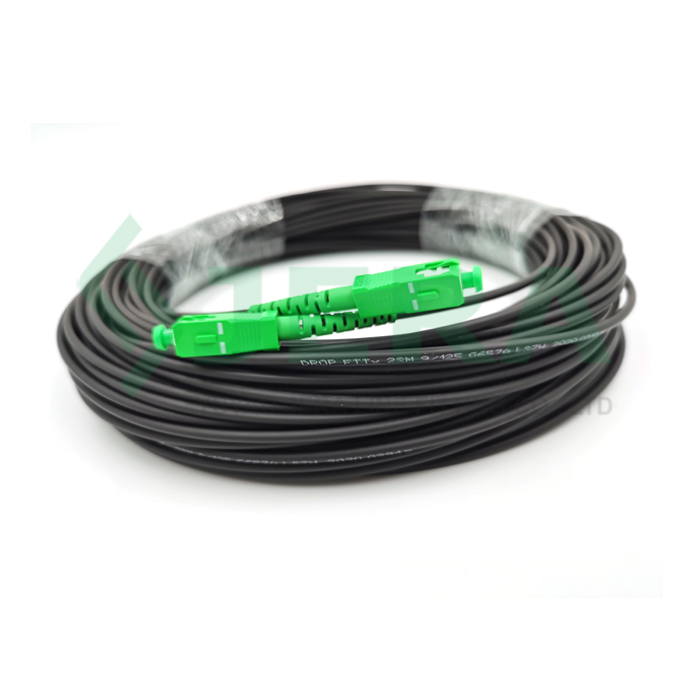

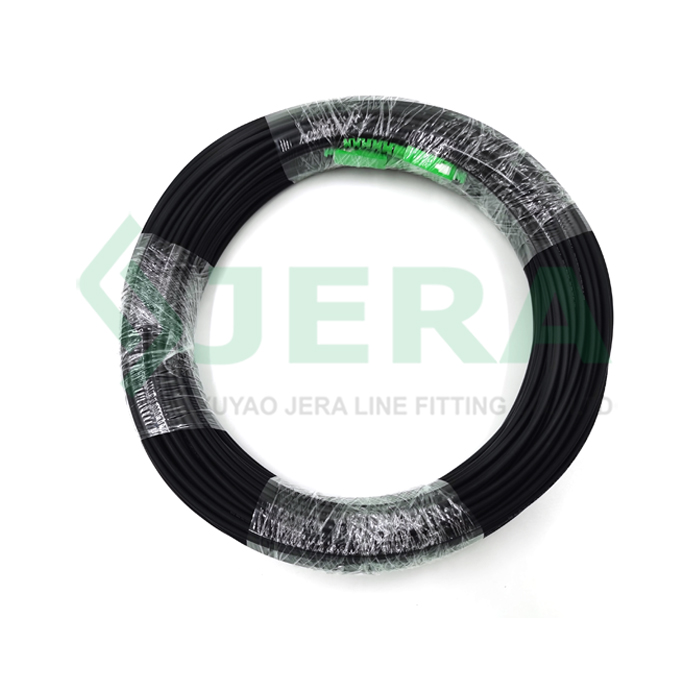

Round drop cable patch cord SC/APC 40M

Round drop cable patch cord SC/APC
Round drop cable patch cord also called drop cable patch cord is a fiber optic cable terminated with connectors at each end which provide a easy way to access to a FTTH networks during FTTH deployments.
Round drop cable patch cord SC/APC 40M
Features
    • Fiber quantity: 1 fiber
    • Cable dimensions: 3.0 mm
    • Length：40 m
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Each end terminated with SC/APC connectors
  • Fire retardant LSZH outer cable jacket
  • Low polarization dependent loss
  • Excellent performance
  • Low insertion loss, high return loss
  • Fair price
Round drop cable patch cord SC/APC 40M Round drop cable patch cord SC/APC 40M

SPECIFICATION

The cable patch cords consist of:

  • The cable dimensions:

- Diameter: 3.0 mm

  • Fiber quantity is 1 fiber.
  • LSZH jacket sheath, UV protected.

Optical fiber of Single modeG652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

APPLICATION

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

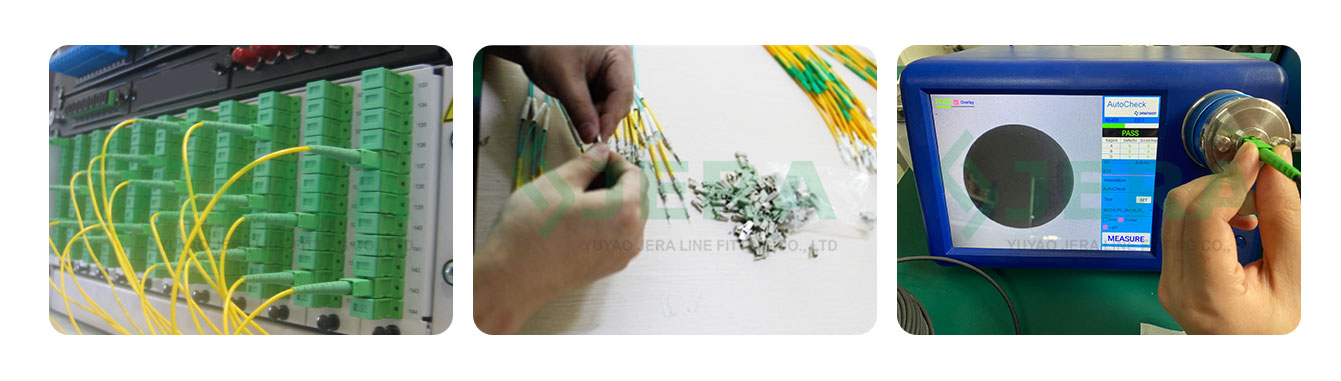

Manufacturing

Watch Our Factory Video

Technical specification

Item

Value

Polish types

SC/APC

Fiber cores

G652D, G657A1, G657A2

Fiber counts

Simplex

Fiber modes

Single-mode 9/125

Cable color

Black

Size,mm

3.0 Diameter

Tensile strength

10000N

Length,m

40

Insertion losses(IL),dB

≤0.3

Material

LSZH

Working temperature

-40~+85℃
