Outdoor drop cable patch cords SC/UPC 100M

Outdoor drop cable patch cords SC/UPC

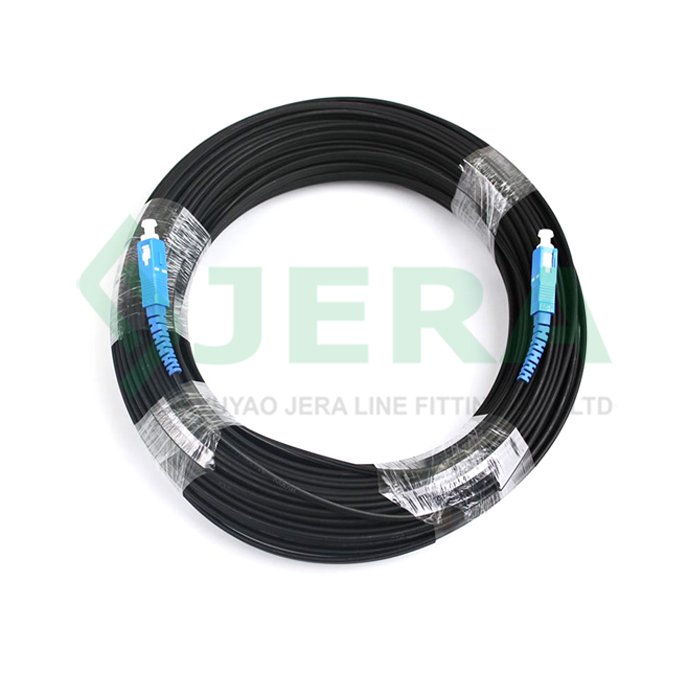

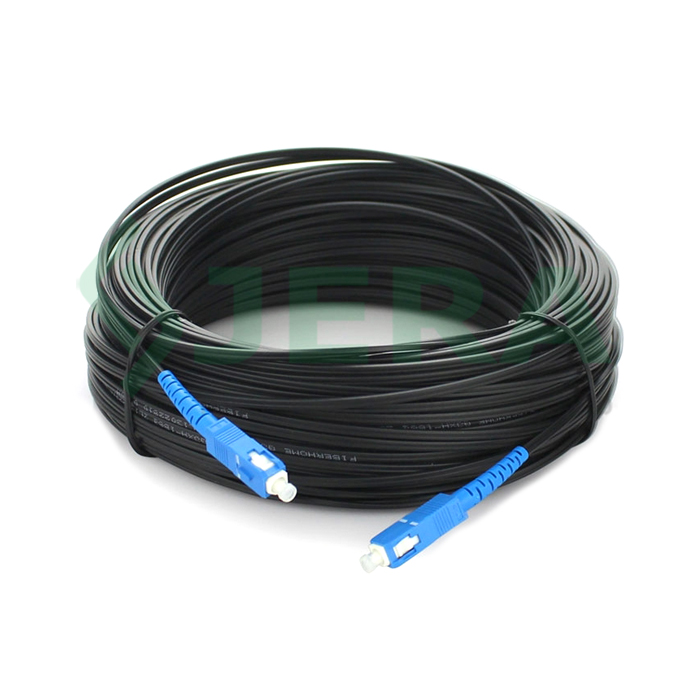

Outdoor drop cable patch cords SC/UPC also called FTTH drop patch cords is a fiber drop wire capped with SC/UPC connectors at each end, which provide easy way to connect fiber optical box to save time and installation cost during FTTH deployment.

Features

Application: Outdoor/Indoor
Fiber quantity: 1 fiber
Cable dimensions: 2.0*5.0 mm
Length：100 m

DESCRIPTION Specification Test

REVIEW

Key Features

Each end terminated with SC/UPC connector
Reinforced with steel wire and rods, provide 2000N tensile load
LSZH cable jacket, UV resistant
Low polarization dependent loss
High reliability
Competitive price

The cable patch cords consists of:

The cable dimensions:

- Width : 5.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G652D, G657A1, G657A2 grades of fiber standards.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Value
Polish types	SC/UPC
Fiber cores	G652D, G657A1, G657A2
Fiber counts	Simplex
Fiber modes	Single-mode 9/125
Cable color	Black
Size,mm	2.0*5.0
Tensile strength	2000N
Length,m	100
Insertion losses(IL),dB	≤0.3
Material	LSZH
Working temperature	-40~+85℃
