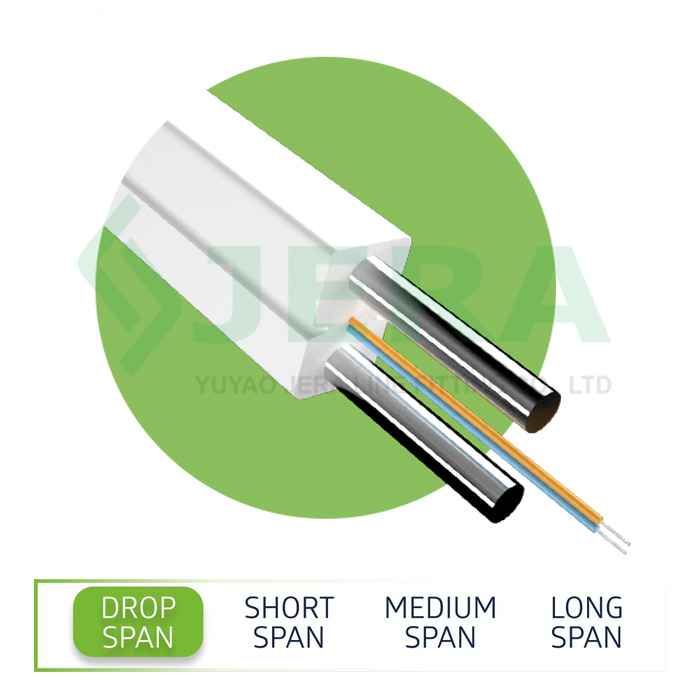

Indoor optic drop cable 4 fibers

Indoor optic drop cable 4 fibers also called FTTH indoor cable is a llight weight and small size optical cable design to connect final users to telecommunication line.

Features

Application: Indoor
Fiber quantity: 4 fiber
Dimensions: 3.0*2.0 mm
Reinforcement: Steel

DESCRIPTION Specification Test

REVIEW

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Technical specification

Item	Technology Parameters
Applications	Indoor
Product code	FOC-F-LSZH(BC)+2×0,4-steel-4x657A1-2,0*3,0-1000
Fiber color	Natural
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	White(Black color upon request)
Sheath material	LSZH
Cable dimension,mm	3.0(±0.2)*2.0 (±0.2）
Strength member	Steel rod, d=0.4mm
Attenuation, dB/km	≤0.4 at 1310nm, ≤0.3 at 1550nm
Tensile strengh, N	200
Operation temperature, ℃	-60~+70

Test

Jera line is committed to produce high quality and reliable fiber optic products for our customers.

For Fiber cable, one of the most important test is fire resistance tests other called flame retardant test are used to ensure the fire safety of our products or materials and to measure their fire response requirements according to IEC 60332-1, IEC 60332-3 standard.

It is necessary for us to do this test to check fire resistance, especially the products which need to be applied in extreme environments.
