Indoor drop cable patch cord SC/APC

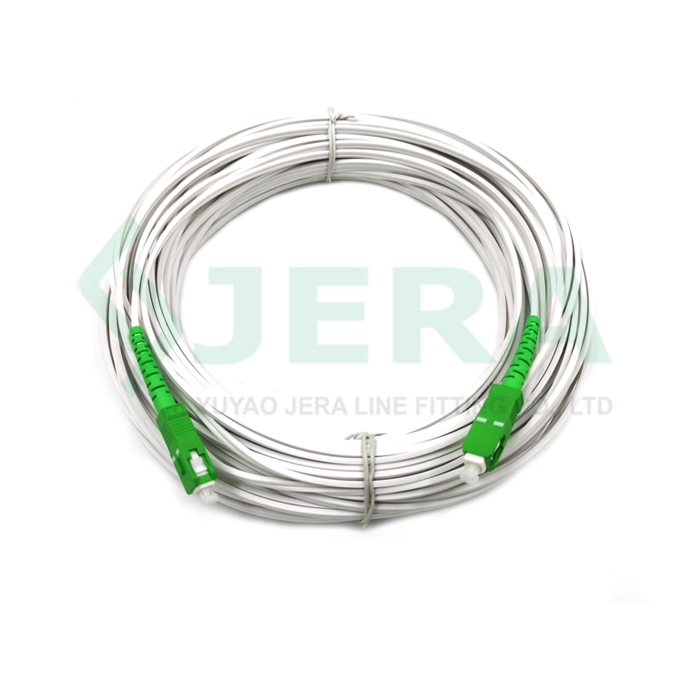

Indoor drop cable patch cord SC/APC 30M

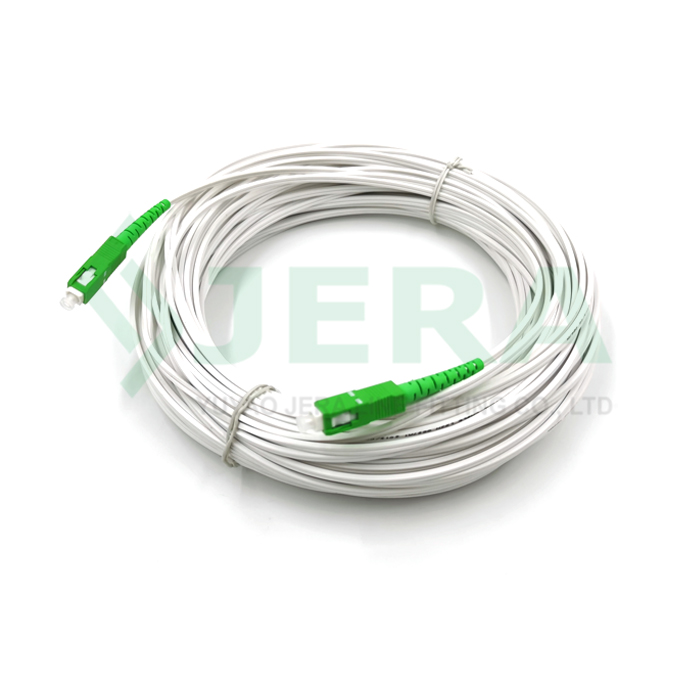

Indoor drop cable patch cord SC/APC other called ftth drop wire patch-cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.

Features

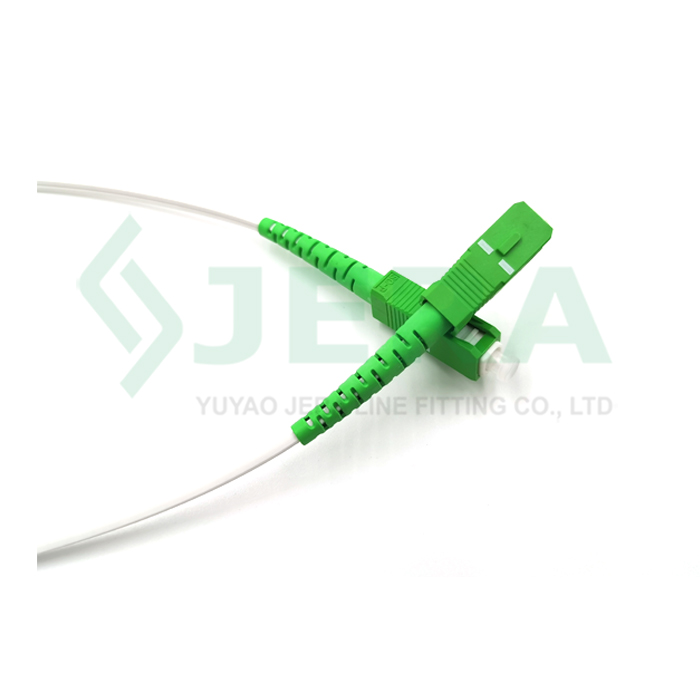

Two ends capped with SC/APC connectors
Reinforced with FRP rods
Flame retardant LSZH cable outer sheath
Low insertion loss, high return loss
High credibility and stability
Good in repeatability and exchangeability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

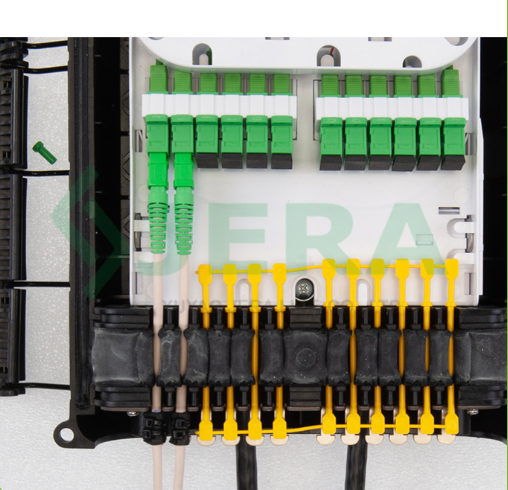

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

Technical specification

Item	Value
Polish types	SC/APC
Fiber cores	G652D, G657A1, G657A2
Fiber counts	Simplex
Fiber modes	Single-mode 9/125
Cable color	White
Size,mm	2.0*3.0
Tensile strength short/long term	80/40N
Length,m	30
Insertion losses(IL),dB	≤0.3
Material	LSZH
Working temperature	-40~+85℃

Test

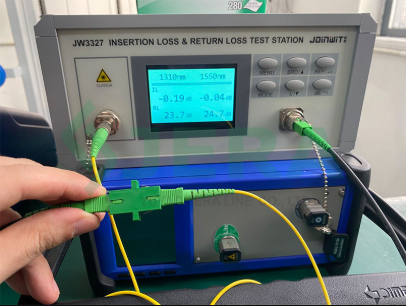

The loss of signal, which occurs along the length of a fiber optic link, is called insertion loss, and insertion loss test is for measuring the losses of light appears in fiber optic core and fiber optic cable connections. The measurement of the amount of light that is reflected back toward the source is called return loss test. and insertion loss and return loss are all measured in decibels(dBs).

Regardless of type, when a signal travels through a system or a component, power (signal) loss is unavoidable. When light passes through the fiber, if the loss is very small, it will not affect the quality of the optical signal. The higher the loss, the lower the amount reflected. Therefore, the higher the return loss, the lower the reflection and the better the connection.

Jera proceed test on below products

-Fiber optic drop cables

-Fiber optical adapters

-Fiber optical patch cords

-Fiber optical pigtails

-Fiber optical PLC splitters

For fiber core connections test is operated by IEC-61300-3-4 (Method B)standards. Procedure IEC-61300-3-4 (Method C) standards.

We use test equipment in our daily quality testing,To ensure our customer could receive products which meet quality requirements. Our internal laboratory is capable to proceed such a series of standard related type tests
