Jera Line is a specialized manufacturer of cable infrastructure products, exclusively engineered for outdoor applications.

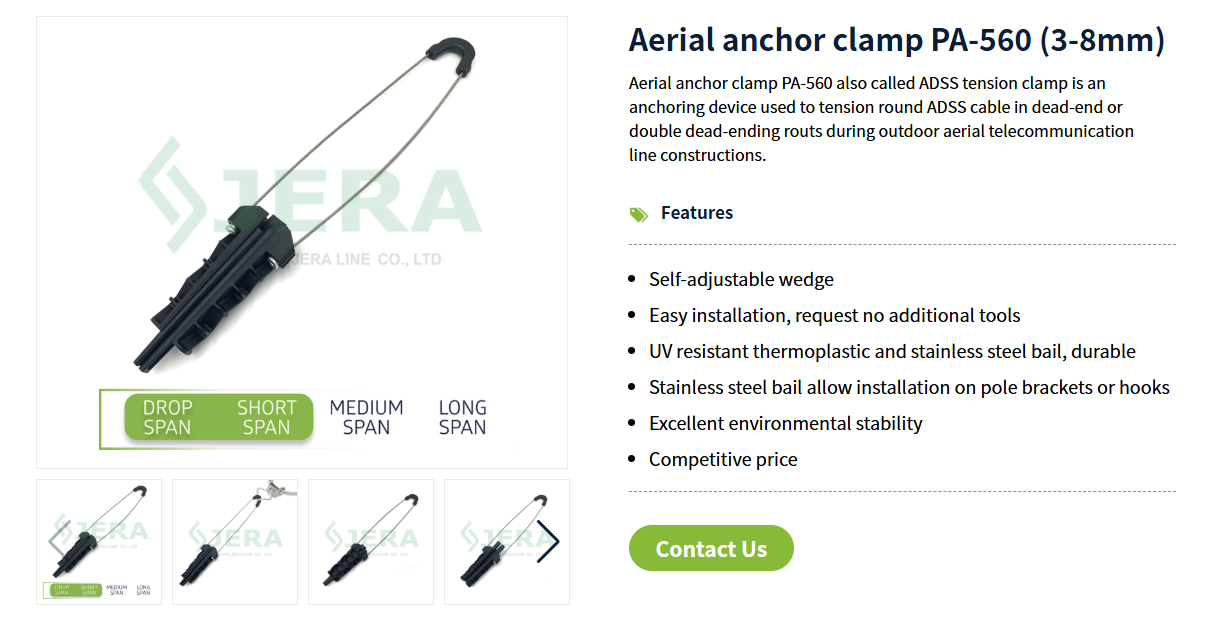

The video you are watching showcases the assembly process of the Aerial Anchor Clamp PA-560—also known as an ADSS Tension Clamp. As a specialized anchoring device, it plays a critical role in outdoor aerial telecommunication line construction: its primary function is to tension round ADSS (All-Dielectric Self-Supporting) cables in key installation scenarios, specifically dead-end and double dead-ending routes.
By securing the cables firmly in these configurations, the clamp ensures stable cable positioning, prevents excessive slack or displacement caused by environmental factors, and ultimately maintains the reliability and safety of the entire telecommunication line infrastructure.
For additional details, please do not hesitate to contact us via
Email: info@jera-fiber.com
Youtube:https://www.youtube.com/@jeraline
Product’s features:
-
Self-adjustable wedge
-
Easy installation, request no additional tools
-
UV resistant thermoplastic and stainless steel bail, durable
-
Stainless steel bail allow installation on pole brackets or hooks
-
Excellent environmental stability
-
Competitive price
Technical specification
|
Product code
|
PA-560
|
|
Messenger diameter size,mm
|
3-8
|
|
Material
|
UV resistant plastic,stainless steel
|
|
MBL,KN
|
1.5
|
|
Wire bail
|
Standard Φ 2.5mm, 250mm length
|
Application
Aerial Anchor Clamp PA-560 is Suitable for Outdoor Applications – It is Installed on Telecommunication Supports, as well as Between Buildings and Industrial Constructions, to Secure and Protect Optical Cables
Test
Ultimate tensile strength test
Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.
This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.
Jera proceed this test on below products
Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.
We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.
Our internal laboratory is capable to proceed such a series of standard related type tests.
Welcome to contact us for further information.
