gjyxch fiber optic cable 1 fiber

FOC-F8-1,2-Steel-LSZH(BC)+2x0,4-Steel

Gjyxch optical drop cable other called figure 8 type drop cable or self-support drop wire, used to transmit light signal in last mile internet connections in FTTx network construction.

Features

Application: Outdoor
Fiber quantity: 1 fiber
Dimensions: 5.2*2.0 mm
Reinforcement: Steel

DESCRIPTION Specification Test

REVIEW

Key Features

1.2mm diameter steel strength member
High flexibility design, flame resistant protect
High mechanical strength for outdoor applications
Fiber core options: G652D, or G657 A1/A2
High connecting usability, easy access to the fiber core
UV resistant cable sheath for long time usage
Fair price outdoor drop cable

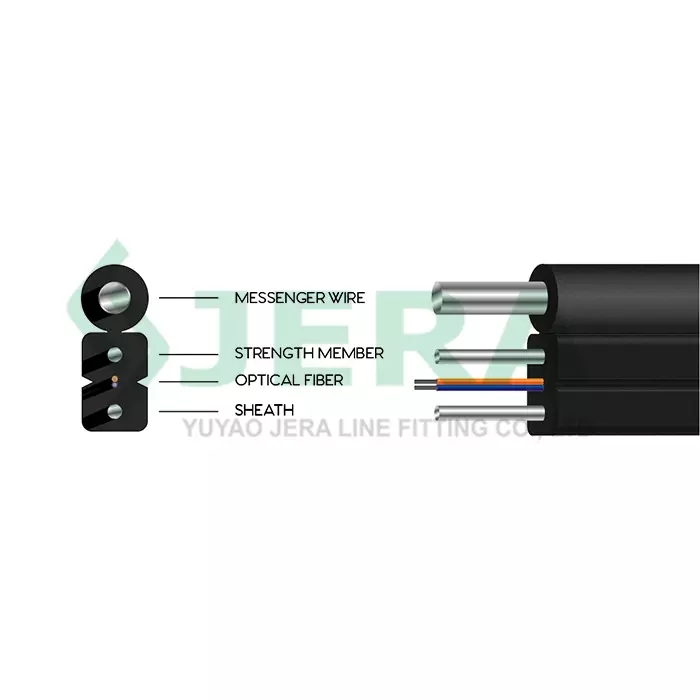

The cable consists of:

The cable dimensions:

- Width : 5.0 ± 0.2mm

- Height: 2.0±0.2mm

Fiber quantity is 1 fiber.

One of 1.2 mm diameter steel strength member/rod and two of 0.4 mm diameter FRP rod.

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

The Steel rods maybe produced of 0.5 mm diameter up to customer request. Strength members maybe extra protected by galvanization treatment.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Item	Technology Parameters
Applications	Outdoor or indoor
Product code	FOC-F8-1,2-Steel-LSZH(BC)+2×0,4-Steel-1x657A2-2,0×5,2-1000 m
Cable specification	2.0*5.2
Fiber color	Natural
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	Black(white color upon request)
Sheath material	LSZH
Cable dimension,mm	5.2(±0.2)*2.0 (±0.2）
Messenger wire	Steel wire, d=1.2mm
Strength member	Steel rod, d=0.4mm
Cable wight, kg/km	Approx. 22
Min. Bending radius mm	10(Static) 25 (Dynamic)
Attenuation, dB/km	≤0.4 at 1310nm, ≤0.3 at 1550nm
Short term tensile, N	2000
Long term tensile, N	800
Crush resistance, N/100mm	2200
Operation temperature, ℃	-60~+70
