GJFJV Optical fiber cable 2 fibers

GJFJV Optical fiber cable 2 fiber

GJFJV optical cable 2 fiber, also called round fiber optic drop cable is designed to used on last mile installation routes to connect final users to FTTH or GPON line. This FTTH drop cable especially suitable for application where requests small diameter and high flexibility during FTTH network line.

Features

Application: Indoor
Fiber quantity: 1 fiber
Dimensions: 3.0 mm
Reinforcement: Aramid yarn

DESCRIPTION Specification Test

REVIEW

Key Features

Perfect for indoor and outdoor distribution networks
High connecting usability, easy access to the fiber core
Reinforced with aramid yarn or polylefin upon request
Full dielectric and high flexibility design
Fire redundant protect and UV radiation protection
Minimum dimension and weight
Fair price

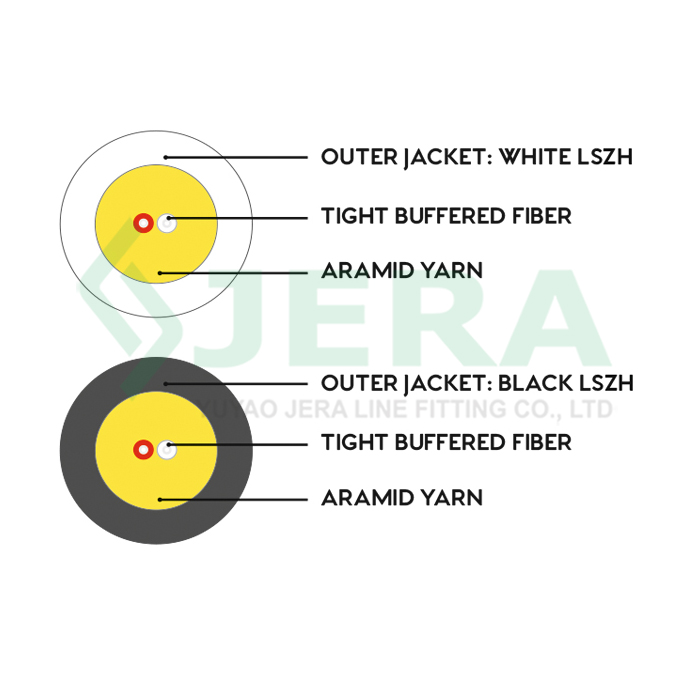

The cable consists of:

The cable dimensions:

- Diameter : 3.0/2.0 ± 0.2 mm

Fiber quantity is 1 fiber.

Aramid yarns

LSZH jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

read more

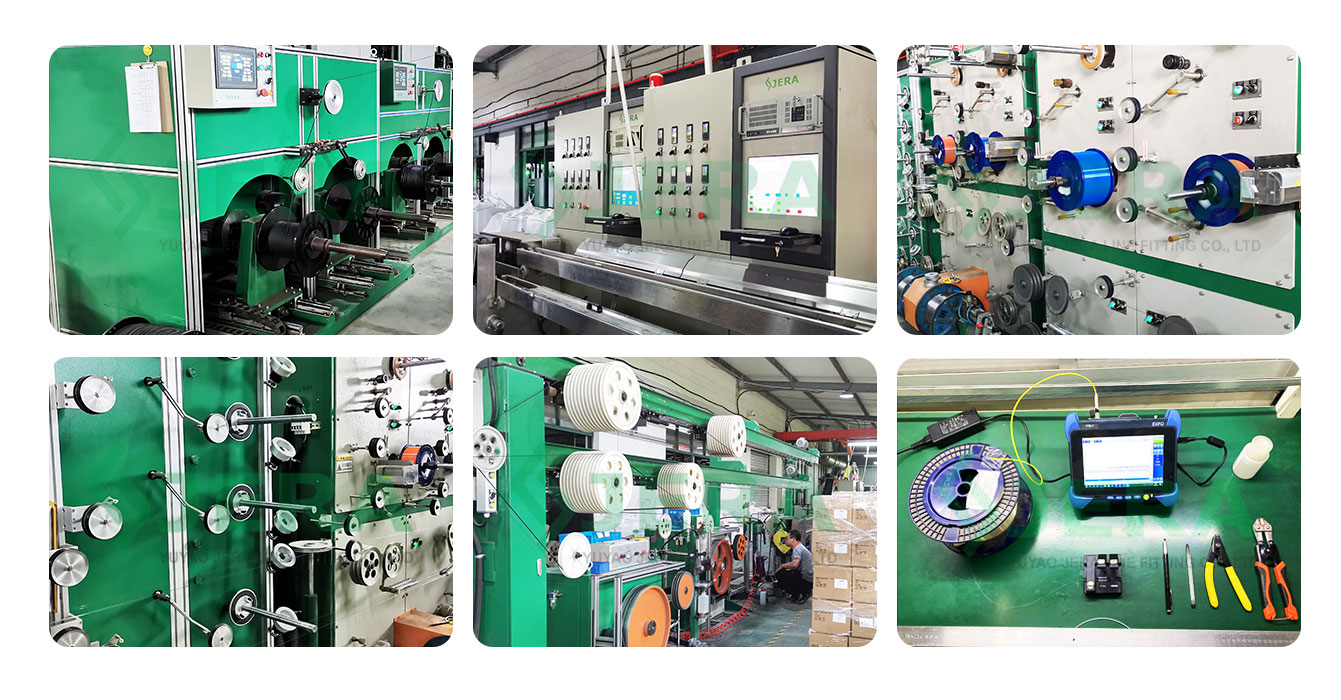

Manufacturing

Watch Our Factory Video

Technical specification

The cable consists of:

The cable dimensions:

- Diameter : 3.0/2.0 ± 0.2 mm

Fiber quantity is 1 fiber.
Aramid yarns
LSZH jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.

Item	Technology Parameters
Applications	Outdoor, indoor
Product code	FOC-R-LSZH(WEca)-PF61670+WB+RC+0.9-LSZH-1xG657-3.0 mm
Tight buffer material	PVC
Strength member material	Aramid yarn/Polyolefin
Fiber cores	1
Fiber core options	G.657A1, G.657A2
Cable jacket color	White/Black/Yellow
Sheath material	LSZH
Cable dimension,mm	3.0/2.0 (±0.2）
Tensile strength, N	400
Application temperature, ℃	-50~+70
Certification	IEC-60794-1-2, ISO9001:2015
Length	1000/2000 m per drum
Water blocking yarn	optional
Rip cord	optional
Sheath material: optional	LSZH (Fca), Eca, Dca, B2Ca
