FTTH optical drop cable 12 fibers

FTTH optical drop cable 12 fibers also called outdoor fiber optical cable is developed to used inddor and outdoor, on last mile installation routes to connect final users to FTTH or GPON line.
FTTH optical drop cable 12 fibers
Features
    • Application: Outdoor
    • Fiber quantity: 12 fiber
    • Dimentions: 3.6 mm
    • Reinforcement: Aramid yarn
Contact Us
DESCRIPTION Specification Test
REVIEW

Key Features

  • Perfect for indoor and outdoor distribution networks
  • High connecting usability, easy access to the fiber core
  • Reinforced with PBT loose tube and aramid yarns
  • Full dielectric and high flexibility design
  • Fire redundant protect and UV radiation protection
  • Tensile load rating up to 1kn, crush load up to 1kn/10cm
  • Minimum dimension and weight of drop cable
  • Competitive price


SPECIFICATION

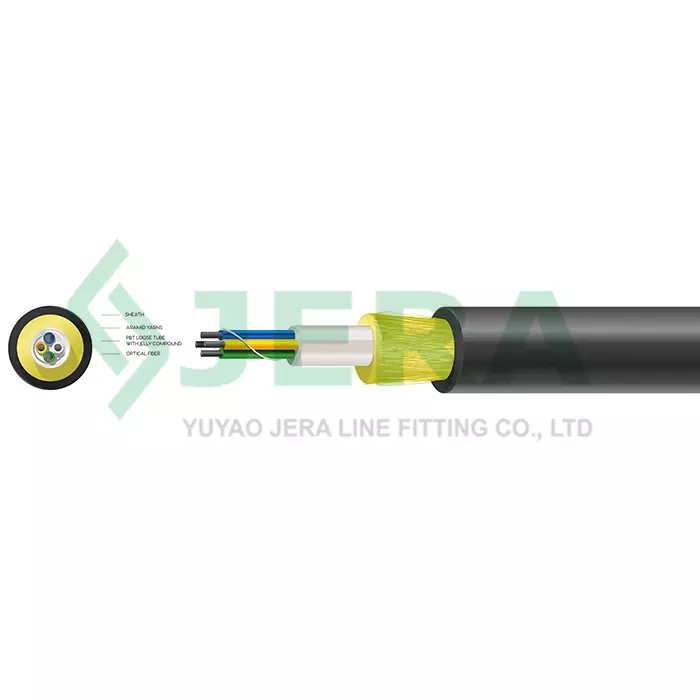

The cable consists of:

  • The cable dimensions:

- Diameter: 3.6 mm

  • Fiber quantity is 12 fiber.
  • Aramid yarns
  • PBT Loose tube with jelly compound
  • LSZH or TPU jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2, G.652D or G657B3 grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.



APPLICATION

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Applied in drain system distribution networks of fiber optics.



Technical specification

Item

Technology Parameters

Applications

Outdoor, indoor

Product code

FOC-R+LSZH(B)/TPU(B)-12*657A1-3.6

Diameter of loose tube(±0.6)mm

1.8

Thickness of loose tube(±0.03)mm

0.2

Fiber color

Natural,blue,yellow, green

Fiber type

SM, 9/125 (G.652.D, G.657A1, G.657A2,G657B3)

Sheath color

Black(white color upon request)

Sheath material

LSZH or TPU

Cable dimension,mm

3.6

Strength member

Aramid yarns

Cable wight, kg/km

Approx. 10.5

Min. Bending radius mm

10(Static) 20 (Dynamic)

Attenuation, dB/km

≤0.4 at 1310nm, ≤0.3 at 1550nm

Short term tensile, N

1000

Crush resistance, N/100mm

2200

Operation temperature, ℃

-60~+70
