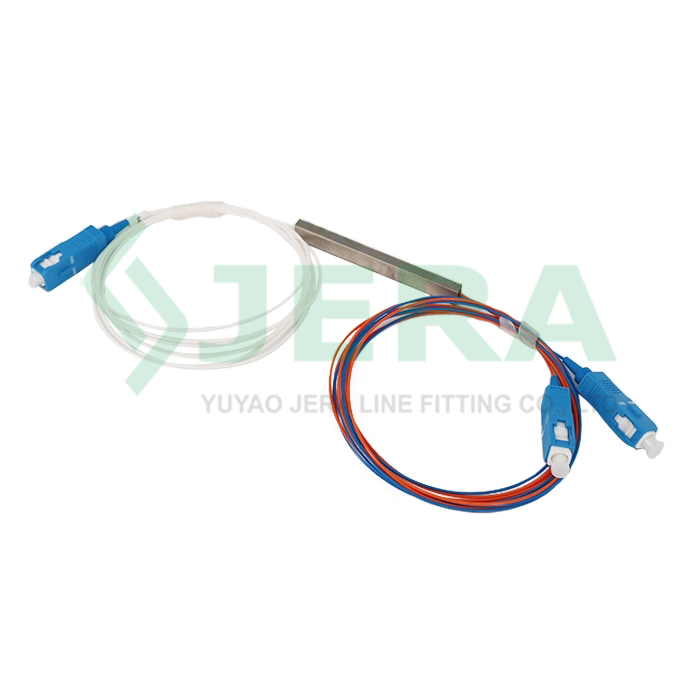

FTTH mini module PLC splitter 1×2 SC/UPC

mini module PLC splitter 1×2 SC/UPC

FTTH mini module PLC splitter either call blockless fiber optic PLC splitter, is a useful device used to divide equal light signal at each splitter output port, which will reduce the installation time and cost during FTTx line deployment.

Features

Adapter type: SC
Polish type: UPC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Compact design
Low insertion loss and low PDL
Good channel-to- channel uniformity
Suitable for both indoor and outdoor application
Meet telcordia GR-1221 and GR-1209
Excelletn mechanical stability
Fair price

FTTH mini module PLC splitter either call blockless fiber optic PLC splitter, is a useful device used to divide equal light signal at each splitter output port, which will reduce the installation time and cost during FTTx line deployment.

This singlemode fiber PLC splitters on planar Light wave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC Splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.

read more

Jera line is operating according to ISO 9001:2015. All fiber optic PLC splitters manufactured according to telcordia GR-1221 and GR-1209, we proceed essential fiber reflect test before shippment.

Jera line is a direct fiber optic cable factory, who provides a complete solution for aerial FTTx line constructions. Our product including fiber optic cables, drop cable patchcords, ADSS cable clamps, cable bracket, **fiber optic termination boxes** , guy grips, stainless steel bandings and so on.

Welcome to contact us for more information about this FTTH mini module PLC splitter 1×2 SC/UPC price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×2
Operating wavelength (nm)		1260-1650
Optical fiber thickness,mm mmmm		0.9
Optical fiber type		G657A1,G657A2
Adapter type		SC
Polish type		UPC
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40 to 85
Optical fiber length (m)		0.5, 1.0, 1.5
