FTTH Fiber wall outlet ODP-05T
FTTH Fiber wall outlet ODP-05T
Description:

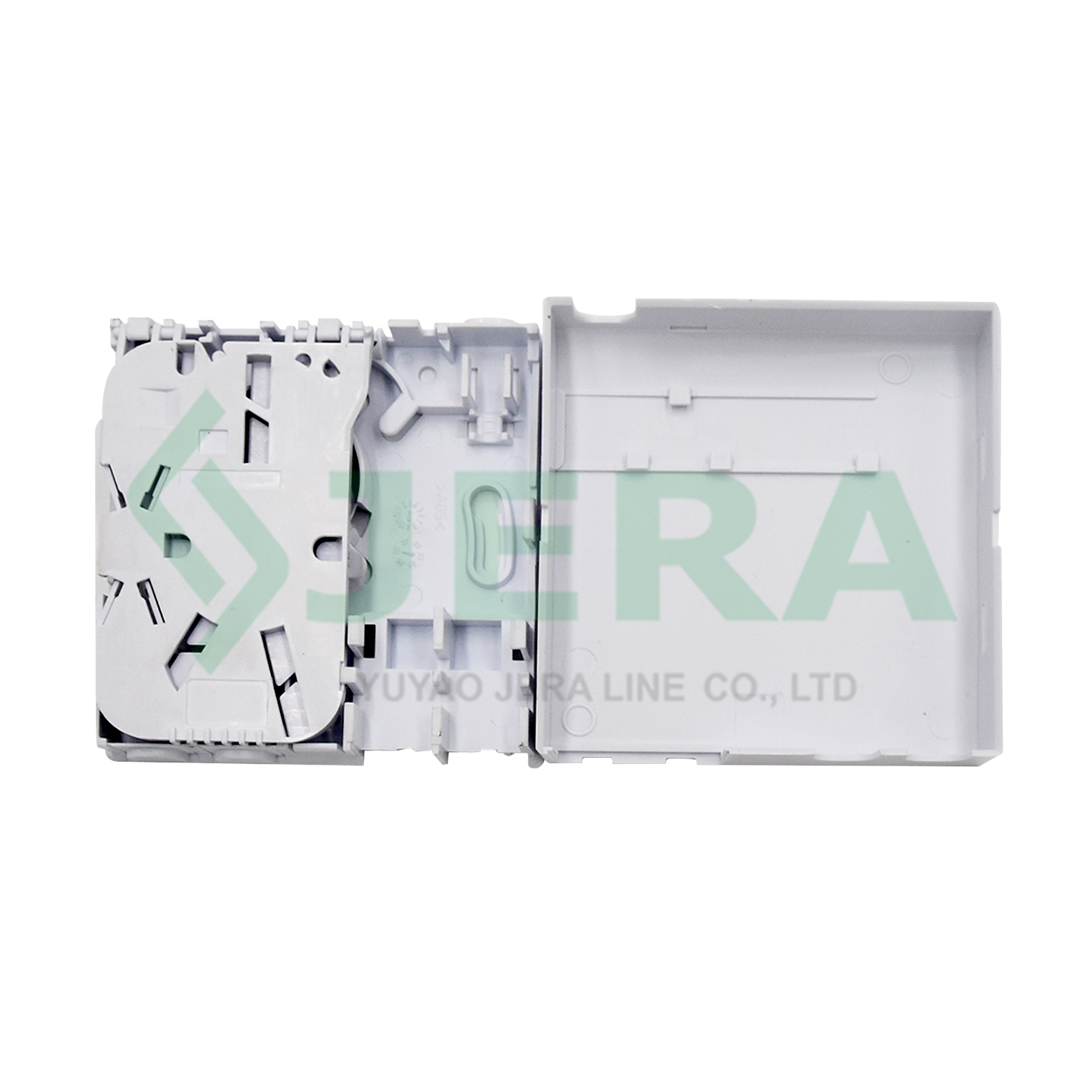

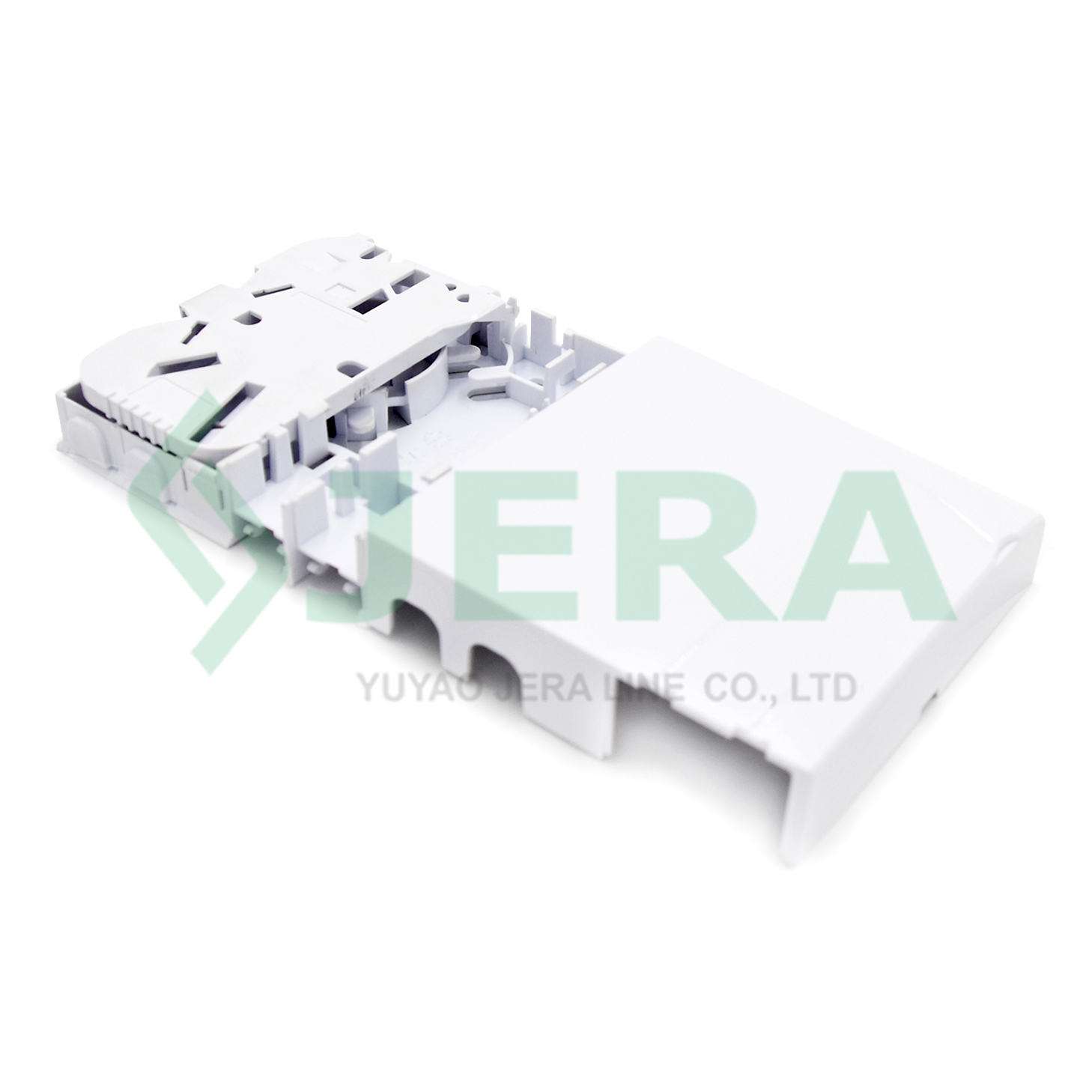

This FTTH Fiber wall outlet ODP-05T with a size of 80*80*20mm is designed for splicing and terminating indoor SC/LC optical cables and pigtails. This wall outlet socket panel can be installed using 1 SC simplex adapter or 1 pigtailed duplex LC adapter. The wall-mounted fiber socket faceplate is made of ABS plastic and has a beautiful appearance. It is suitable for FTTH, FTTO, FTTD, etc. and is convenient for indoor use.
- Application: Indoor
- Material： ABS

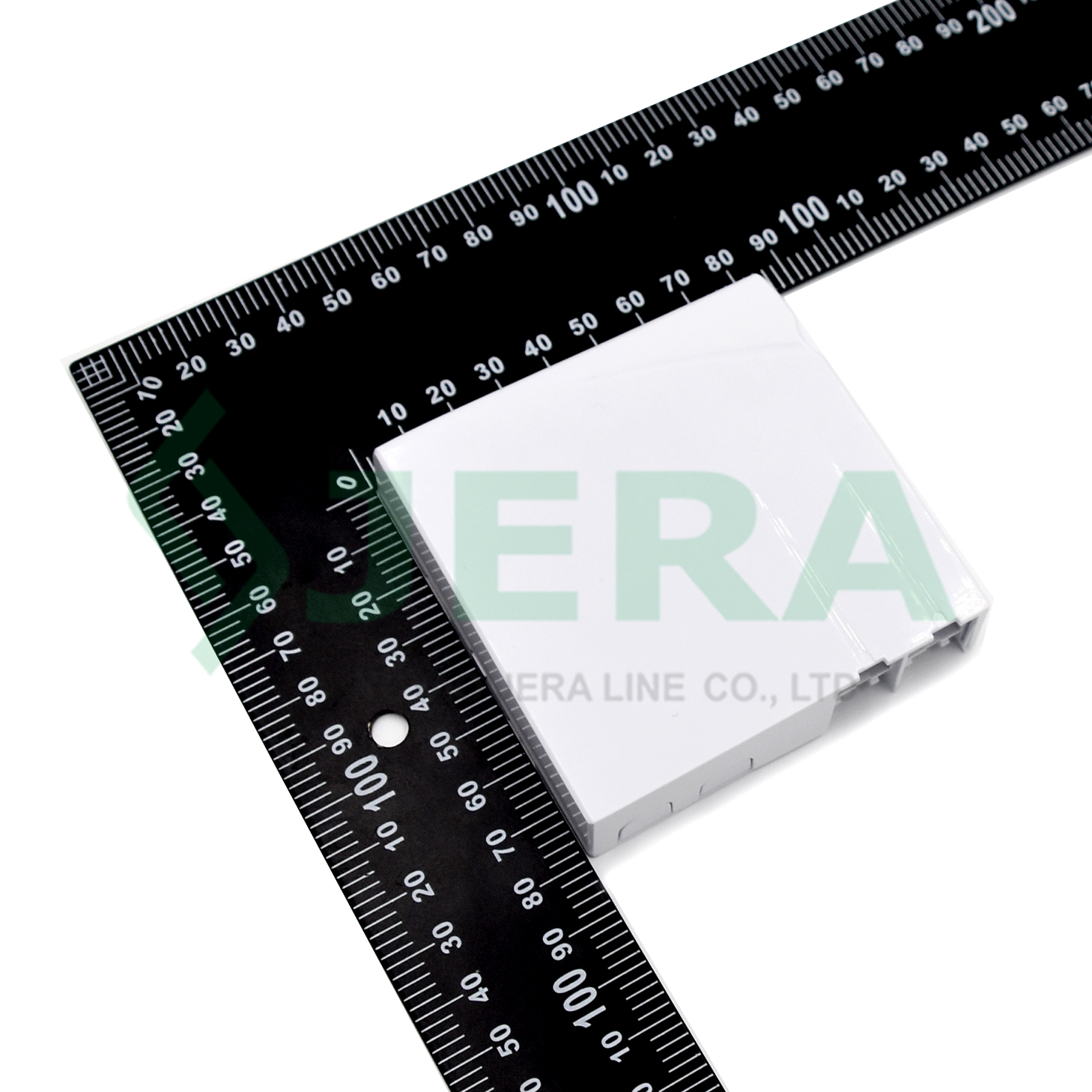

- Dimensions: 80*80*20
- Adapter SC type: 2
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Cover snap-on design, easy to install
- Adapter ports: 2 SC type
- Cable ports: 3 ports for round cable, up to 10 mm
- Extra molded lid to block the one SC input
- Material ABS
- Maybe equipped by splice tray for 2 fibers
- large-diameter bandaging posts inside for all-round protection
SPECIFICATION
Specification:

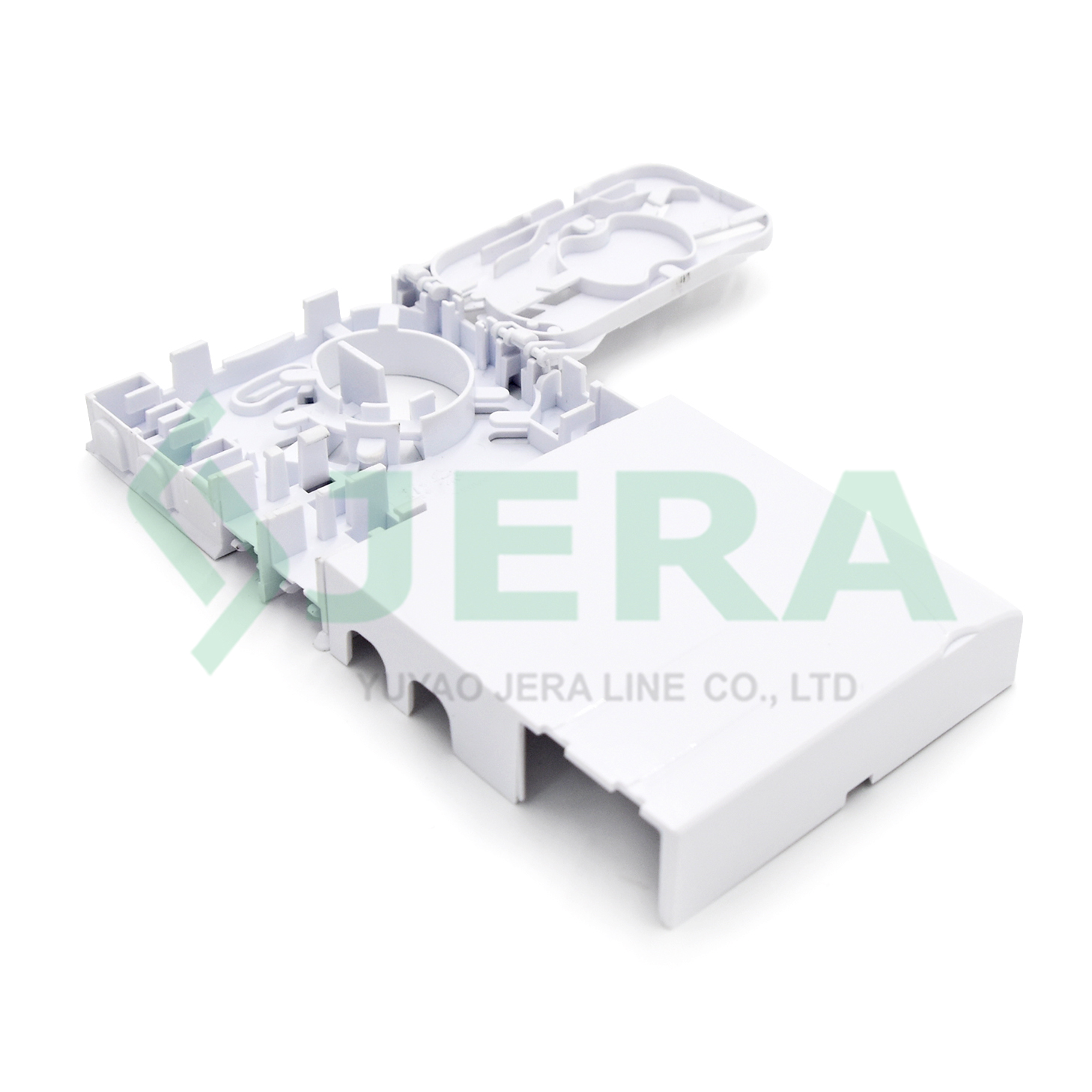

This Fiber Optic Faceplate consist of:

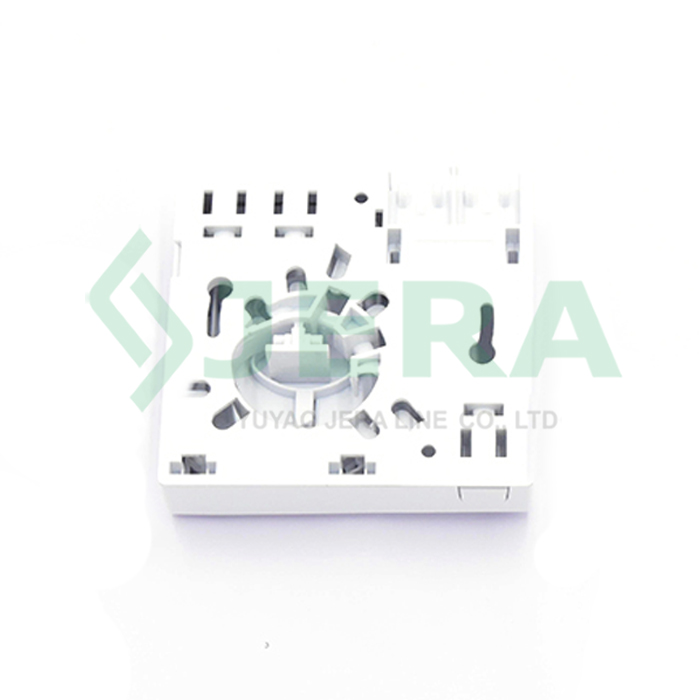

- Plastic socket, made of ABS
- Cover lid, made of ABS.
- Wall mount kit
Optical fiber information sockets are divided into multi-mode and single-mode according to the type of optical fiber connected. The specifications of information sockets include single hole, two holes, four holes, multi-user, etc.
ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.
The Fiber Wall Outlet is a compact and multifunctional solution that provides seamless connectivity for homes and offices. It serves as a critical component in fiber optic cabling network systems.

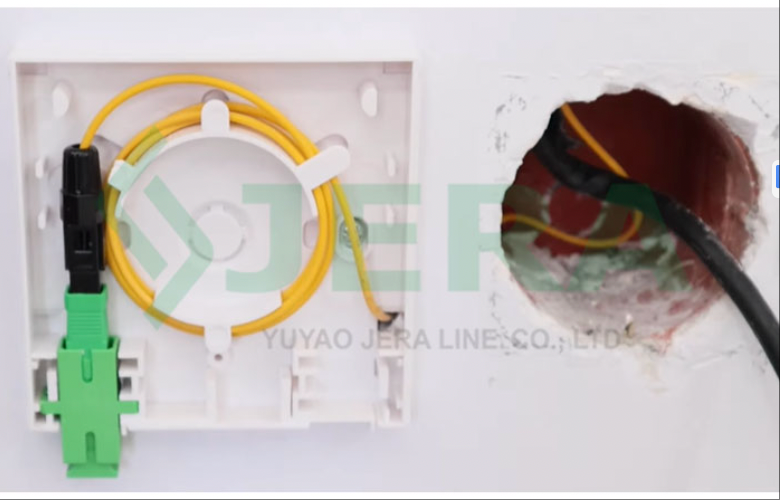

APPLICATION
Manufacturing
Watch Our Factory Video

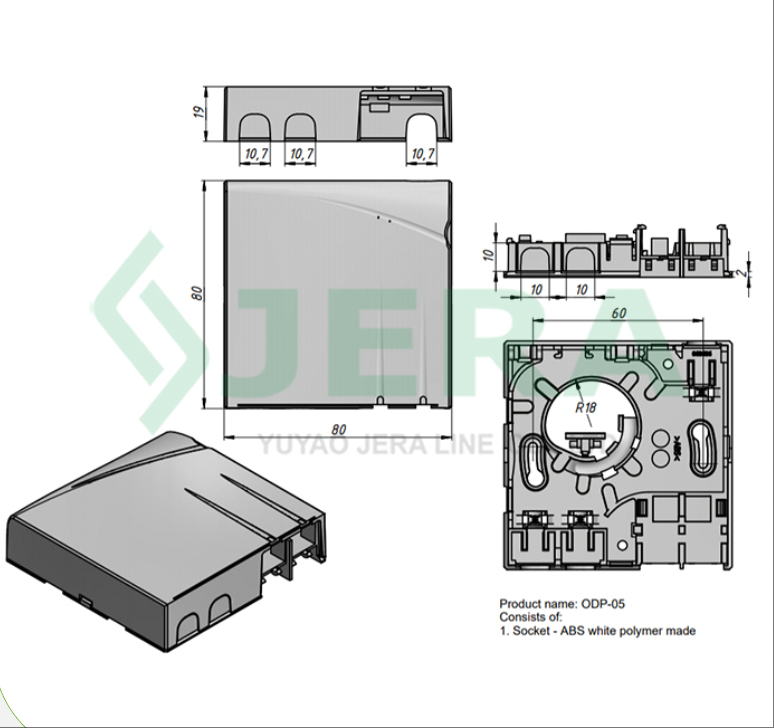

Technical specification
|
Product code |
ODP-05T |
|
Cable ports |
3 ports for round cable, up to 10 mm. |
|
Max cable diameters, mm |
10 |
|
Adapter ports |
2 for regular SC/LC size adapters. |
|
Dimensions (L x D x H), mm |
80* 80*20 |
|
Max splicing capacity (with additional tray) |
no fiber splicing space, maybe equipped by splice tray for 2 fibers splice |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test

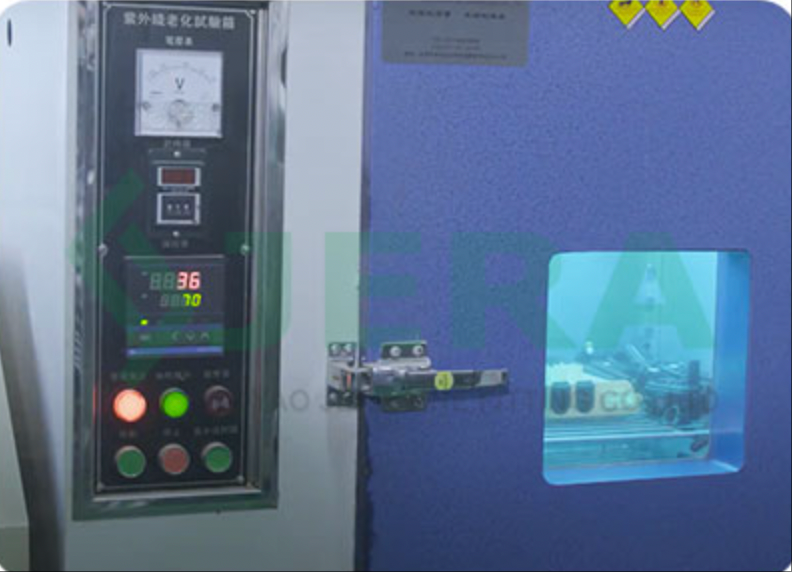

UV & temperature
test
Corrozion aging
test
Fire resistance
test
