Fiber access terminal box ODP-05 (pre assembled)
ODP-05 (pre assembled)
Description:

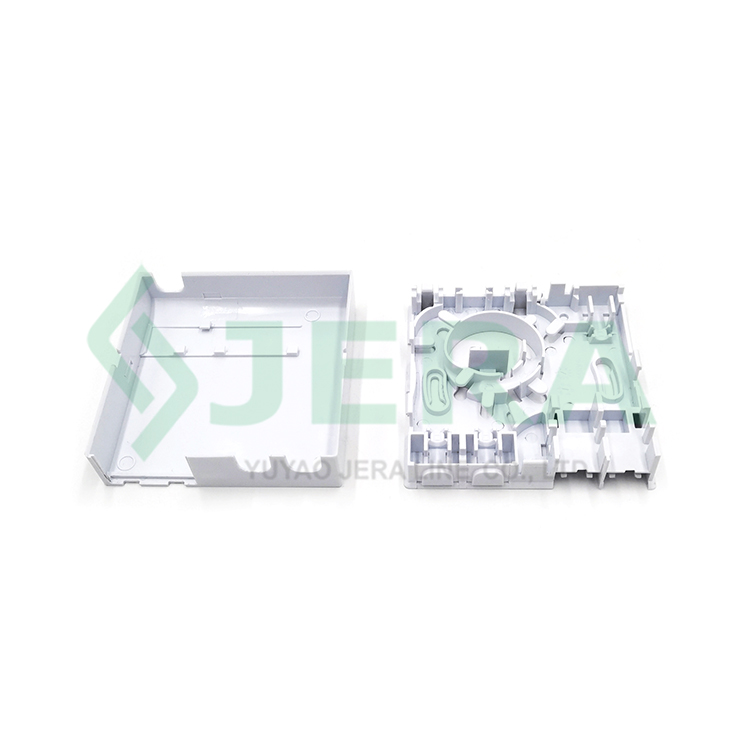

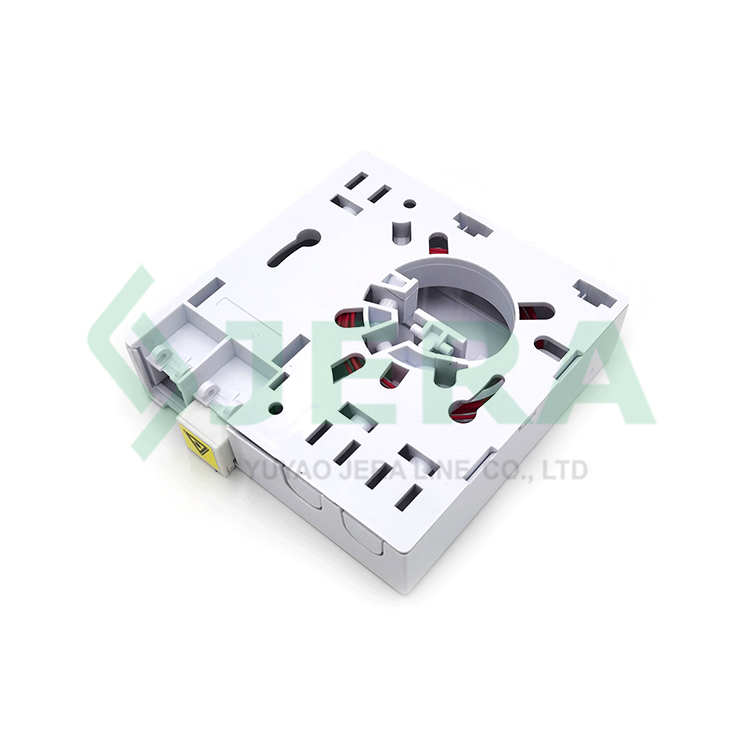

Fiber access terminal box ODB-05 either called fiber optic socket ODP-05 is used to connect passive optical network units. The Socket contains 2 SC regular ports, and additional 3 ports of round ports for feeding and drop cables. Access terminal box ODP-05 is designed for indoor wall installation. Whether you need 2 ports or 5 ports, you can choose ODB-05, which is both 2 port fiber socket wall access terminal box and 5 port indoor wall fiber outlet.
- Application: Indoor
- Material： ABS
- Dimensions: 80* 80*20
- Adapter SC type: 2
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Wide space for proper fiber bending radius.
- Pleasant appearance and design.
- Adapter ports: 2 SC type,
- Cable ports: 3 ports for round cable, up to 10 mm.
- Extra molded lid to block the one SC input.
- Easy to install and to operate.
- Application Indoor
- Material ABS
SPECIFICATION

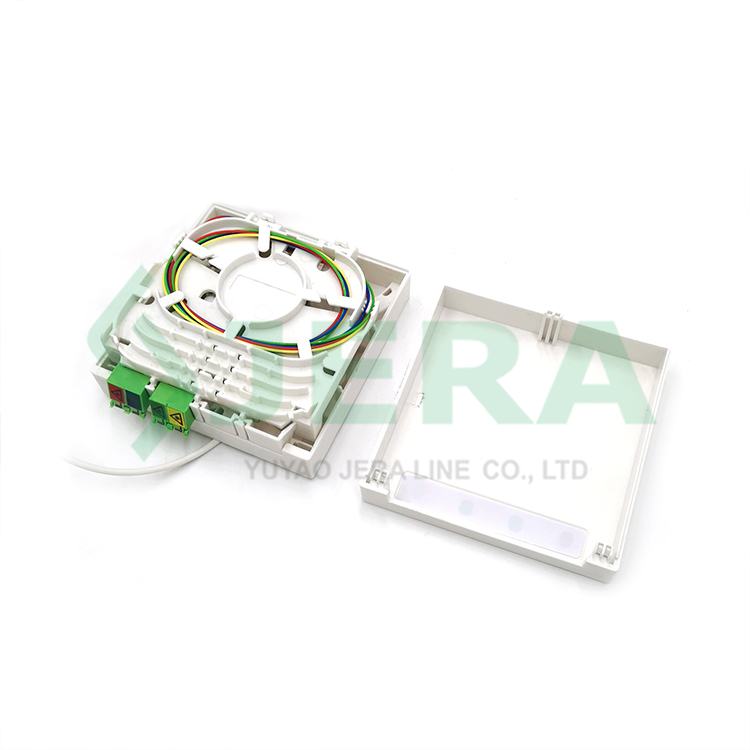

The product consist of:
- Plastic socket, made of ABS
- Cover lid, made of ABS.
- Shutter type SC/APC adapter
- SC/APC G657A2 pigtail
- Wall mount kit
Optical fiber information sockets are divided into multi-mode and single-mode according to the type of optical fiber connected. The specifications of information sockets include single hole, two holes, four holes, multi-user, etc.
ABS plastic is a terpolymer of three monomers: acrylonitrile (A), butadiene (B) and styrene (S). A makes it resistant to chemical corrosion, heat, and has a certain surface hardness, B makes it have high elasticity and toughness, and S makes it have the processing and molding characteristics of thermoplastics and improve electrical properties.
Shutter type SC/APC adapter is simple fiber optic adapter with angle polishing and dust prove lid. The lid also protect the end user’s eyes from laser beam.
Wall kit consist of screw for indoor wall applications.
APPLICATION
Applied to indoor. For connection of optical network units by splicing or quick SC connection.
Manufacturing
Watch Our Factory Video
Technical specification
|
Dimensions (L x D x H). mm |
80* 80*20 |
|
Capacity |
1 Fiber |
|
Adapter ports |
2 for regular SC/LC size adapters. |
|
Cable ports |
3 ports for round cable, up to 10 mm. |
|
Max splicing |
1 fiber, but maybe equipped by splice tray for 2 fibers splice |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
