FTTH fiber drop cable,4 fibers

FTTH fiber drop cable 4 fibers

FTTH fiber drop cable 4 fibers is a cable designed to transmit light single during last mile installation route to connect the final users to telecommunication network during aerial ftth line.

Features

Application: Outdoor
Fiber quantity: 4 fiber
Dimensions: 4.0 mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

Application

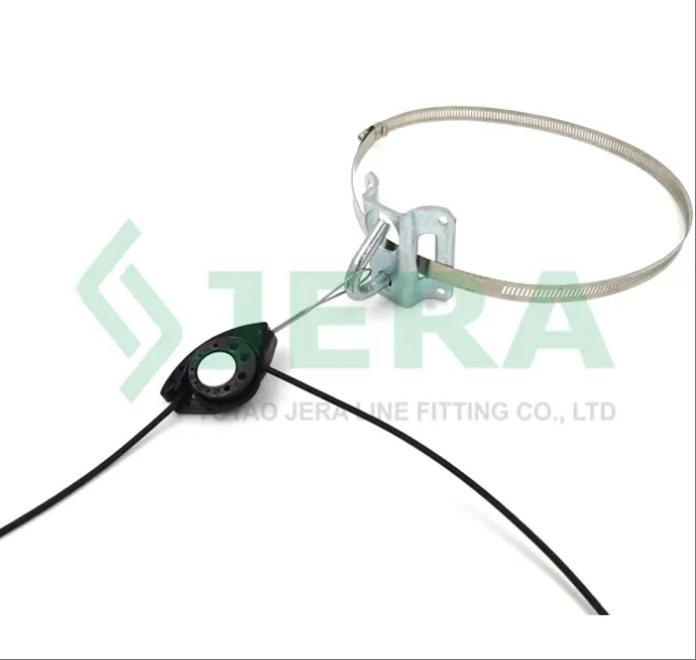

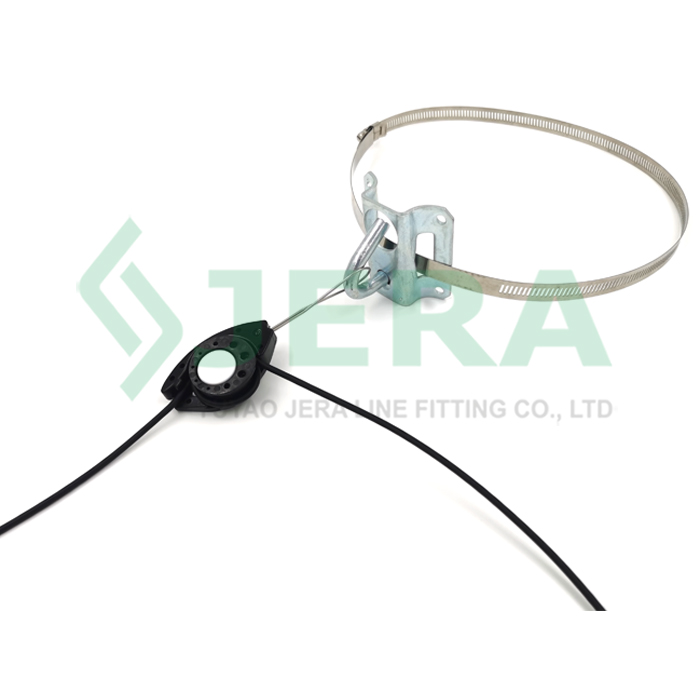

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Applied in drain system distribution networks of fiber optics. Blow in a cable into protective plastic pipes.

Technical specification

The cable consists of:

The cable dimensions:

- Diameter: 4.0 ± 0.2mm

Fiber quantity is 4 fiber.
Two of 0.8 mm diameter FRP rod.
HDPE jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

HDPE is a polymer material with high density, high strength and high chemical resistance.

Items	Parameters
Product code	FOC-R-HDPE-BC+2×0.8-FRP+1.2-PBT-4xG657A1-4.0
Product name	round ftth cable, reinforced by frp rods, 4 fibers
Loose tube material and diameter	PBT, 1.2(±0.2)mm
Strength member material and size	FRP rods, 0.8 mm
Fiber core options	G.652.D, G.657A1, G.657A2
Cable jacket color	Black
Jacket material	HDPE
Cable dimension,mm	4.0 (±0.2）
Short/long term tensile strength, N	1400/800
Crush resistance short/long term, N/100mm	5000/2500
Application temperature, ℃	-50~+70
Certification	IEC-60794-1-2, ISO9001:2015
Length	1000/2000 m per drum

Drawing

Test

Fiber optic core reflection test is proceed by Optical Time Domain Reflectometer (OTDR).

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.

We do this test 100% cables we produce.
