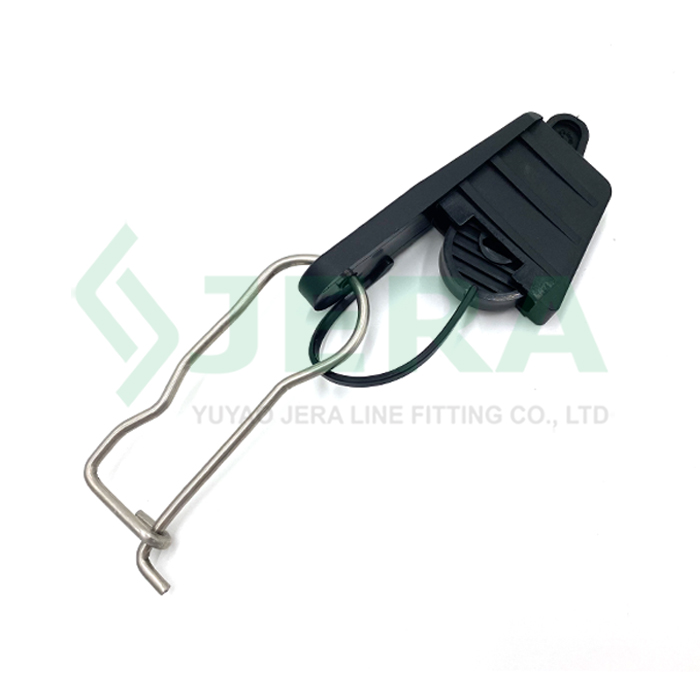

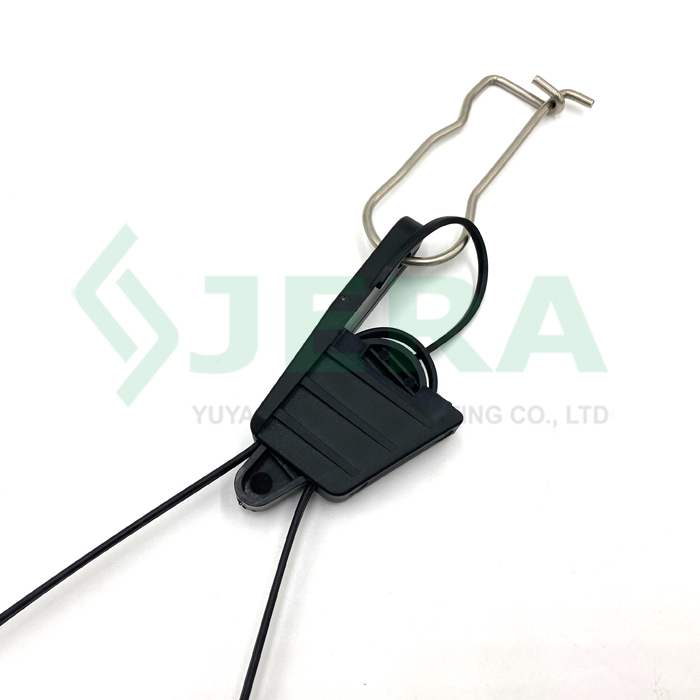

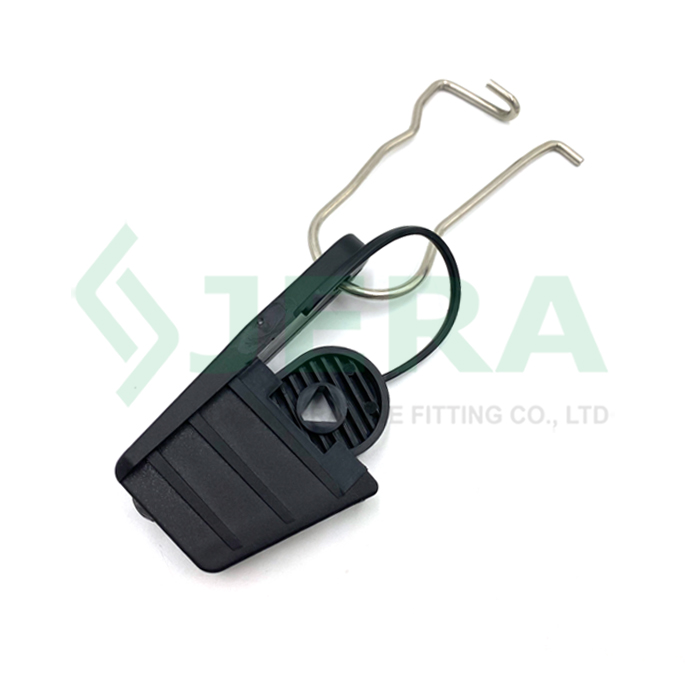

FTTH drop wire clamp D2.M

D2.M

FTTH drop wire clamp D2.M either called fiber drop clamp is designed to tension optical drop cable or telephone wires during during last mile network line deployment.

Features

Cable type: Flat
Cable size:2.0*3.0 / 2.0*5.0 mm
Span:30-50 m
MBL: 0.5KN

DESCRIPTION Specification Test

REVIEW

Key Features

Hand installtion, no need other tools
Anti-drop design of wire loop
Easy cable slack adjustment to apply proper tension
UV resistant polymer and galvanized steel, durable
Stable performance during long period application
Competitive price

The clamp applied in:

Cable diameter: 2.0*3.0 / 2.0*5.0 mm

MBL, kN: 0.5

The cable clamp is used to connect and fix the optical cable wires. Integrated design, more convenient to use.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

read more

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	Cable size (mm)	MBL,KN	Materials
D2.M	Flat 2.03.0 / 2.05.0 Round 2.0-5.0	0.5	UV resistant plastic and stainless steel
