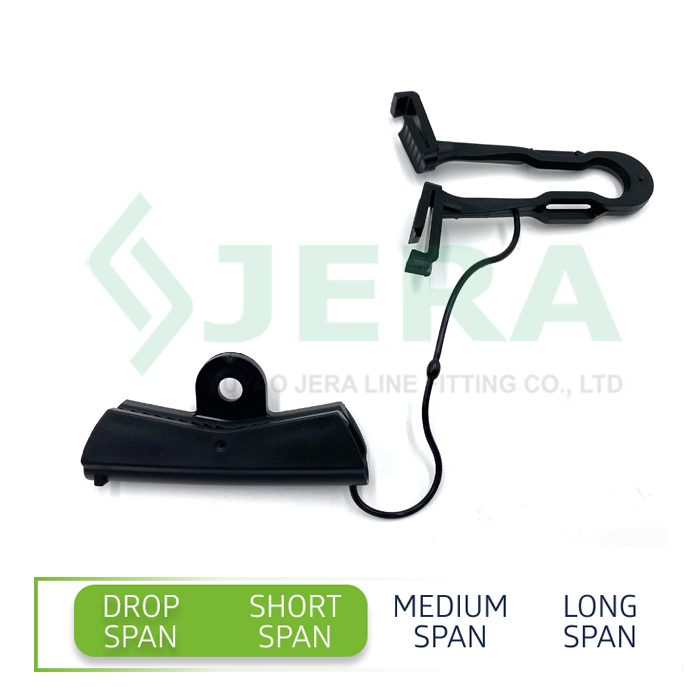

FTTH drop cable suspension clamp PS-M

Ftth drop cable suspension-clamp D7M / PS-M

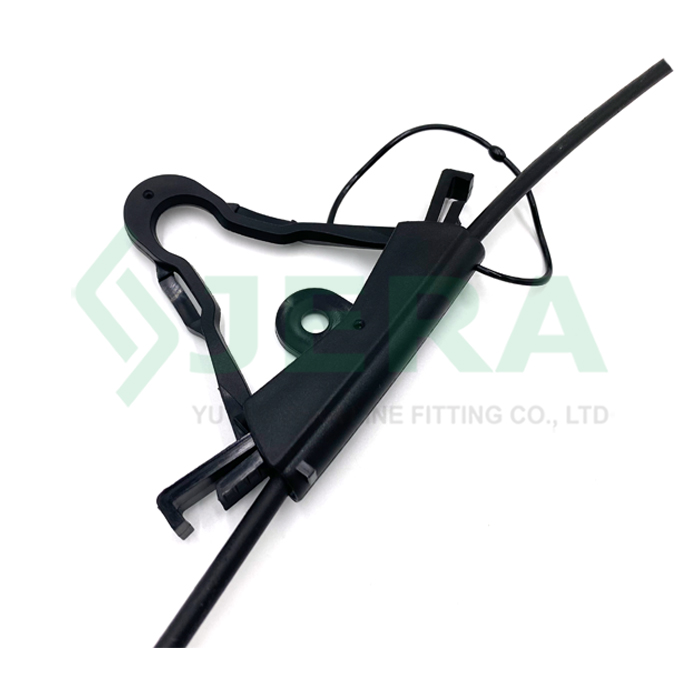

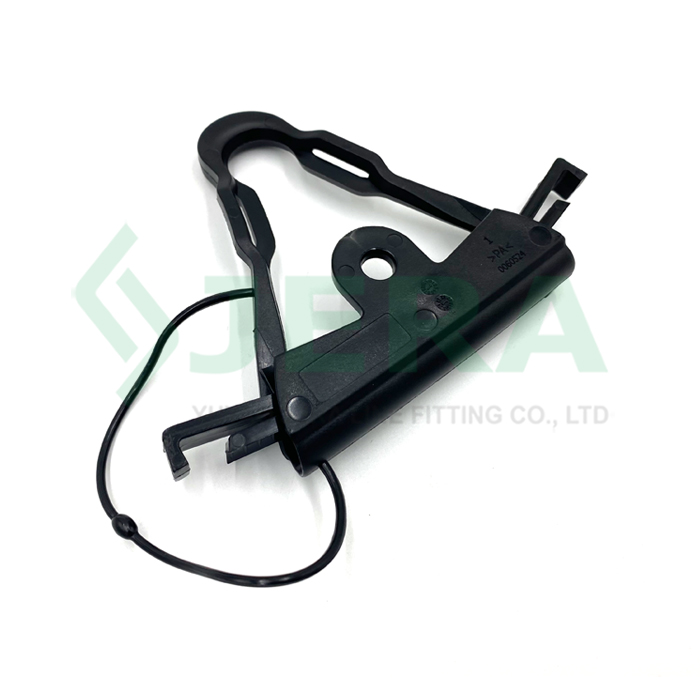

FTTH drop cable suspension clamp PS-M also called PSR FO D58 clamp used to suspend and fix round or flat fiber optic cable on pole or cross-arm during outdoor aerial FTTx line deployment.

Features

Quick speed installation by hand, no need other tools
Suitable for round and flat type fiber optical cable
UV resistant thermoplastic, durable
Both stainless steel strap(12.7×0.7mm) and pole bolt(Φ＜7mm) installation
Can be easy used with cross-arm and pigtail hook
High mechanical strength and stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

The FTTH Drop Cable Suspension Clamp D7M / PS-M is designed to suspend and support both round and flat FTTH drop cables during outdoor aerial FTTx deployments. It is widely used on intermediate poles to maintain proper cable routing and prevent excessive bending or mechanical stress during operation.

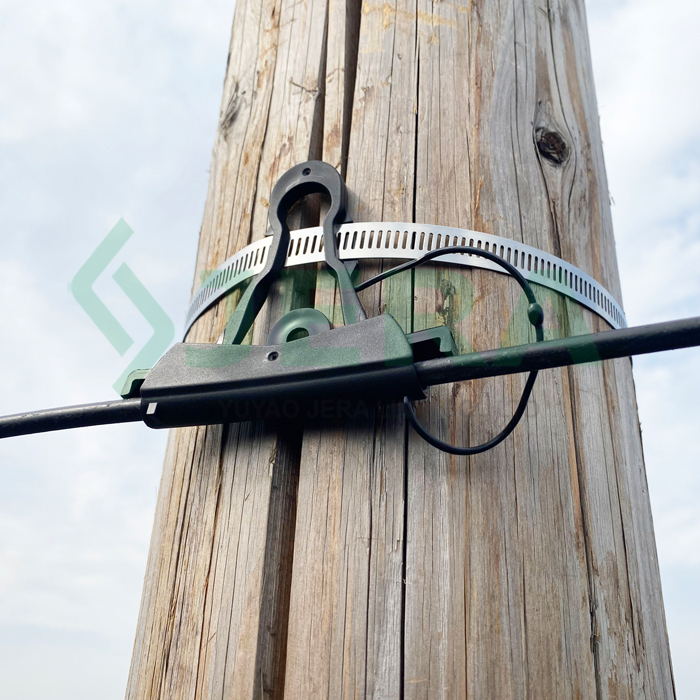

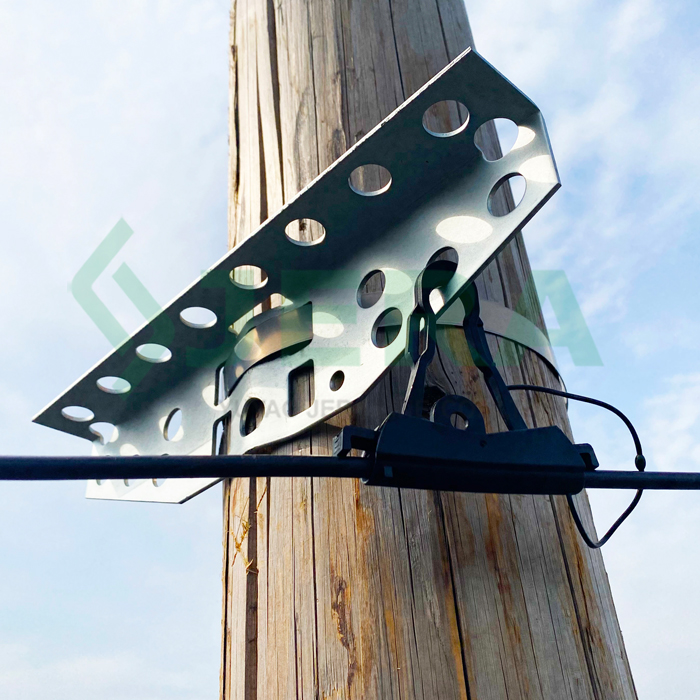

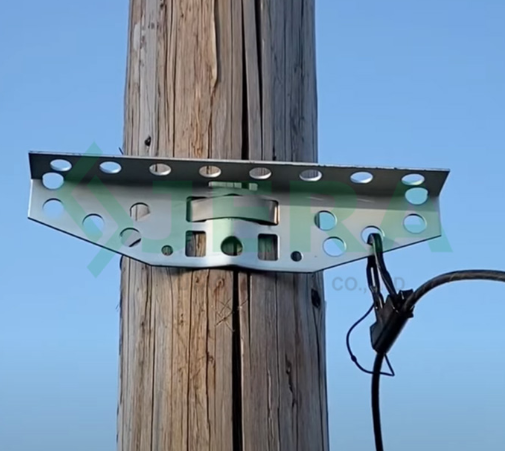

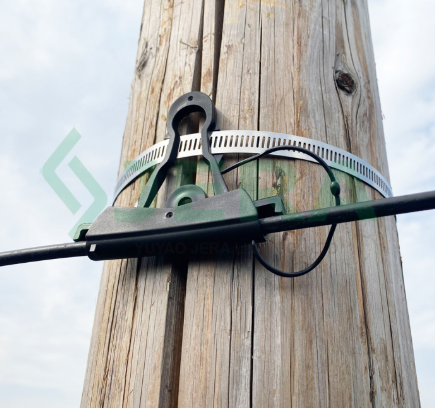

Suitable for installation on utility poles using stainless steel bands, pole bolts, pigtail hooks, or cross-arm brackets, this clamp is ideal for residential communities, commercial buildings, campus networks, and rural broadband projects. The UV-resistant thermoplastic construction provides excellent weather resistance, while the tool-free installation reduces deployment time and labor costs. Its compact design ensures stable cable support without damaging the cable jacket, making it an efficient solution for last-mile FTTH infrastructure.

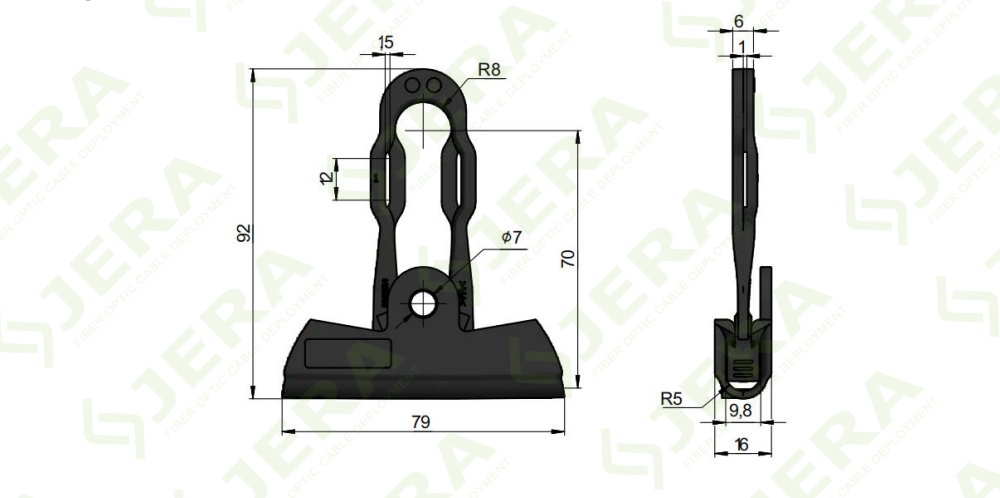

Technical specification

Product codes	Round cable size, mm	Flat cable size,mm	MBL,KN	Material
PS-M	4-7	Width 5-9mm/Height 3-4mm	0.3	UV resistant plastic

TEST

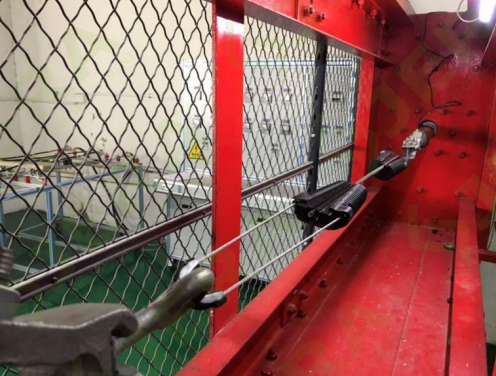

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
