FTTH drop cable patchcords SC/UPC 150M

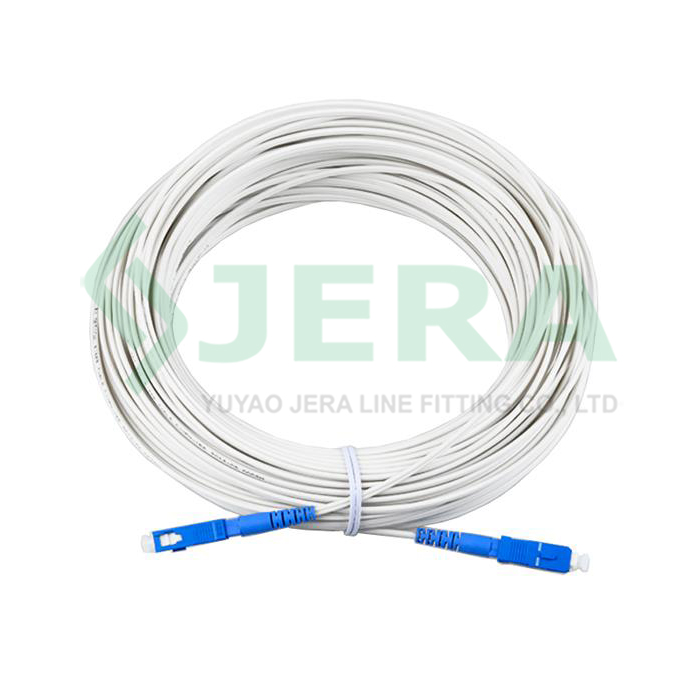

FTTH Drop cable patchcordS 150m also called simplex indoor drop cable patch cord is an indoor fiber optical drop cable each end pre-terminated with SC/UPC connector which help to save time and costs during FTTH line deployment for lline-man or end users.

Features

Capped with SC/UPC connectors
Reinforced with 0.4mm steel rods, provide proper tensile strength
LSZH cable outer jacket, white or black optional
Low insertion loss, high return loss
High stability in long period field application
Good in repeatability and exchangeability
Direct factory price

DESCRIPTION Specification Test

REVIEW

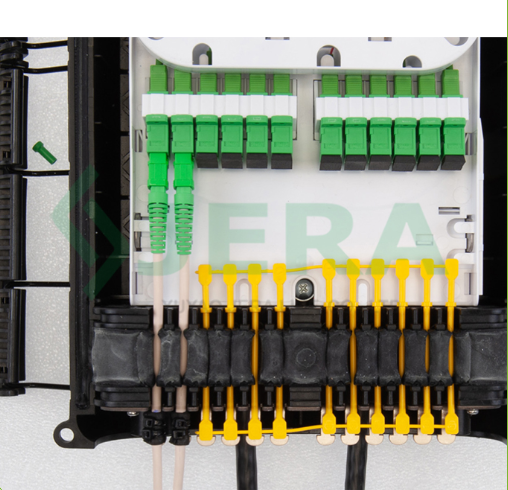

Applied in tooptical transmitter, receiver, PON boxes and other telecommunication equipment during FTTX solutions.

Technical specification

Item	Value
Polish types	SC/UPC
Fiber cores	G652D, G657A1, G657A2
Fiber counts	Simplex
Fiber modes	Single-mode 9/125
Cable color	White
Size,mm	2.0*3.0
Tensile strength	200
Length,m	150
Insertion losses(IL),dB	≤0.3
Material	LSZH
Working temperature	-40~+85℃

Test

The loss of signal, which occurs along the length of a fiber optic link, is called insertion loss, and insertion loss test is for measuring the losses of light appears in fiber optic core and fiber optic cable connections. The measurement of the amount of light that is reflected back toward the source is called return loss test. and insertion loss and return loss are all measured in decibels(dBs).

Regardless of type, when a signal travels through a system or a component, power (signal) loss is unavoidable. When light passes through the fiber, if the loss is very small, it will not affect the quality of the optical signal. The higher the loss, the lower the amount reflected. Therefore, the higher the return loss, the lower the reflection and the better the connection.

Jera proceed test on below products

-Fiber optic drop cables

-Fiber optical adapters

-Fiber optical patch cords

-Fiber optical pigtails

-Fiber optical PLC splitters

For fiber core connections test is operated by IEC-61300-3-4 (Method B)standards. Procedure IEC-61300-3-4 (Method C) standards.

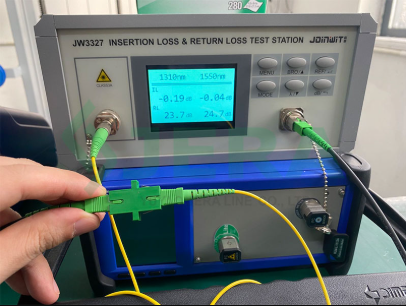

We use test equipment in our daily quality testing,To ensure our customer could receive products which meet quality requirements. Our internal laboratory is capable to proceed such a series of standard related type tests.
