FTTH 4 Core DIN Rail Terminal ATB-D4-SC

ATB-D4-SC

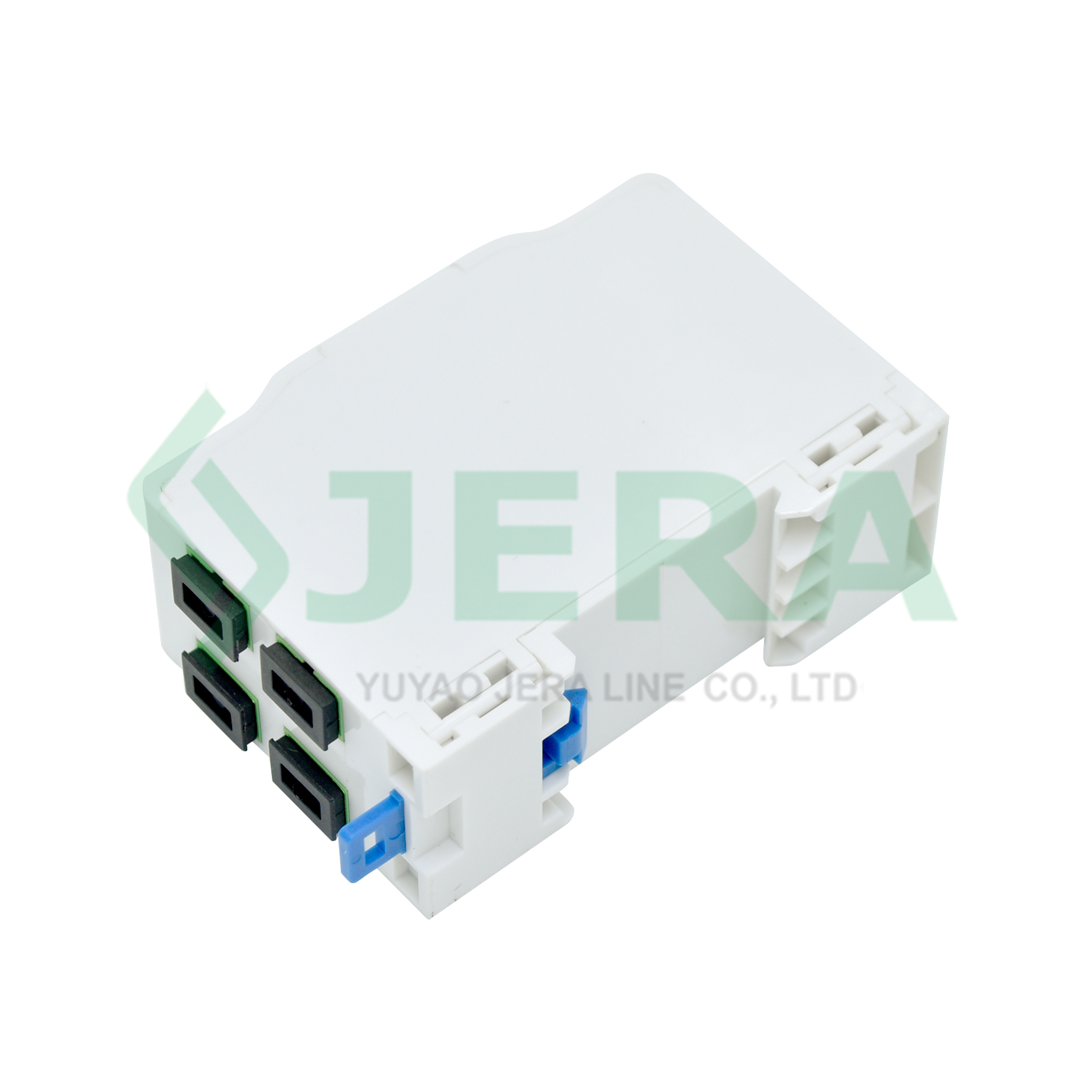

The ATB-D4-SC FTTH 4 Core DIN Rail Terminal is a versatile fiber optic terminal designed for Fiber to the Home (FTTH) applications. Supporting 4 fiber cores, this terminal ensures secure and efficient fiber splicing and distribution. Its DIN rail mount design allows for easy installation in various environments, making it ideal for commercial and residential settings. The ATB-D4-SC provides reliable connectivity and outstanding performance, facilitating high-speed data transmission for modern ne

Features

4 Core Capacity
DIN Rail Mounting
Robust Protection
Efficient Fiber Management
Versatile Application
High-Performance Connectivity
User-Friendly Design
Safety Compliance

DESCRIPTION Specification Test

REVIEW

The FTTH 4 Core DIN Rail Terminal ATB-D4-SC is a compact and efficient fiber optic termination box designed for FTTH networks. With 4-core capacity and SC adapter compatibility, it is ideal for residential, commercial, and small-scale industrial applications. Its DIN rail mounting ensures easy installation in distribution panels, while its durable, flame-retardant construction suits both indoor and outdoor use. The box supports seamless fiber splicing, termination, and cable management, making it a reliable solution for fiber distribution points and modular network integration in modern FTTH infrastructure.

Technical specification

Dimensions and Capability
*Dimensions (WHD)*	9031.559.7mm
Material	ABS
Adapter Capacity	4pcs with SC Simplex or LC duplex adaptor
Numberof Cable Entrance/Exit	1/4
Capacity	4cores

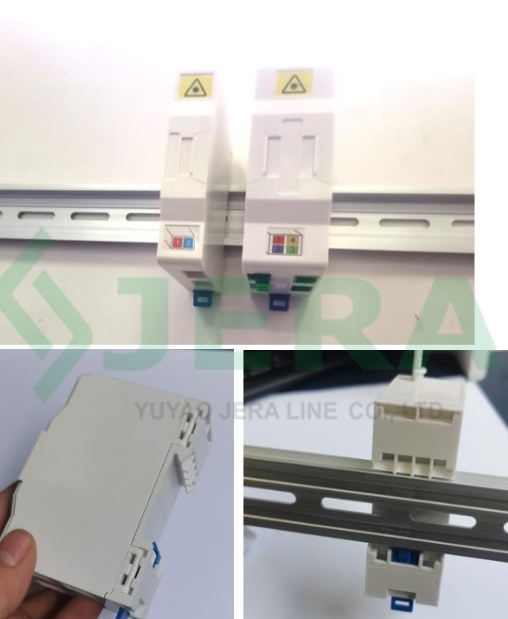

Installation	DIN rolling guide
Drop Cable (Round)	Φ5.5mm
Optional Accessories	Adapters, Pigtails, Protection sleeve
Weight	62g （ empty ）
Color	Gray
Protection grade	IP55
Applicable mode	G657A2
Optical performance	IL < 0,3 dB, RL ≥ 60 dB (APC)
Impact resistance	IK07
Fire resistance	UL94 V0

Peration Conditions
Temperature	-40℃ — 85℃
Humidity	≤85% at 30℃
Air Pressure	70kPa – 106kPa

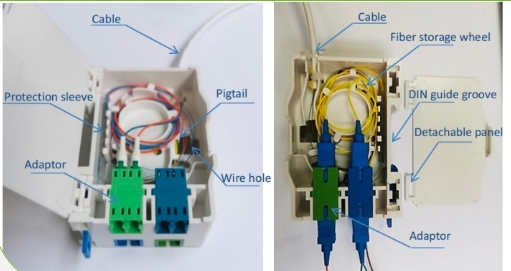

Drawing

Test

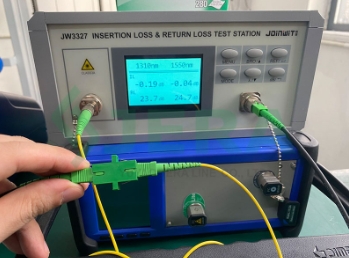

The loss of signal, which occurs along the length of a fiber optic link, is called insertion loss, and insertion loss test is for measuring the losses of light appears in fiber optic core and fiber optic cable connections. The measurement of the amount of light that is reflected back toward the source is called return loss test. and insertion loss and return loss are all measured in decibels(dBs).

Regardless of type, when a signal travels through a system or a component, power (signal) loss is unavoidable. When light passes through the fiber, if the loss is very small, it will not affect the quality of the optical signal. The higher the loss, the lower the amount reflected. Therefore, the higher the return loss, the lower the reflection and the better the connection.

Jera proceed test on below products

-Fiber optic drop cables

-Fiber optical adapters

-Fiber optical patch cords

-Fiber optical pigtails

-Fiber optical PLC splitters

For fiber core connections test is operated by IEC-61300-3-4 (Method B)standards. Procedure IEC-61300-3-4 (Method C) standards.

We use test equipment in our daily quality testing,To ensure our customer could receive products which meet quality requirements. Our internal laboratory is capable to proceed such a series of standard related type tests.
