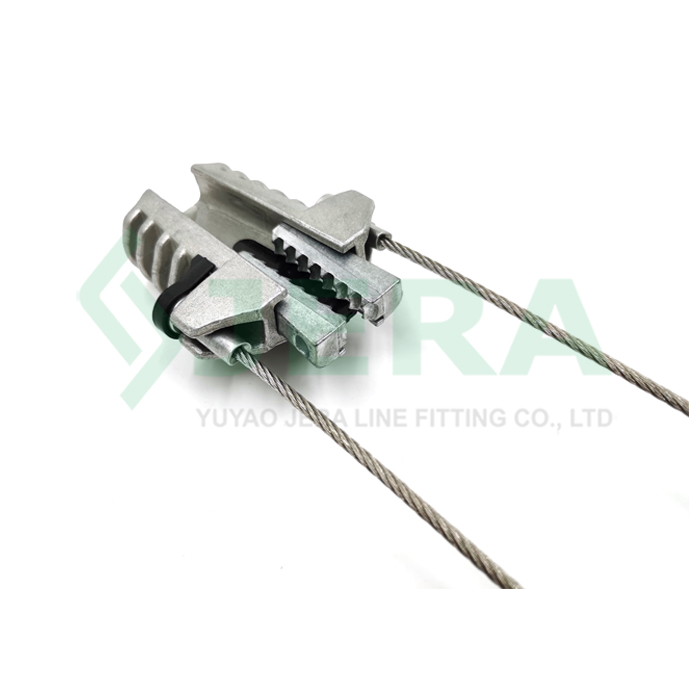

Figure eight cable anchor clamp, PA-07-320

Figure eight cable anchor clamp, PA-07×320

PA-07x320

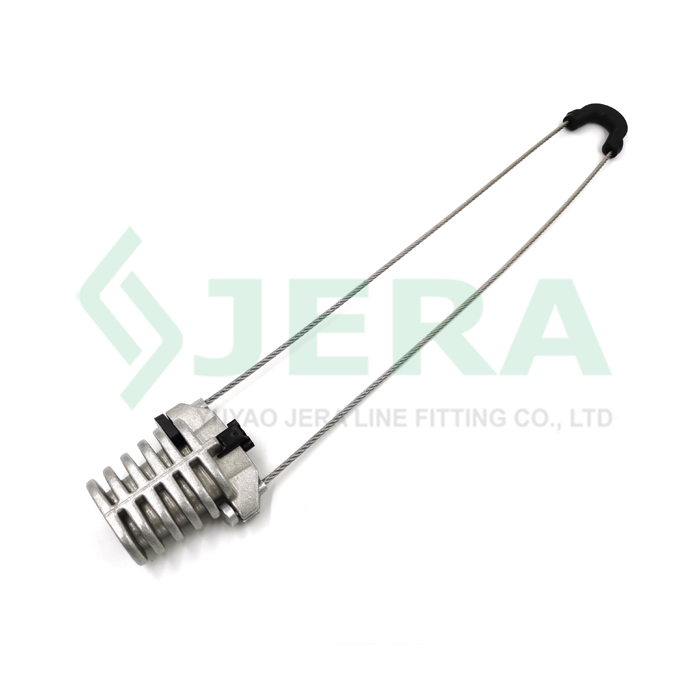

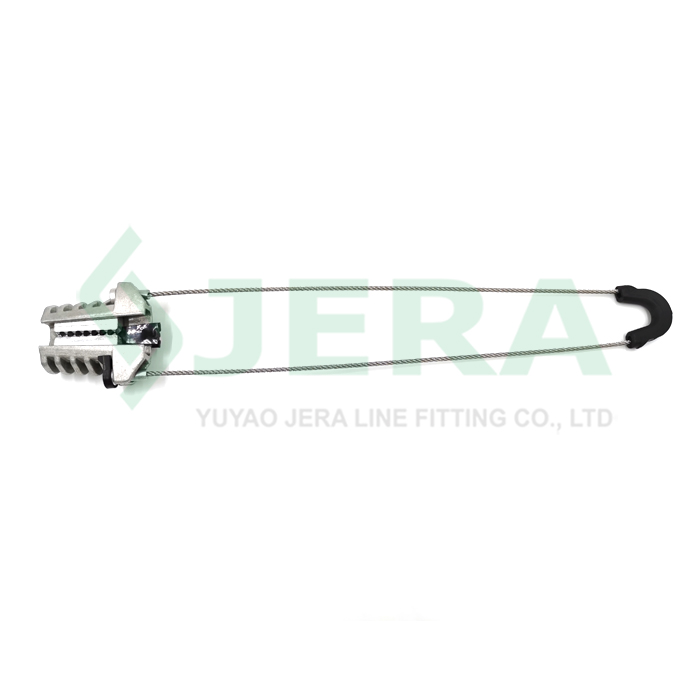

Tensioning clamp PA-07-320 other called aluminum anchoring clamp is developed to tension and anchor fiber optic cable with steel messenger during outdoor FTTX network constructions.

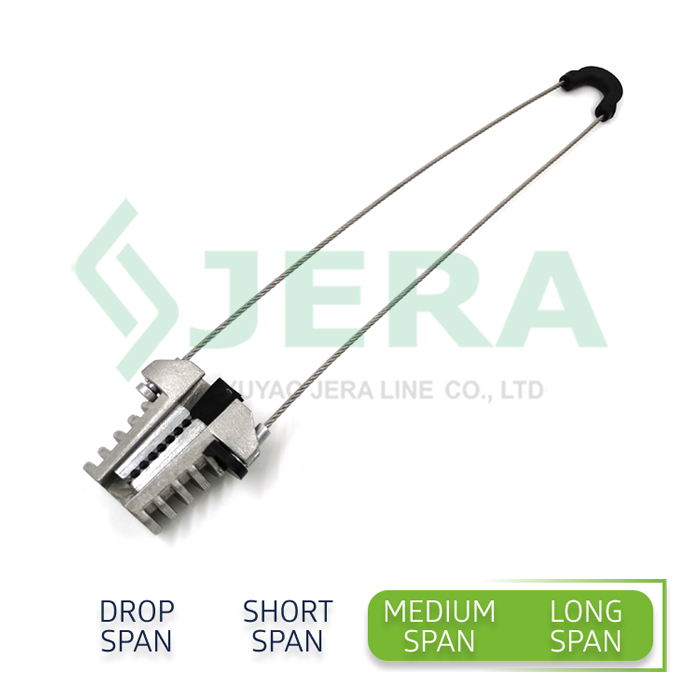

Figure eight cable anchor clamp, PA-07×320

Features

Self-adjustable wedge
Easy installation, tools free
Aluminum alloy and stainless steel material, durable
No cable shell damage and slipping during installation
Excellent mechanical strength
Perfect environmental stability
Fair price

DESCRIPTION Specification Test

REVIEW

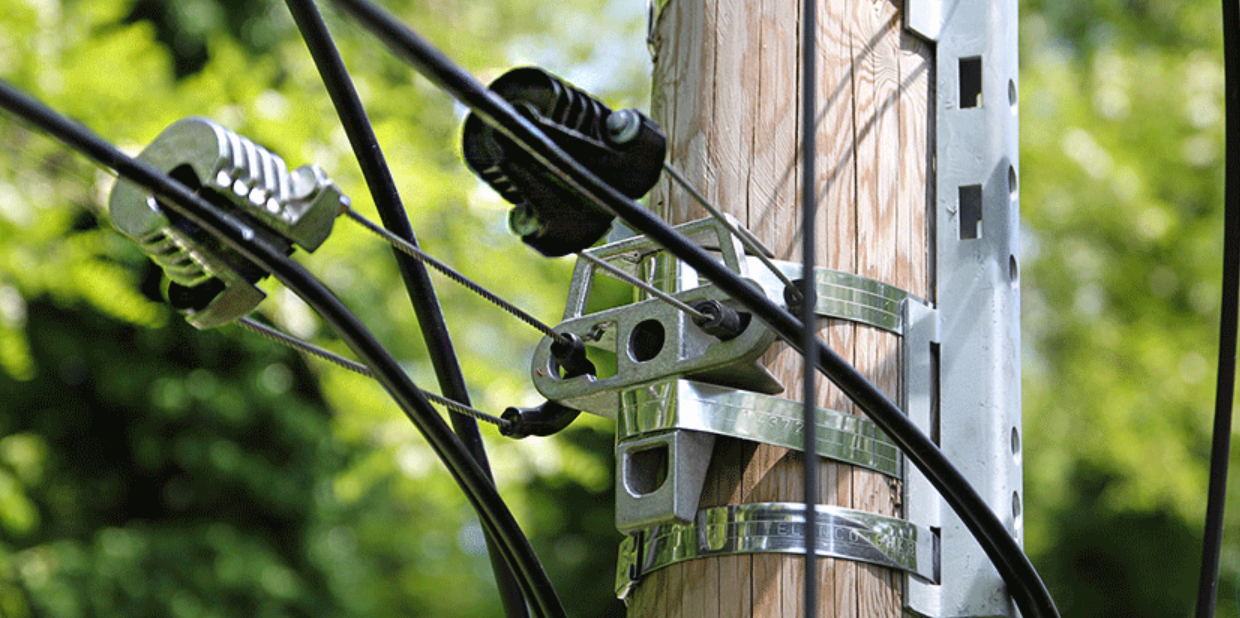

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

Technical specification

Product code	Messenger diameter size,mm	Material	MBL,KN	Bail length,mm
PA-07-320	4-7	Stainless steel, aluminum, zink	7	520/320

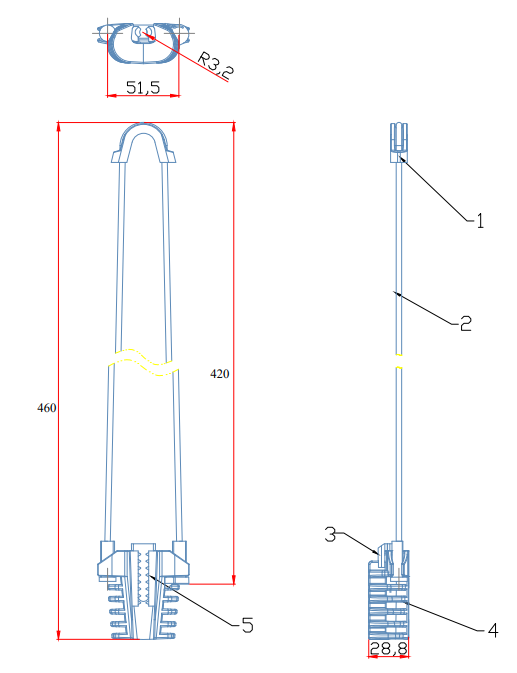

Drawing

Test

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
