Figure 8 drop with steel wire 1 fiber also called FTTH Figure 8 Drop Cable is a device used to suspend and support fiber optic cables, usually used in outdoor environments, such as telecommunications and network infrastructure, to ensure the safety and stability of fiber optic cables. The design and material selection of this equipment ensure that fiber optic cables can maintain good condition in various harsh environments, thus ensuring the stability and reliability of communications and networ

Features

Using steel wire, it has high strength and durability
Suitable for outdoor environment
Simple design and easy installation
Rapid deployment
Ensure the stability and reliability of fiber optic cables
Cost effective

DESCRIPTION Specification Test

REVIEW

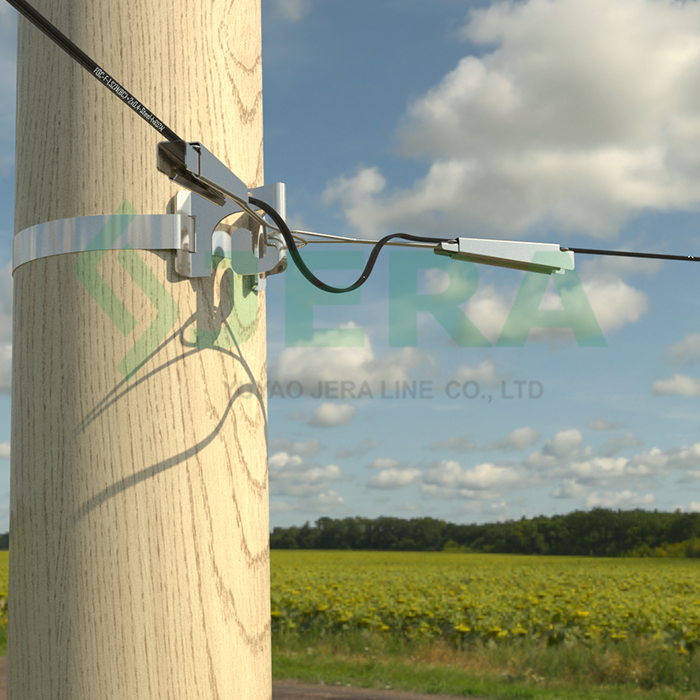

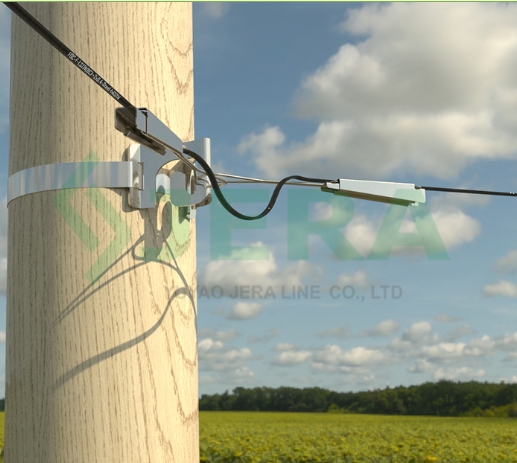

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Steel Messenger figure 8 drop cable is designed for outdoor fiber optic communication networks, this cable is usually used to connect buildings and outdoor equipment in fiber optic communication networks, such as fiber optic access points and user terminals. Jera Line is a world-renowned supplier of optical fiber communication solutions. Our factory is located in China, close to the port, and produces optical fibers , optical fiber distribution boxes, cable fittings, etc.

Technical specification

Messenger type	Glvanized steel wire/steel wire strand
Messenger diameter(mm)	1.2/0.33*7
Jacket’s material	LSZH/TPU
Reinforcement material	Aramid yarn
Loose tube material	PBT
Loose tube diameter(mm)	1.2(±0.02)mm
Fiber type	G.657.A1/A2 or G.652.D
Cable dimension(mm)	3.5*6.6(±0.1)
Tensile strength(N)	1000

Test

Fiber optic core reflection test is proceed by Optical Time Domain Reflectometer (OTDR). Which is a device used to precisely detect faults in an optical fiber link of a communication networks. An OTDR generates a pulse inside a fiber to be tested for faults or defects. Different events within the fiber create a Rayleigh back scatter. Pulses are returned to the OTDR and their strengths are then measured and calculated as a function of time and plotted as a function of fiber stretch. The strength and returned signal tell about the location and intensity of the fault present. Not only maintenance, but also optical line installation services utilize OTDRs.

OTDR is useful for testing the integrity of fiber optic cables. It can verify splice loss, measure length and find faults. The OTDR is also commonly used to create a "picture" of fiber optic cable when it is newly installed. Later, comparisons can be made between the original trace and a second trace taken if problems arise. Analyzing the OTDR trace is always made easier by having documentation from the original trace that was created when the cable was installed. OTDR show you where the cables are terminated and confirm the quality of the fibers, connections and splices. OTDR traces are also used for troubleshooting, since they can show where breaks are in fiber when traces are compared to installation documentation.

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.

We do this test on every cables we produce.
Our internal laboratory is capable to proceed such a series of standard related type tests.
